Home > Instruments & Meters > Test Instrument > Test Machine > HZ-II Transformer Short Circuit Impedance Test

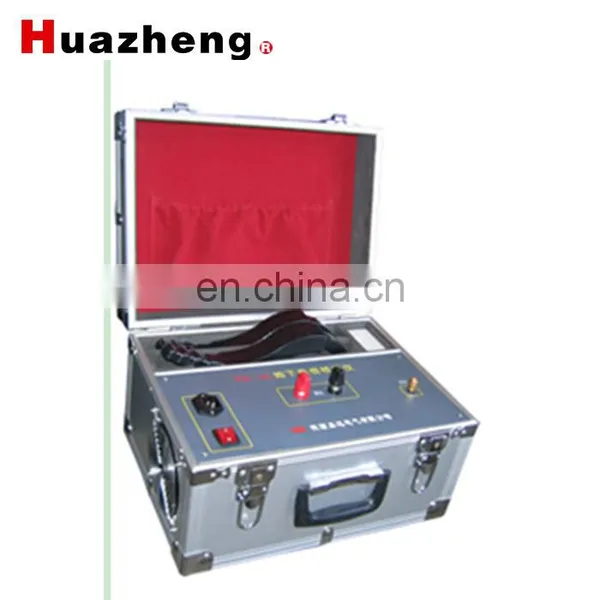

HZ-II Transformer Short Circuit Impedance Test
US$ 360 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Hua Zheng
Place of Origin:
Hebei, China
Model Number:
HZ-II
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin/Transformer Short circuit resistance Test
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zinc Oxide Lightening Arrester Testing Instrument/MOA Tester Lightening Arrester Characteristic TesterUS$ 2,000 - 3,000MOQ: 10 Sets -
1.6kv Lightening Arrester Counter Test Surge Arrester Discharge Counter TesterUS$ 800 - 1,200MOQ: 10 Sets
-
Lightening Protection Counter Test Equipment Handheld Lightening Surge Arrester Discharge CounterUS$ 800 - 1,200MOQ: 10 Sets
-
Three Phase Zinc Oxide Lightening Arrester Discharge Counter TesterUS$ 800 - 1,200MOQ: 10 Sets
-
HuaZheng Electric HZ-20AS Portable Lightening Arrester Characteristic TesterUS$ 2,446 - 2,460MOQ: 10 Sets
Brand Name
Hua Zheng
Place of Origin
Hebei, China
Model Number
HZ-II
Power
Electronic
HZ-II transformer short circuit impedance test
Transformer Short circuit resistance Tester introduction:
Short circuit resistance is an important parameter of the transformer short-circuit impedance method is the traditional method for determining winding deformation, according 1094.5-2003 and 60076-5 : 2000 provides that the amount of change in the short-circuit reactance is an important basis to determine whether the transformer winding deformation
Transformer Short circuit resistance Tester Functions and Features
- Measurable transformer short-circuit impedance, transformer short-circuit impedance, impedance voltage three-phase;
- Can display voltage, current, power, frequency and other parameters of each test;
- Use only single-phase 220V AC power to complete the measurement, in the absence of an AC power source, you can use small power UPS power supply (500VA line can);
- Test power selectable internal and external power supply: internal power supply that instrumentation, external power input by the regulator;
- Wiring is simple and convenient operation, a wiring, a three-phase measurement can be done automatically start directly display the measurement results;
- When using the internal power supply internal automatic control of output voltage and output current, without any auxiliary equipment
- Automatic frequency correction to eliminate errors caused by the frequency fluctuation;
- Store thousands of measurements, the instrument does not power down memory built-in, measurement data can be stored for a long;
Transformer Short circuit resistance Tester Technical Parameters
Measure range Voltage:20~250V
Current:0.2A~10A
Accuracy Voltage ,Current: 0.2
Power: 0.5
Dimensions 350mm×270mm×170mm
Instrument weight 8kg
Transformer Short circuit resistance Tester Conditions of Use
Ambient temperature -10℃~50℃
Humidity ≤85%RH
Power Supply AC220V ± 10%
Power frequency 50 ± 1Hz
