ZGF Intelligent DC hipot tester set for cable testing
MOQ: 1 PC ! The suplier of State Grid ! Standard: CE ISO!

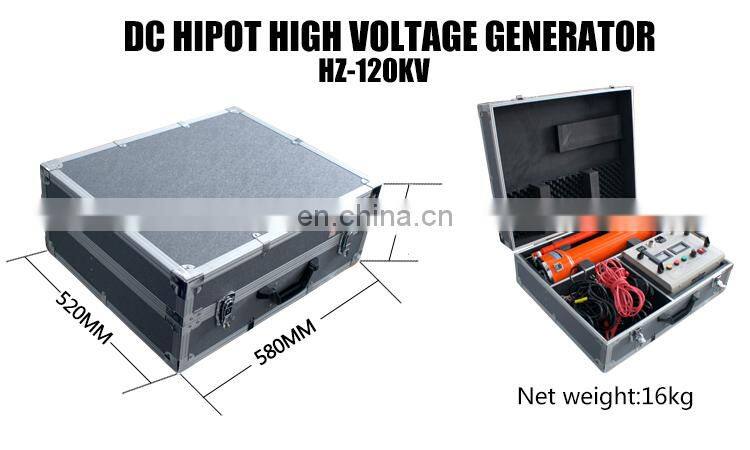

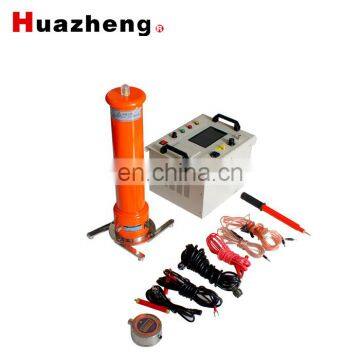

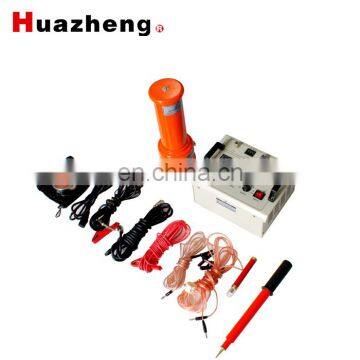

Electrical testing equipment HV DC Impulse Voltage Generator introduction:
HZ-Series DC high voltage generator is based on Chinese industry standard ZBF24003-90 "portable DC high voltage generator general technical conditions" requirements ,research, manufacturing .Applies to the electyicity sector,power sector of industrial enterprises,researsh industitute,railway,chemical,power plants and so on Applies to the electricity sector, power sector industrial enterprises, research institutes, railway, chemical, power plants for the DC high voltage test of zinc oxide surge arresters,surge arresters magnetic blow,power cables,generators,transformers,switchgear and other equipments.
Electrical testing equipment HV DC Impulse Voltage Generator parameters:
| rating output DC voltage(kV) | rating output DC current(mA) | rating output power(W) | doubler reticfier case height(m) | weight(kg) |
HZ-60 | 60 | 2 | 120 | 0.5 | 16 |
60 | 5 | 300 | 0.5 | ||
60 | 10 | 600 | 0.5 | ||
HZ-120 | 120 | 2 | 240 | 0.8 | 20 |
120 | 5 | 600 | 0.8 | ||
120 | 10 | 1200 | 0.8 | ||
HZ-200 | 200 | 2 | 400 | 1.2 | 26 |
200 | 5 | 1000 | 1.2 | ||
200 | 10 | 2000 | 1.2 | ||
HZ-300 | 300 | 2 | 600 | 1.7 | 31 |
300 | 5 | 1500 | 1.7 | ||
300 | 10 | 3000 | 1.7 |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
