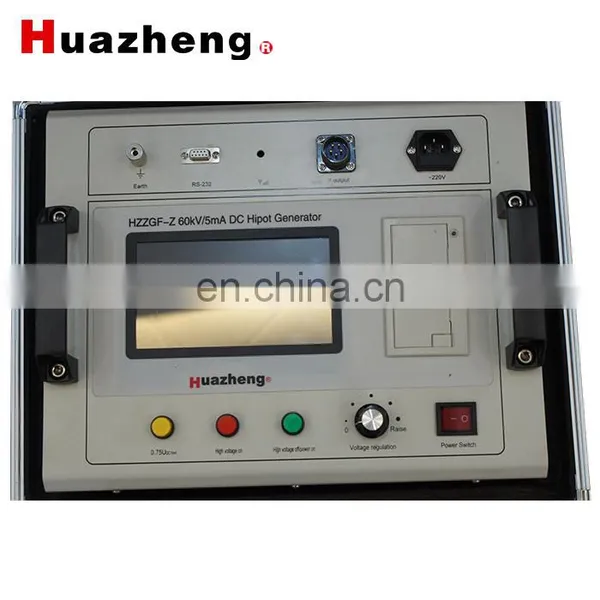

Intelligent Portable DC High Voltage Generator/dc hipot 150kv high voltage tester dc hv hipot tester
I. Product Feature
DC HV generator is widely applied in the DC HV tests carried out for the zinc oxide lightening arrester, magnetic blow-out arrester, power cable, generator, transformer, circuit breaker, etc.
HZZGF-Z intelligent series of DC HV generator has the following main technical characteristics and functions:
1. Use large touch LED screen with human-machine dialogue function;
2. Full-automatic MOA voltage rise measuring function: good repeatability, high accuracy;
3. Automatic voltage rising function: With preset test voltage, the output voltage can be maintained constant;
4. Automatic timing function: Preset the voltage rising time of the standard test voltage, after rising to the standard test voltage, the timing will start automatically, when the timing is completed the voltage will drop automatically;
5. The HV over-voltage setting uses micro-processor for setting, which is highly precise and highly reliable;
6. Preserve the manual test mode;
7. Data storage function: Being able to timely catch the test parameters and automatically preserve the test results;
8. Based on the electromagnetic compatibility theory, use the special shielding, multi-level isolation and grounding and various other protection strategies to form a organized protection combination, during discharging under rated voltage the equipment will not be damaged;
9. HF, ZGF totally intelligent series of DC HV tester possesses the online operation function with built-in online control software. The host computer (such as being equipped with PC) is installed with control software and auxiliary communication cable (optional) which can realize the online control.
|
specification technic parameter |
40/4 |
60/2 |
60/5 |
120/2 |
120/3 |
120/10 |
200/2 |
220/2.5 |
200/10 |
300/2 |
300/3 |
Rated voltage(KV) |
40 |
60 |
60 |
120 |
120 |
120 |
200 |
220 |
200 |
300 |
300 |
Rated current(mA) |
4 |
2 |
5 |
2 |
3 |
10 |
2 |
2.5 |
10 |
2 |
3 |
Rated power(W) |
160 |
120 |
300 |
240 |
360 |
1200 |
400 |
550 |
2000 |
600 |
900 |
Voltage meter precision |
number on voltage meter ±(1.0 %reading±0.2KV) |
||||||||||
Current meter precision |
number on current meter ±(1.0 %reading±0.2KV) |
||||||||||
Ripple coefficient |
≤0.5% |
||||||||||
Voltage stabilization |
stochastic wave ,≤1% when power wave±10% |
||||||||||
Overloading ability |
overstep 10% of rated voltage when loading nothing for ten minutes; the biggest charge current can be 1.5 times of rated current |
||||||||||
power |
single-phase alternating current power of 50HZ 220V±10% |
||||||||||
working |
incontinuous use |
||||||||||
The time should be no more than 30 minutes when continuously use it | |||||||||||
Work condition |
temperature:-10~40℃ |
||||||||||
relative humidity:≤85% when room temperature is 25℃ | |||||||||||
height above sea level:below1500 meters | |||||||||||
capacitance |
capacitance of the tested res is absoluteness |
||||||||||
Can be charged with 1.5 times of rated current | |||||||||||
configuration |
electric insulated Voltage Multiplier is made of epoxy FRP(Fiberglass-Reinforced Plastics) |
||||||||||
Air insulated,without leak | |||||||||||
characteristic of Control box |
One button for high precision of 0.75UDC--1mA(precision≤1.0%)is suit to do zinc oxide lightning arrester test |
||||||||||
overvoltage protection use dialing code set,be clear at a glance | |||||||||||
International standard box withTwo kind of using way(can be take out from the box for using) makes it easy to use. | |||||||||||
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
