AC DC Hipot Tester / Electrical Testing Transformer hipot test kit
- 500 Piece / Pieces per Month
- Tianjin/Shanghai/Ningbo ac dc hipot test
- T/T Credit Card
-
HZYB 100kv 10KVA AC high voltage inflatable testing transformer 100kv hipot test kit
-
ac dc high voltage /hipot test transformer power-frequency withstand voltage tester
-
ZGF Series DC Hipot Tester/high voltage cable testing/digital dc hi pot tester
-
DC High Voltage Power Supply DC 4000kv high voltage generator
-
Hv Hipot Tester DC high voltage tester dc dielectric hipot test system
-
high voltage testing equipment DC Hi pot Tester hv withstand generator
Product Details
| Brand Name: | huazheng | Place of Origin: | Hebei, China | Model Number: | hz |
| Power: | Electronic |
Packaging Details
Inside packing: bubble board
Outside packing: standard box
Customer OEM packing also available">hipot test kit
Inside packing: bubble board
Outside packing: standard box
Customer OEM packing also available
Product Description

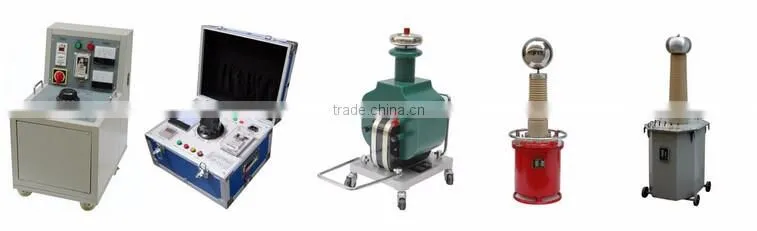

AC DC Hipot Tester / Electrical Testing Transformer hipot test kit
AC DC Hipot Tester / Electrical Testing Transformer classification:
There are four kinds of high voltage testing transformer according to the medium points:
1. Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.
2. Inflatable high voltage test transformer : interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: light weight, light volume, can run backward, price expensive.
4.Series type high voltage testing transformer: small volume, low voltage, light weight, easy to transport and install.
ac and dc hipot
AC DC Hipot Tester / Electrical Testing Transformer Parameter:
Specification | Capacity KVA | Low voltage side | High voltage side | Measuring change | 6min. temperature rise ℃ | Impendence voltage | No-load current | Weight Kg | ||
Voltage V | Current A | Voltage KV | Current mA | |||||||
5/50 | 5 | 200 | 25 | 50 | 100 | 500 | 50 | 10% | <4% | 40 |
10/50 | 10 | 200 | 50 | 50 | 200 | 500 | 50 | 10% | <4% | 60 |
15/50 | 15 | 400 | 37.5 | 50 | 300 | 500 | 50 | 8% | <4% | 70 |
20/50 | 20 | 400 | 50 | 50 | 400 | 500 | 50 | 8% | <4% | 85 |
30/50 | 30 | 400 | 75 | 50 | 600 | 500 | 50 | 8% | <4% | 100 |
50/50 | 50 | 400 | 125 | 50 | 1000 | 500 | 50 | 8% | <4% | 120 |
5/100 | 5 | 200 | 25 | 100 | 50 | 1000 | 50 | 10% | <4% | 50 |
10/100 | 10 | 200 | 50 | 100 | 100 | 1000 | 50 | 10% | <4% | 65 |
15/100 | 15 | 400 | 37.5 | 100 | 150 | 1000 | 50 | 8% | <4% | 85 |
20/100 | 20 | 400 | 50 | 100 | 200 | 1000 | 50 | 8% | <4% | 100 |
30/100 | 30 | 400 | 75 | 100 | 300 | 1000 | 50 | 8% | <4% | 110 |
50/100 | 50 | 400 | 125 | 100 | 500 | 1000 | 50 | 8% | <4% | 125 |
10/150 | 10 | 200 | 50 | 100 | 66.7 | 1500 | 50 | 10% | <4% | 90 |
15/150 | 15 | 400 | 37.5 | 150 | 100 | 1500 | 50 | 8% | <4% | 100 |
20/150 | 30 | 400 | 50 | 150 | 133.3 | 1500 | 50 | 8% | <4% | 110 |
30/150 | 30 | 400 | 75 | 150 | 200 | 1500 | 50 | 8% | <4% | 125 |
50/150 | 50 | 400 | 125 | 150 | 333.3 | 1500 | 50 | 8% | <4% | 14 |
AC DC Hipot Tester / Electrical Testing Transformer Control part Parameter:
Type | Assorted YDQ(KVA) | Voltage regulator for capacity(KVA) | The run time of a complete set(min) |
XCJH -3 | 3 | 2 | ≤30 |
XCJH -5 | 5 | 3 | ≤30 |
TCWJH-10 | 10 | 7 | ≤30 |
TCWJH-20 | 20 | 14 | ≤30 |
TCWJH-30 | 30 | 20 | ≤30 |
TCWJH-50 | 50 | 30 | ≤30 |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
Company Profile
Huazheng Electric Manufacturing (baoding) Co., Ltd. is established in year of 2008, located at Baoding city, Hebei province, China. It is a professional company specializing in the development and production of electric power testing equipment. Main products are transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc. All of our products comply with international quality standard and obtained CE and ISO 9001 certificate. Our products are exported to over 100 countries and regions , and cooperate with some well-known enterprise in the world such as Ausgrid and Orient Oils, etc. We are dedicated to making HUAZHENG brand an industry benchmark in order to realize the dream of the HUAZHENG brand and serve the global clients. You are warmly welcome to visit Huazheng company!
