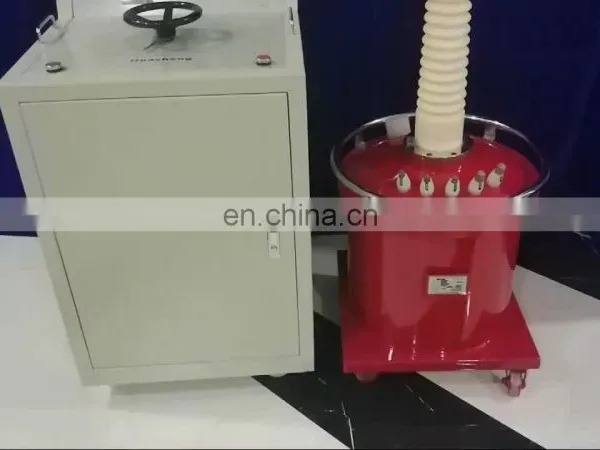

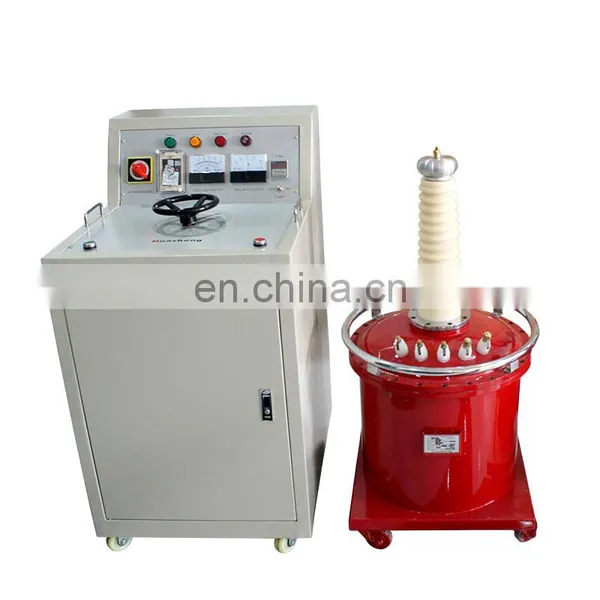

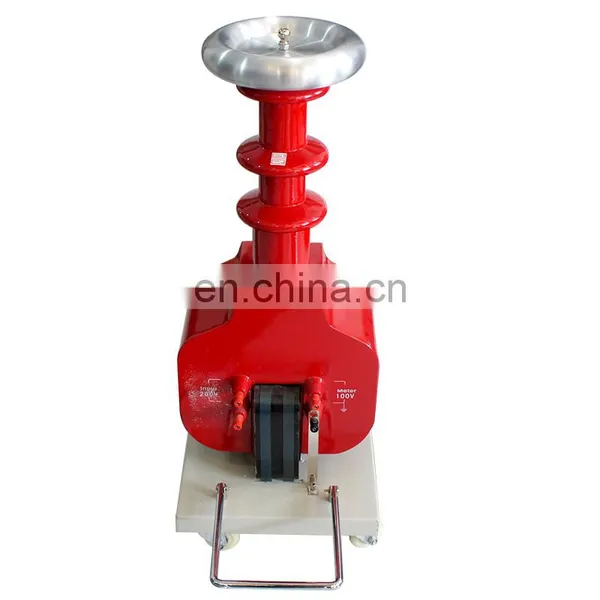

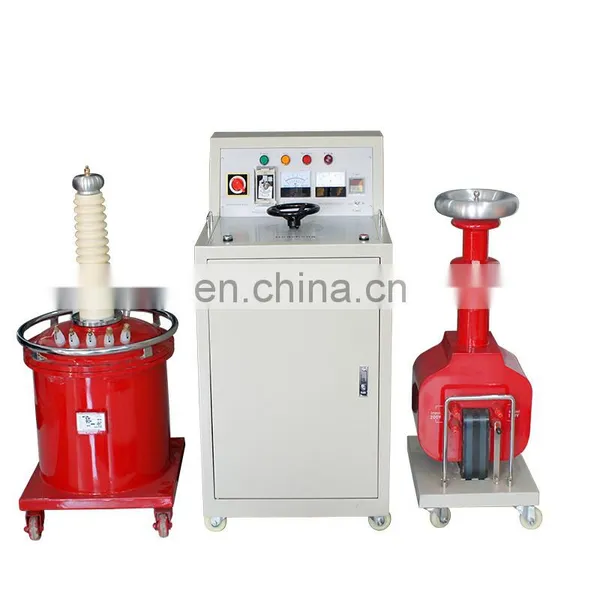

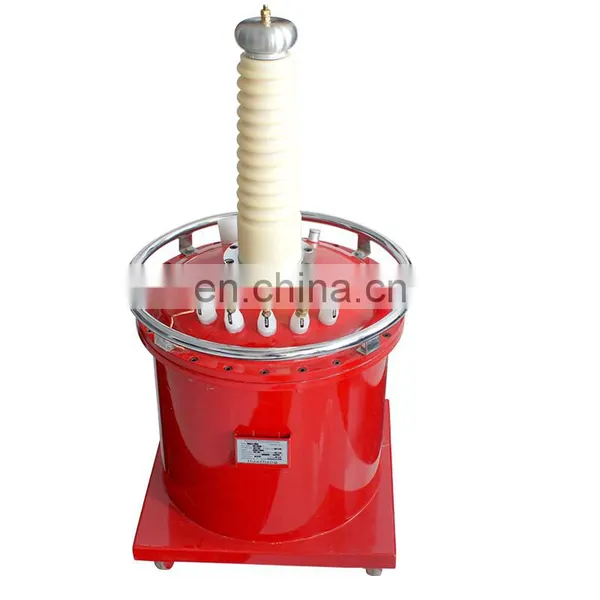

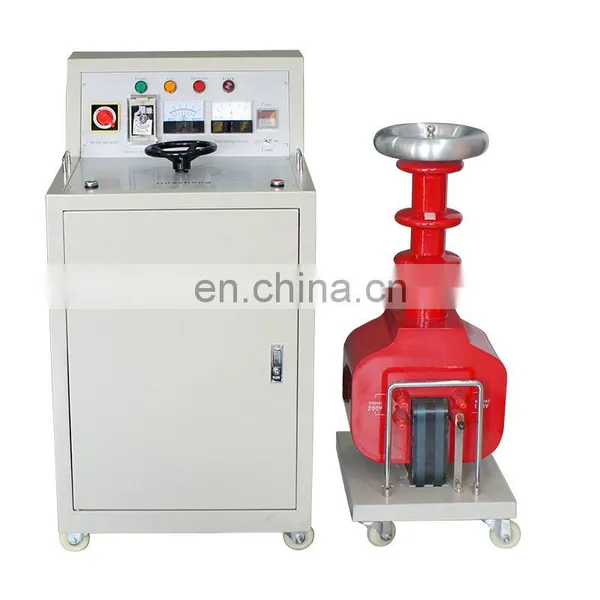

30kv high voltage SF6 testing transformer AC DC hipot tester

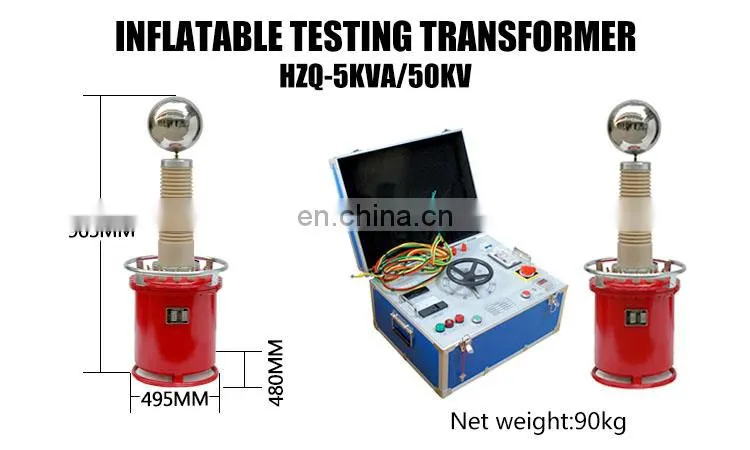

HZQ(c)-5KVA/100KV inflated type testing transformer | high voltage ac test transformer classification:
HZQ(c)-5KVA/100KV inflated type testing transformer | high voltage ac test transformer Parameter:
Specification |
Capacity KVA |
Low voltage side |
High voltage side |
Measuring change |
6min. temperature rise ℃ |
Impendence voltage |
No-load current |
Weight Kg |
||
|
Voltage V |
Current A |
Voltage KV |
Current mA |
|||||||
5/50 |
5 |
200 |
25 |
50 |
100 |
500 |
50 |
10% |
<4% |
40 |
10/50 |
10 |
200 |
50 |
50 |
200 |
500 |
50 |
10% |
<4% |
60 |
15/50 |
15 |
400 |
37.5 |
50 |
300 |
500 |
50 |
8% |
<4% |
70 |
20/50 |
20 |
400 |
50 |
50 |
400 |
500 |
50 |
8% |
<4% |
85 |
30/50 |
30 |
400 |
75 |
50 |
600 |
500 |
50 |
8% |
<4% |
100 |
50/50 |
50 |
400 |
125 |
50 |
1000 |
500 |
50 |
8% |
<4% |
120 |
5/100 |
5 |
200 |
25 |
100 |
50 |
1000 |
50 |
10% |
<4% |
50 |
10/100 |
10 |
200 |
50 |
100 |
100 |
1000 |
50 |
10% |
<4% |
65 |
15/100 |
15 |
400 |
37.5 |
100 |
150 |
1000 |
50 |
8% |
<4% |
85 |
20/100 |
20 |
400 |
50 |
100 |
200 |
1000 |
50 |
8% |
<4% |
100 |
30/100 |
30 |
400 |
75 |
100 |
300 |
1000 |
50 |
8% |
<4% |
110 |
50/100 |
50 |
400 |
125 |
100 |
500 |
1000 |
50 |
8% |
<4% |
125 |
10/150 |
10 |
200 |
50 |
100 |
66.7 |
1500 |
50 |
10% |
<4% |
90 |
15/150 |
15 |
400 |
37.5 |
150 |
100 |
1500 |
50 |
8% |
<4% |
100 |
20/150 |
30 |
400 |
50 |
150 |
133.3 |
1500 |
50 |
8% |
<4% |
110 |
30/150 |
30 |
400 |
75 |
150 |
200 |
1500 |
50 |
8% |
<4% |
125 |
50/150 |
50 |
400 |
125 |
150 |
333.3 |
1500 |
50 |
8% |
<4% |
14 |

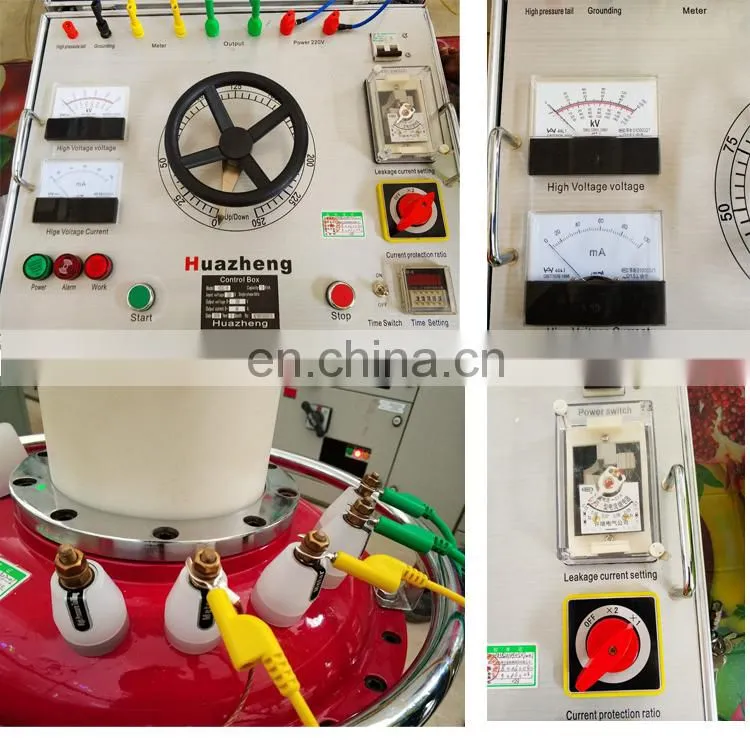

Control part Parameter:
Type |
Assorted YDQ(KVA) |
Voltage regulator for capacity(KVA) |
The run time of a complete set(min) |
XCJH -3 |
3 |
2 |
≤30 |
XCJH -5 |
5 |
3 |
≤30 |
TCWJH-10 |
10 |
7 |
≤30 |
TCWJH-20 |
20 |
14 |
≤30 |
TCWJH-30 |
30 |
20 |
≤30 |
TCWJH-50 |
50 |
30 |
≤30 |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
