high Current 1000A Primary Current Injection Test Set high voltage primary injection test test kit
I. Overview

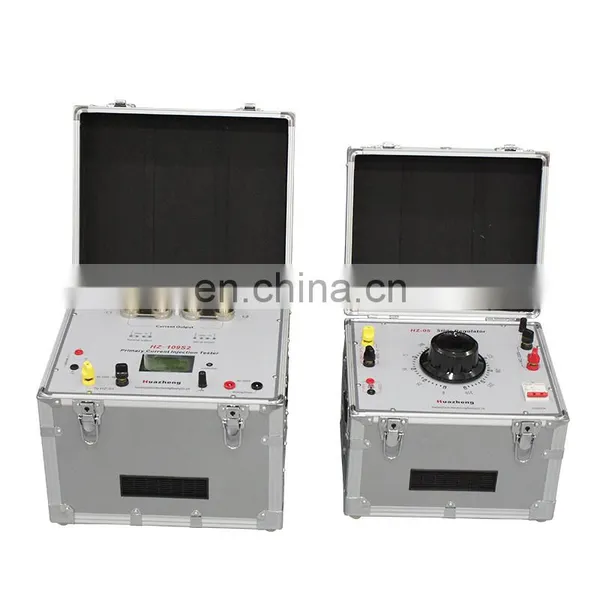

Adopted technology of ARM chip controlling output and toroidal transformer with high-capacity and equipped with LCD display meter, the HZ-109S2 Primary Current Injection Tester could simultaneously display primary current, secondary current and turn ratio. The product possesses the characteristics of nice appearance, large output capacity, small size, light weight and so on with external aluminum alloy case and PC panel. It is mainly suited for CT turn ratio and contact resistance tests of power system and other occasions needed high current test.
II. The Main Performance Index
2.1 Input Power Supply: AC:220V·50A,50Hz.
2.2 Output Current: AC:2000A·6V or 1000A·12V.
2.3 LCD Screen Digital Display: Simultaneous display of primary current and secondary current as well as the turn ratio;
The Range of Primary Current: 0~2200A, Resolution:0.1A;
The Range of Secondary Current: 0~6A; Resolution:0.001A.
2.4 Precision: TRUE RMS ±0.5%.
2.5 Usage Environment: Temperature -10~40℃,
Relative humidity <80%.
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
