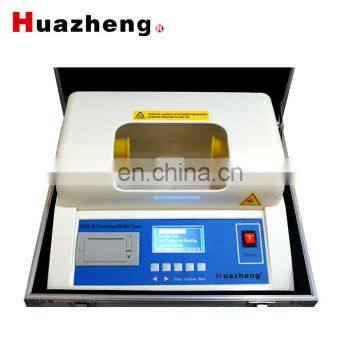

Hot sale 0-80Kv Oil Analysis testing equipment portable transformer insulating oil breakdown voltage tester
More Names:
Insulating oil tester; Dielectric Strength Tester; Transformer Insulating Oil Dielectric Strength Tester; oil breakdown test; Oil test instrument;
Brief introduction:
Our transformer oil breakdown voltage tester is used for testing the dielectric strength of insulating oil used in Transformer, Circuit breaker
transformer oil breakdown voltage tester Features & Advantages:
1. Three or single oil cup structure, controlled by computer, can automatically done boost, keep,
step-down, stirring, static put, display calculation, printing, and so on a series of operation, suitable from
0-80 kV within the insulating oil pressure test.

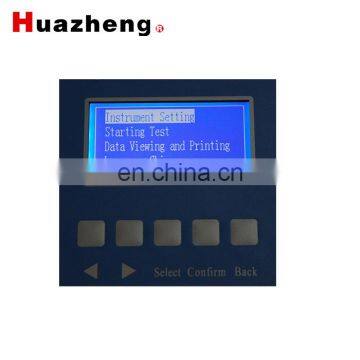

2. The big screen dot matrix LCD monitor, test process through the Chinese/English menu hint, convenient test personnel operating.
3. With strong anti-jamming ability, can work as normal under strong electromagnetic field environment.
4. With pressure, flow, automatic back to zero and grounded protection device, ensure the safety of the
instrument itself and the operators.
5. Speed boost and stewing, interval time according to different experiment standard options
6. The instrument is also compatible with National Standard 2002 edition and 1986 edition, it's available that
according to the requirements from the definition test conditions.
transformer oil breakdown voltage tester technical parameter:
|
|
Test Voltage:0-80KV (optional) Voltage Distortion Rate:<3% Boost Speed:2 to 3.5KV/S (adjustable) Static discharge time:15minutes (adjustable) Boost interval:5 minutes (adjustable) Boost number:1 to 6 times (adjustable) Power Supply:AC110/220V ±10%; 50/60Hz ±1 Hz Power:200W Environmental Temperature:0~45 °C Environmental Humidity:<85% RH |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
