Automatic Online Oil Water Content Tester/karl fischer moisture meter transformer oil water content testing
1.portable oil in water analyzer Description
It is based on Karl Fischer Coulometric titration principle, accurate determination of liquids, solids, gases trace moisture ,used in the electricity, petroleum, chemical, pharmaceutical, food and other industries.
2.portable oil in water analyzer Features
1.Used 240*128 graphic dot matrix liquid crystal.
2.Low Power Consumption.
3.High-precision, and it has a strong anti-jamming capability.
4.Three formulas for users to choose, automatically calculate the moisture content.
5.Automatic detection function
6.Automatically stored with time stamp historical records, store up to 255.
7.With screen protection function.
8.USB interface
3.portable oil in water analyzer Technical Data
Titration method |
Coulometric titration(Coulomb analysis) |
Display |
Color LCD touch screen |
Electrolytic current control |
0~400mA automatic control |
Measurement scope |
3ug~100mg |
Sensitive valve |
0.1µg H2O |
|
Accuracy
|
10µg~1000µg±3µg ,More than 1mg but not greater than 0.3% |
Printer |
Miniature thermal printer |
Power supply |
220V±10%,50Hz |
Power |
< 40W |
Ambient temperature |
5~40℃ |
Ambient humidity |
≤ 85% |

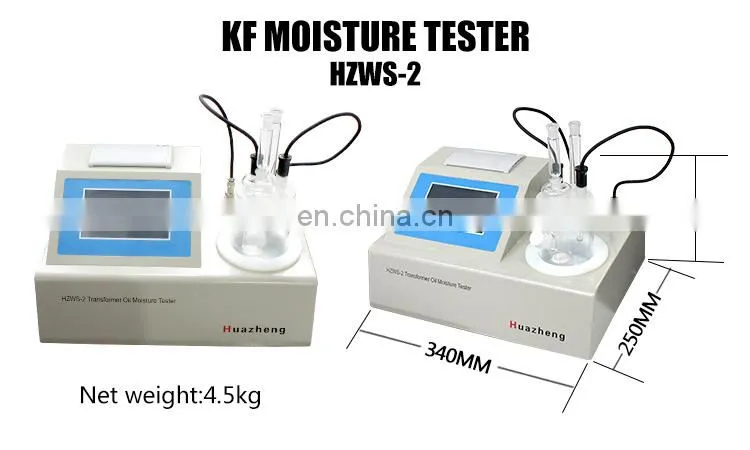

External dimension |
340*295*155 |
Weight |
About 5.5kg |
4. STRUCTURE CHARACTERISTICS

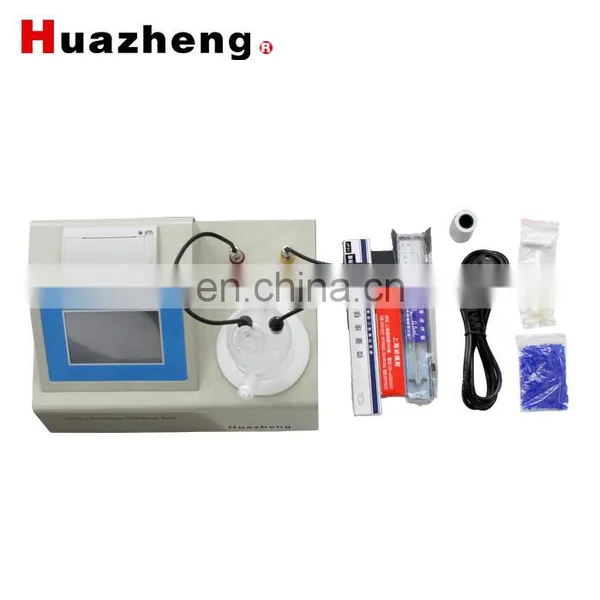

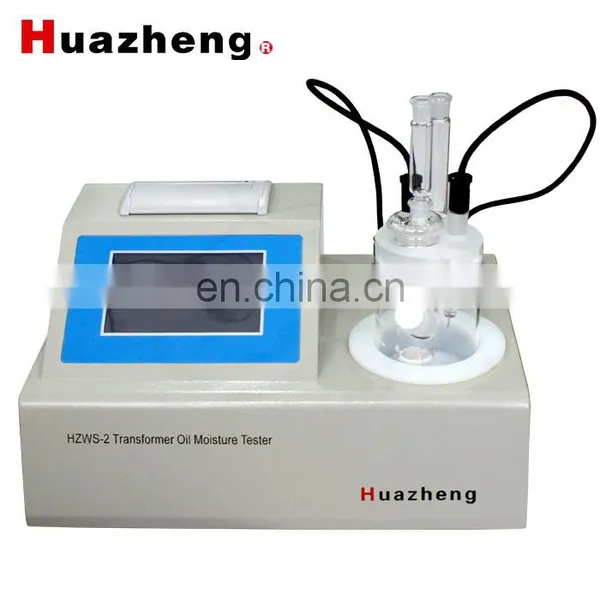

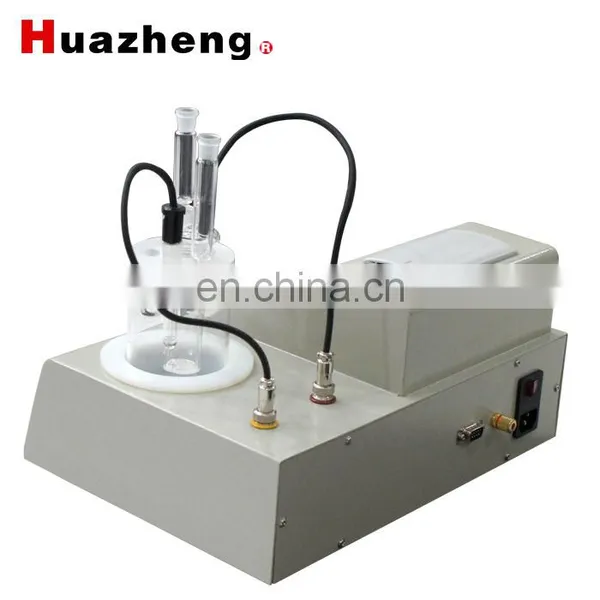

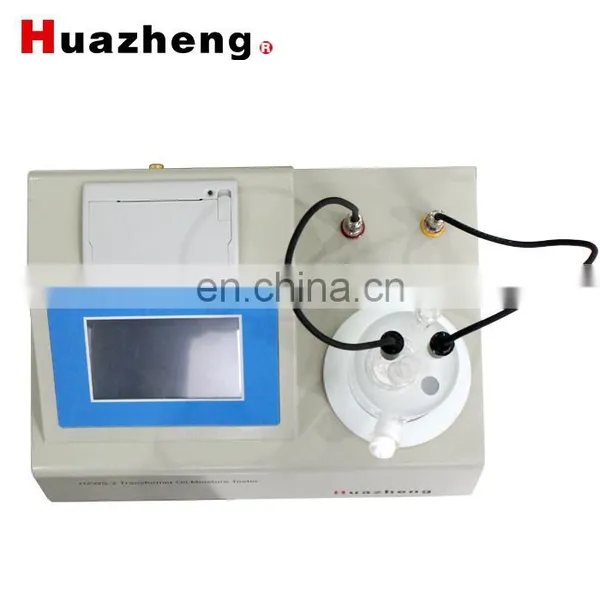

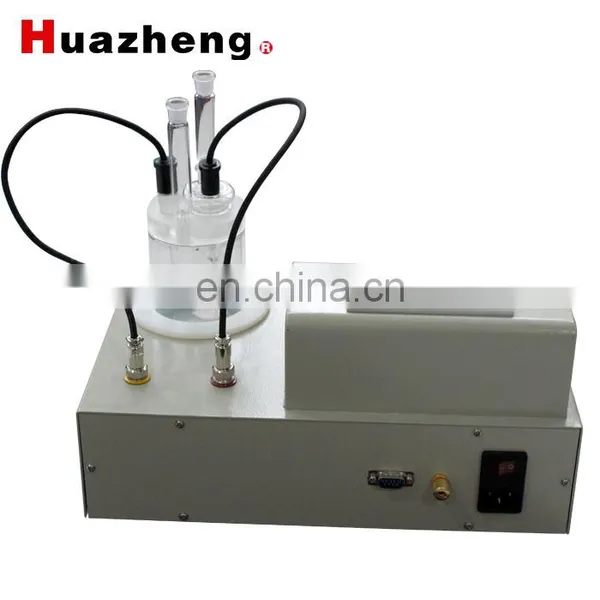

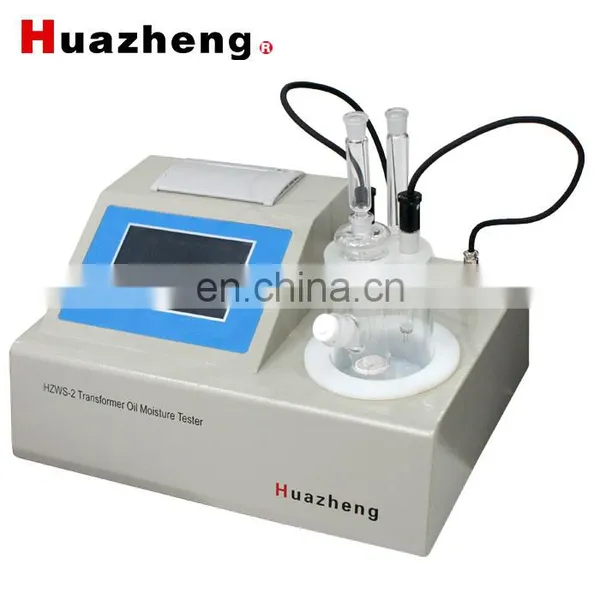

Mainframe of instrument(please see figure 1 and 2):
1. Color touch screen 2. Printer
3. Electrolytic electrode socket 4. Measuring electrode socket
5. Fixed shaft mounting holes 6. Electrolytic tank socket
7.RS232 Interface 8. Power socket and integrated switch
Electrolytic tank schematic diagram:
(1)Grinding plug (2)Cathode compartment (3)Drying tube (4)Sample cock (5)Stirrer (6)Measuring electrode (7)Electrolytic electrode
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
