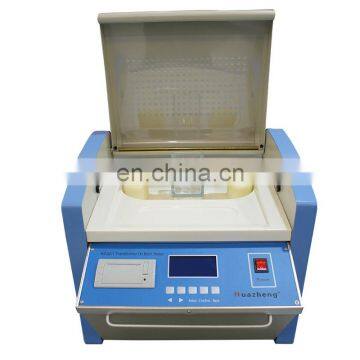

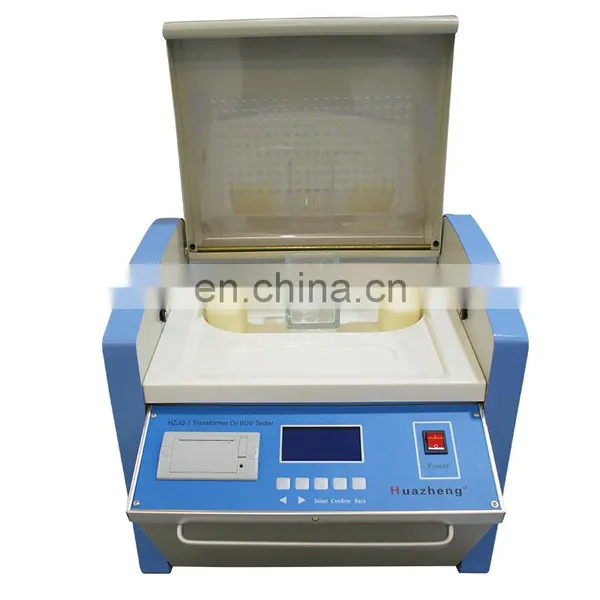

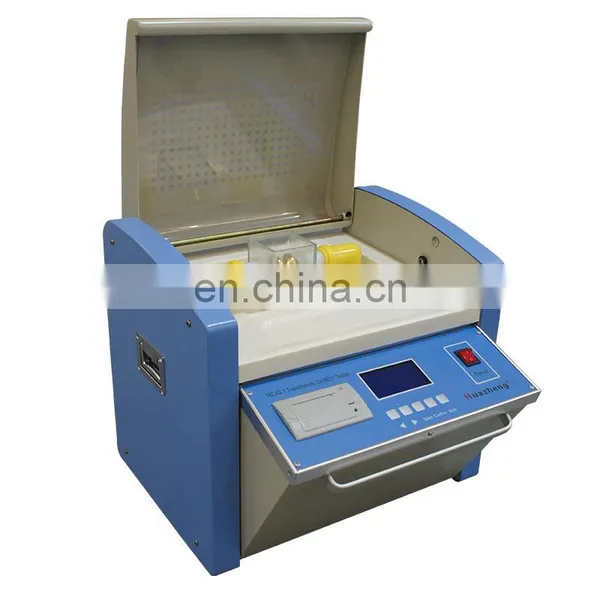

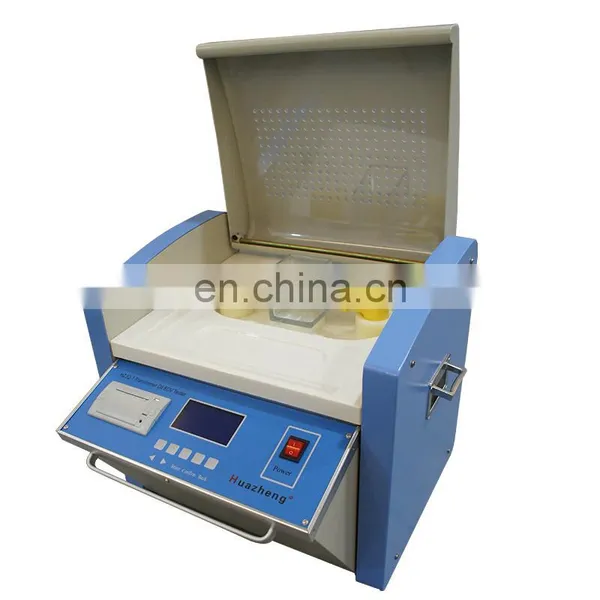

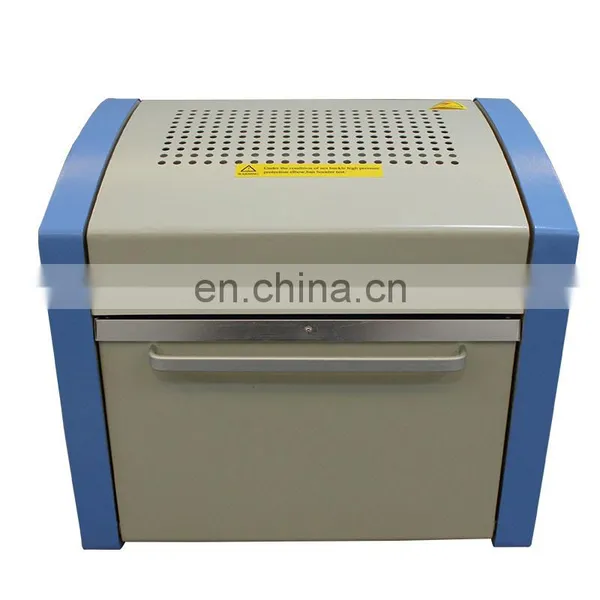

lab equipment HZJQ-1 portable transformer oil dielectric strength test 100kv dielectric breakdown tester
1. oil analysis test kit Product Description
It is testing all kinds of Insulation Oil's Dielectric Strength Value.
2. oil analysis test kit Product Features
1.Automatic test system,safe and clean.
2.Large-screen LCD
3.It is suitable by the function of adjustable.
4.Equipped with over-voltage, over-current and limit protections.
5.Measured temperature and system clock.
6.RS232 interface,can connect with computer.
7.Power-down preservation. It can save 100 tested results and displaying current ambient temperature and humidity.
3. oil analysis test kit Technical Data
Output Voltage | 0~80KV (optional) |
Voltage Distortion Rate | <3% |
Voltage Raising Speed | 0.5~5 KV/S (adjustable) |
Standing Time | 15min (adjustable) |
Boosting Interval | 5 min (adjustable) |
Boosting Frequency | 1~6 time(s) |
Booster Capacity | 1.5KVA |
Measuring Accuracy | ±3% |
Supply Voltage | AC220V±10% 50Hz±1 Hz |
Power | 200W |
Applicable Temperature | -0℃~45℃ |
Applicable Humidity | ≤75%RH |
Dimension | 465*385*425mm |
Packing Size | 665*485*630mm |
Gross Weight | 40kg |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
