Thrust Needle Roller Bearing AXK 4060 plastic machinery bearing
The thrust needle roller bearing or thrust parallel roller bearing is such a manner that the needles (rollers) with cage are set up in
the space between rollway and collar and the cage reliably guides and clamps a lot of rolling bodies. There is a little difference among
the rolling bodies in the same set. The thrust needle roller bearing or thrust parallel roller bearing is the one only supporting the axial
load in one direction. It is used as the bearing allocation having the good rigidity and axial small space.
| Shaft Diameter(mm) | 40 |
| Bearing Designation | AXK4060 |
| Mass(g) | 16 |
| Dc1(mm) | 40 |
| Dc(mm) | 60 |
| Dw(mm) | 3 |
| Cr Dynamic(N) | 27500 |
| Cor Static(N) | 113500 |
| Oil(rpm) | 4700 |
Structure and Features
Thrust Bearings consist of a precisely made
cage and rollers. They have high rigidity and high load
capacities and can be used in small spaces.
Thrust Needle Roller Bearings incorporate needle
rollers, while Thrust Roller Bearings incorporate cylindrical rollers. Various types of raceway rings are
available, and suitable bearings can be selected
according to the operating conditions.
When the bearing mounting surfaces of a machine
are heat-treated and finished by grinding as raceways, Thrust Bearings can be used without raceway
rings allowing the machine to be made more compact.
They are most suited to applications where high accuracy is required at high speeds and under fluctuating
heavy loads, such as driving mechanisms for automobiles, machine tools, and high-pressure pumps
Thrust Needle Roller Bearings
These bearings consist of a cage made from a steel
plate, which is precisely press formed and surfacehardened, and needle rollers with a diameter variation
within 2μm. They have a rigid structure and a high
lubricant-retaining capacity.
As they have the lowest sectional height compared
with other thrust bearings, they can be used instead
of conventional thrust washers and can withstand
high-speed rotations with a low coefficient of friction.
Specially designed thin inner rings (WS) and outer
rings (GS), and especially thin (1 mm thick) thrust
washers (AS), are available for use in various applications.
These bearings are generally used by utilizing their
inner surface as the guide surface
Thrust Needle Roller Bearing AXK 4060 plastic machinery bearing dimension:
Specifications
The main needle roller bearing catalogue in our comopany:
1. Drawn Cup Needle Bearing: HK, BK, inch seires
2. Needle Bearing with Inner Ring: NA49,NA69, NKI series
3. Needle Bearing without Inner Ring: NK, RNA series
4. Full Complement Needle Bearing: HFseries
5. Radial Needle Roller and Cage Assemblie: K series
6. Thrust Needle Roller and Cage Assemblies: AXK, AS series
Production range
| Drawn cup needle roller clruches | HF / HF..KF/HF..R/HFL/RCB/FCB/NHF |
| Mertic and inch drawn cup caged needle roller bearings | BK/HK/BK..RS/HK..RS/HK..2RS |
| Thrust needle roller bearing and cage assemblies/thrust cylindrical roller bearing | AXK/AX/AXW/AS/K811 K812/LS/GS |
| Radial needle roller and cage assemblies | K/KK/KZK/KBK |
| Radial needle roller bearings | NKI/NKIS/NA/NK/NKS/NA49..RS/RNA49..RS |
| Drawn cup line ball bearing | KH..2RS/KH |
| Yoke type track rollers/stud type track rollers | NATV/NATR/KR/KRV |
| Clutch bearing EWCseries/clutch bearing 1wc series | EWC/1WC |
| Needel roller -cylindrical roller thrust bearings | RAX700/RAXF700/RAX400/RAX500 |
| Combined radial thrust bearings | ZARN/ZARF/ZARF..L |
| Single-direction load capailitya | NKIA |
| Needle rollers | NR(A SERIES) NR(B SERIES) |
| Inner ring | IR LR |
Thrust Needle Roller Bearing AXK 4060 plastic machinery bearing catalog:
| Shaft | Designation | Mass | Thrust | Mass | Dimensions | Basic Load Ratings | Limiting | Original | ||||
| Diameter | Washer | Dc1 | Dc | Dw | B1 | Cr | Cor | Speed | Designation | |||
| d | D | Dynamic | Static | |||||||||
| mm | g | g | min. | kN | kN | rpm | ||||||
| 15 | AXK 1528 | 4 | AS 1528 | 3 | 15 | 28 | 2 | 1 | 11.3 | 36.0 | 3600 | 889102 |
| 17 | AXK 1730 | 4 | AS 1730 | 4 | 17 | 30 | 2 | 1 | 11.9 | 39.5 | 3200 | 889103 |
| 20 | AXK 2035 | 5 | AS 2035 | 5 | 20 | 35 | 2 | 1 | 13.1 | 46.5 | 3100 | 889104 |
| 25 | AXK 2542 | 7 | AS 2542 | 7 | 25 | 42 | 2 | 1 | 14.7 | 58.0 | 2800 | 889105 |
| 30 | AXK 3047 | 8 | AS 3047 | 8 | 30 | 47 | 2 | 1 | 16.3 | 70.0 | 2300 | 889106 |
| 35 | AXK 3552 | 10 | AS 3552 | 9 | 35 | 52 | 2 | 1 | 17.8 | 81.0 | 2000 | 889107 |
| 40 | AXK 4060 | 16 | AS 4060 | 12 | 40 | 60 | 3 | 1 | 28.0 | 114.0 | 1700 | 889108 |
| 45 | AXK 4565 | 18 | AS 4565 | 13 | 45 | 65 | 3 | 1 | 30.0 | 128.0 | 1500 | 889109 |
| 50 | AXK 5070 | 20 | AS 5070 | 14 | 50 | 70 | 3 | 1 | 32.0 | 143.0 | 1400 | 889110 |
| 55 | AXK 5578 | 28 | AS 5578 | 18 | 55 | 78 | 3 | 1 | 38.0 | 186.0 | 1200 | 889111 |
| 60 | AXK 6085 | 33 | AS 6085 | 22 | 60 | 85 | 3 | 1 | 44.5 | 234.0 | 1100 | 889112 |
| 65 | AXK 6590 | 35 | AS 6590 | 24 | 65 | 90 | 3 | 1 | 46.5 | 255.0 | 1000 | 889113 |
| 70 | AXK 7095 | 60 | AS 7095 | 25 | 70 | 95 | 4 | 1 | 54.0 | 255.0 | 1000 | 889114 |
| 75 | AXK 75100 | 61 | AS 75100 | 27 | 75 | 100 | 4 | 1 | 55.0 | 265.0 | 950 | 889115 |

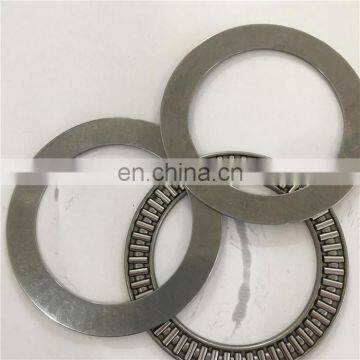

Thrust Needle Roller Bearing AXK 4060 plastic machinery bearing pictures:
4.jinan kelunte bearing packing and shipping.
1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton
2. Commercial packing: 1pc/plastic bag + color box + carton
3. As the clients' requirement
Jinan kelunte bearing Co., Ltd. keep improving and do our best to serve you.
1. OEM and ODM bearing assembly are welcome!
2. Online 24 hours
3. Free sample
