Help CenterSliding Contact Bearing Gliding Bearing Linear Bearing Block SC8UU SC10UU SCS10UU SC12UU
Related Products
-
Linear Bearing Shaft 25mm Linear Ball Bearing LM25uu 25*40*59US$ 0.69 - 25MOQ: 100 Pieces -
Plastic Linear Ball BearingUS$ 0.5 - 10MOQ: 100 Pieces
-
Chrome Steel Bearing Balls in All SizesUS$ 0.12 - 0.35MOQ: 10 Pieces
-
High Performance Fishing Reel Bearing Fishing Ball Bearings MR85 ZZ RS 5x8x2 mmUS$ 0.1 - 0.7MOQ: 1 Set
-
High Performance Fishing Reel Bearing Fishing Ball Bearings MR105 ZZ RS 5x10x3 mmUS$ 0.1 - 0.7MOQ: 1 Set
Linear bearing block

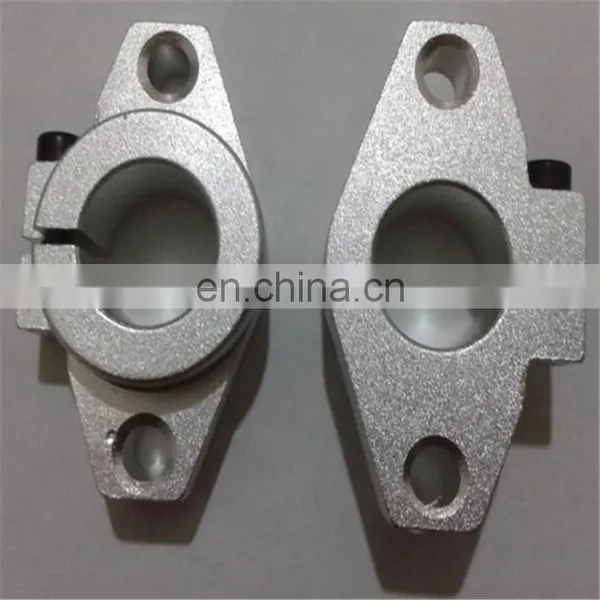

shaft support bearing
Shaft support blocks are used for end or intermittent support where loads are light and sli
ght shaft deflection is not a concern. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type ball bushing bearings. Shaft support blocks enable clamping of shafts, type SB and eliminate the need for bolts to maintain shaft position. Shimming is suggested for high precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.
1.MSA series : MSA-A/MSA-LA,MSA-E/MSA-LE,MSA-S/MSA-LS
| MSA 15A | MSA 20A | MSA 20LA | MSA 25A | MSA 25LA | MSA 30A | MSA 30LA | MSA 35A | MSA 35LA | MSA 45A |
| MSA 45LA | MSA 15E | MSA 20E | MSA 20LE | MSA 25E | MSA 25LE | MSA 30E | MSA 30LE | MSA 35E | MSA 35LE |
| MSA 45E | MSA 45LE | MSA 55E | MSA 55LE | MSA 65E | MSA 65LE | MSA 15S | MSA 20S | MSA 20LS | MSA 25S |
| MSA 25LS | MSA 30S | MSA 30LS | MSA 35S | MSA 35LS | MSA 45S | MSA 45LS | MSA 55S | MSA 55LS | MSA 65S |
2.MSB series: MSB-TE/MSB-E,MSB-TS/MSB-S
| MSB 15TE | MSB 15E | MSB 20TE | MSB 20E | MSB 25TE | MSB 25E | MSB 30TE | MSB 30E | MSB 15TS | MSB 15S |
| MSB 20TS | MSB 20S | MSB 25TS | MSB 25S | MSB 30TS | MSB 30S | MSB 35S | MSB 35LS |
3.MSR series: MSR-E/MSR-LE,MSR-S/MSR-LS
| MSR 25E | MSR 25LE | MSR 30E | MSR 30LE | MSR 35E | MSR 35LE | MSR 45E | MSR 45LE | MSR 55E | MSR 55LE | MSR 65LE |
| MSR 25S | MSR 25LS | MSR 30S | MSR 30LS | MSR 35S | MSR 35LS | MSR 45S | MSR 45LS | MSR 55S | MSR 55LS | MSR 65LS |
4.MSC series: MSC-M/MSC-LM
| MSC 7M | MSC 7LM | MSC 9M | MSC 9LM | MSC 12M | MSC 12LM | MSC 15M | MSC 15LM |
5.SME series: SME-EA/SME-LEA,SME-EB/SME-LEB,SME-SA/SME-LSA,SME-SB/LSB SME-SV/LSV
| SME 15EA | SME 15LEA | SME 20EA | SME 20LEA | SME 25EA | SME 25LEA | SME 30EA | SME 30LEA | SME 35EA | SME 35LEA |
| SME 45EA | SME 45LEA | SME 15EB | SME 15LEB | SME 20EB | SME 20LEB | SME 25EB | SME 25LEB | SME 15SA | SME 15LSA |
| SME 20SA | SME 20LSA | SME 25SA | SME 25LSA | SME 30SA | SME 30LSA | SME 35SA | SME 35LSA | SME 45SA | SME 45LSA |
| SME 15SB | SME 15LSB | SME 20SB | SME 20LSB | SME 25SB | SME 25LSB | SME 25SV | SME 25LSV | SME 30SB | SME 30LSB |
| SME 35SB | SME 35LSB | SME 45SB | SME 45LSB | SME 15SB | SME 15LSB | SME 20SB | SME 20LSB | SME 25SB | SME 25LSB |
| SME 25SV | SME 25LSV | SME 30SB | SME 30LSB | SME 35SB | SME 35LSB | SME 45SB | SME 45LSB |
6.SMR series: SMR-E/SME-LE,SMR-S/SME-LS
| SMR 25E | SMR 25LE | SMR 30E | SMR 30LE | SMR 35E | SMR 35LE | SMR 45E | SMR 45LE | SMR 55E | SMR 55LE | SMR 65LS |
| SMR 65LE | SMR 25S | SMR 25LS | SMR 30S | SMR 30LS | SMR 35S | SMR 35LS | SMR 45S | SMR 45LS | SMR 55S | SMR 55LS |
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |

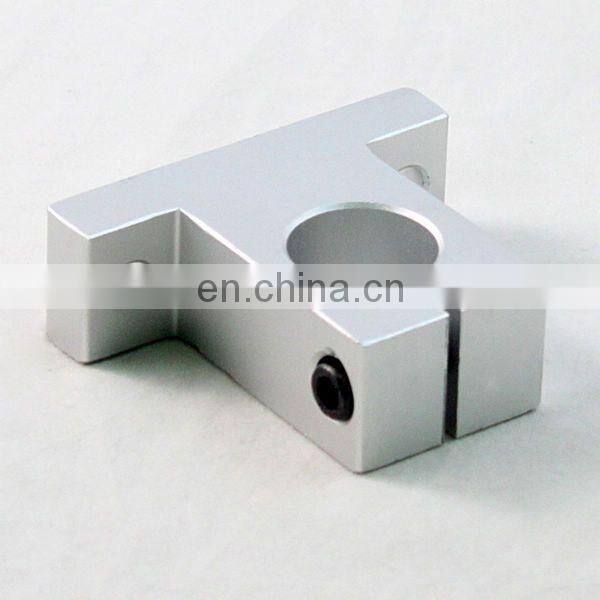

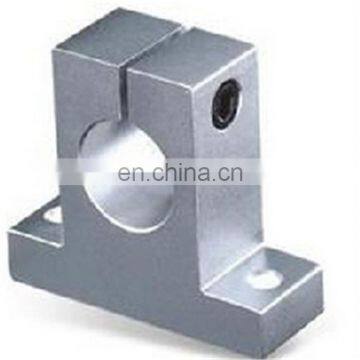

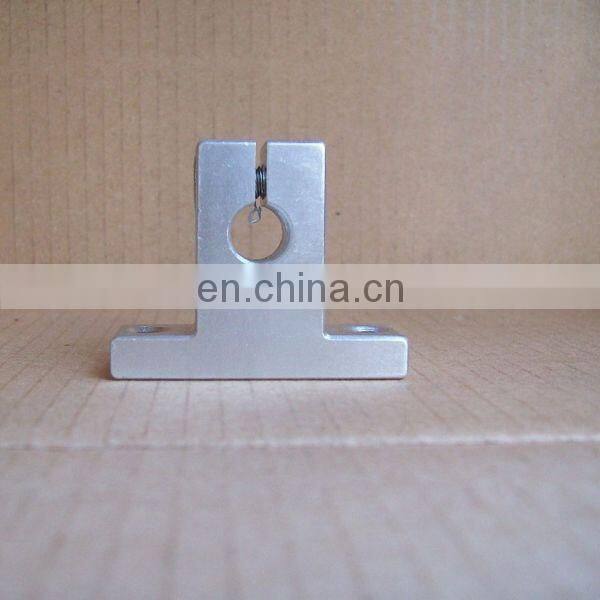

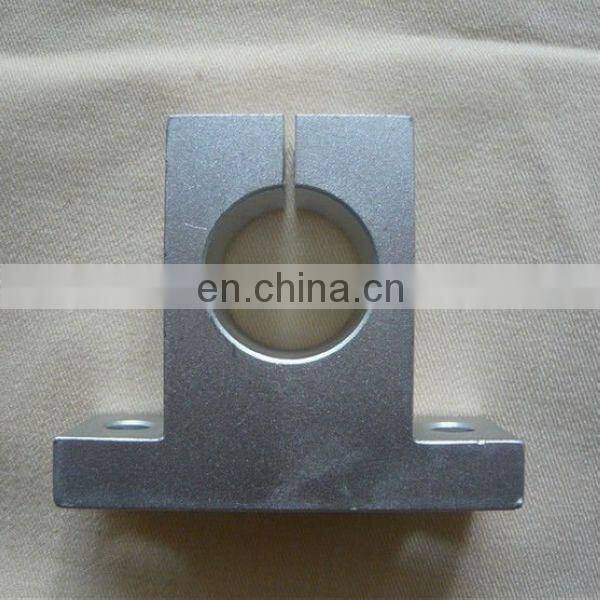

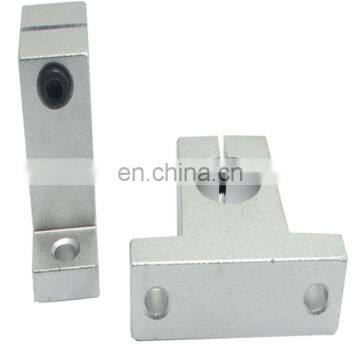

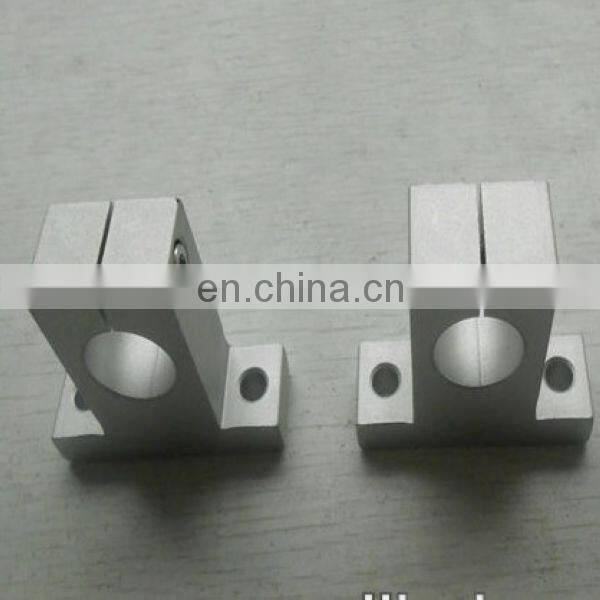

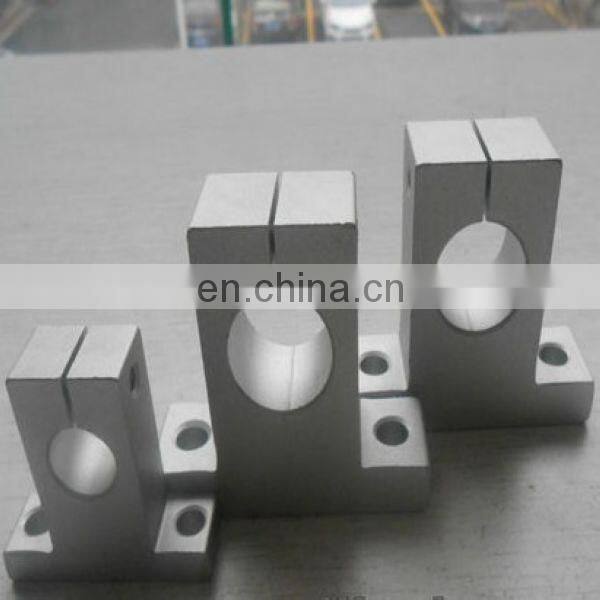

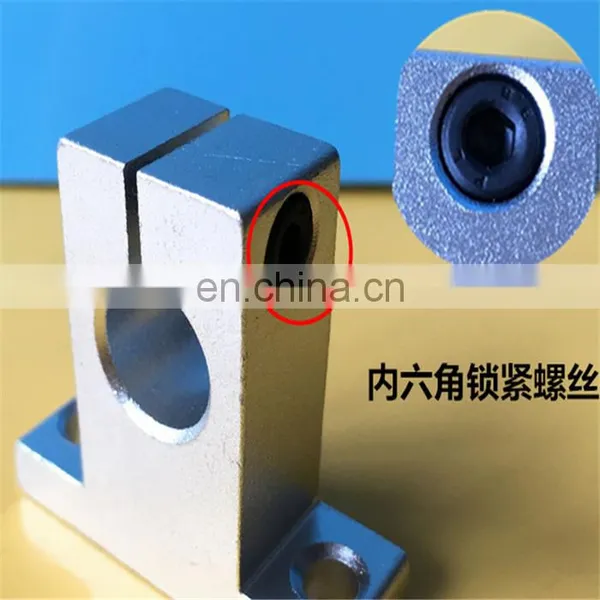

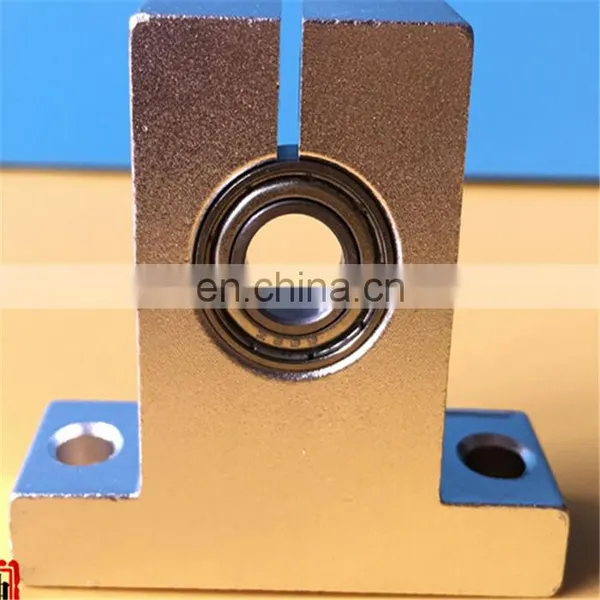

Linear rail bearing shaft support unit
| Shaft support unit-SK Series | ||||
| Model | Shaft | Clamping | Mounting | Mass |
| no. | Dia(mm) | bolt | bolt | (g) |
| SK3 | 3 | M4 | M5 | 24 |
| SK4 | 4 | M4 | M5 | 24 |
| SK5 | 5 | M4 | M5 | 24 |
| SK6 | 6 | M4 | M5 | 24 |
| SK8 | 8 | M4 | M5 | 24 |
| SK10 | 10 | M4 | M5 | 24 |
| SK12 | 12 | M4 | M5 | 30 |
| SK13 | 13 | M4 | M5 | 30 |
| SK16 | 16 | M5 | M6 | 40 |
| SK20 | 20 | M6 | M6 | 70 |
| SK25 | 25 | M6 | M8 | 130 |
| SK30 | 30 | M8 | M10 | 180 |
| SK35 | 35 | M8 | M10 | 270 |
| SK40 | 40 | M10 | M10 | 420 |
| SK50 | 50 | M12 | M12 | 750 |
| SK60 | 60 | M12 | M12 | 1100 |
Jinan Kelunte Bearing Company is located in the capital city of Shandong Province of China, we're China professional bearing manufacturer and we have engaged in Manufacturing and exporting for more than 20 years. Our main products including deep groove ball bearings, taper roller bearings, pillow block bearings, angular contact ball bearings, wheel hub bearings, clutch release bearings and so on.
