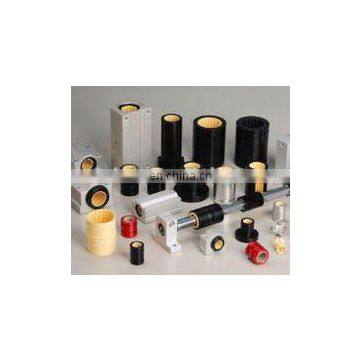

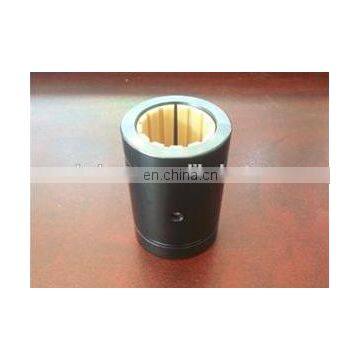

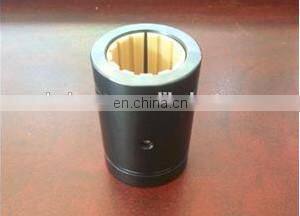

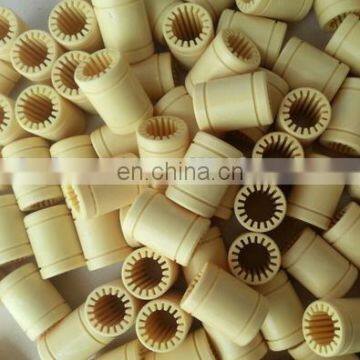

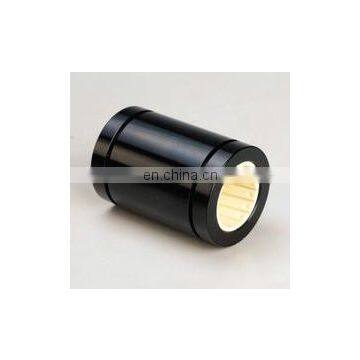

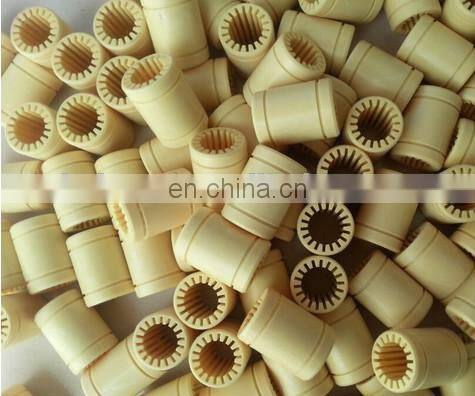

Plastic linear ball bearing
Plastic linear bearing is a low-cost production of linear motion system for unlimited travel with the cylinder axis. Since the ball bearing point contact with the shaft, so use the load is small. Minimal friction ball rotation, thereby to obtain smooth movement precision. Plastic linear bearings are self-lubricating properties of a linear motion system, the biggest difference is that the metal in the metal linear bearings linear bearings are rolling friction, is the point contact between the bearing and the cylinder axis, so this suited for low load speed movement; while plastic linear bearings are sliding friction is between the bearing surface contact with the cylinder axis, so this low-speed movement for high loads.
Linear bearings are used in conjunction with hardened linear drive shaft. For infinite linear motion systems. Load the ball and quenching transmission shaft because it is the point contact, allowing the load is small, but linear motion, friction smallest, high precision, fast movement.
We can supply other series linear ball bearing:
1.Linear Bearing LM8UU hotsale
2.LM LME KH series
3. short delivery time
4. low price&reliable quality in China
5.OEM service is provided as demands
About Linear ball bearing Linear Bearing LM8UU :
Products name | lower price &reliable quality linear ball bearing LM8UU |
Brand name | clunt |
ID size | 8mm*15mm*24mm |
Precision | Qualified |
Delivery date | 2-3 days for ex-stock |
Payment terms | A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L C.paypal |
Application | Linear bearings are currently more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robotics, machine tools, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment, precision among the special equipment or machinery industry. |
Details | Features: feel good, clearance of small, low-noise.used in 3d printer bearing man roland offset printing ,offset printing machine usa , roland bearing |
LM8UU linear bearings are the most common type of bearings used in RepRap/ Mendel / Prusa. The prefix "LM" denotes that the bearing is intended for linear motion, distinguishing it from rotation ball bearings. The number refers to the diameter of the shaft that the bearing will fit on. The suffix letter appears to refer to the design of the bearing. L, V and U appear to refer to types of bearing seals (V indicates a non-contact seal, and U indicates a contact seal), whereas Z indicates that the bearing has been shielded instead of sealed. Single letters indicate that the bearing is single sealed/shielded, whereas double letters (for example, "UU") indicate that the bearing has been double sealed/shielded.There are also many other types of bearings such as LMk8UU, LMKL8UU.
Chinese importers Linear Ball bearing Linear Bearing LM8UU :
| Bearing Code | Ball | Weight | Inner size(dr) | Outer size(D) | Length(L) |
| LM6UU | 4 rows | 8g | 6mm | 12mm | 19mm |
| LM8UU | 4 rows | 17g | 8mm | 15mm | 24mm |
| LM10UU | 4 rows | 30g | 10mm | 19mm | 29mm |
| LM12UU | 5 rows | 31.5g | 12mm | 21mm | 30mm |
| LM13UU | 5 rows | 43g | 13mm | 23mm | 32mm |
| LM16UU | 5 rows | 69g | 16mm | 28mm | 37mm |
| LM20UU | 5 rows | 87g | 20mm | 32mm | 42mm |
| LM25UU | 6 rows | 220g | 25mm | 40mm | 59mm |
| LM30UU | 6 rows | 250g | 30mm | 45mm | 64mm |
| LM35UU | 6 rows | 390g | 35mm | 52mm | 70mm |
| LM40UU | 6 rows | 585g | 40mm | 60mm | 80mm |
| LM50UU | 6 rows | 1580g | 50mm | 80mm | 100mm |
| LM60UU | 6 rows | 2000g | 60mm | 90mm | 110mm |
| LM80UU | 6 rows | 4520g | 80mm | 120mm | 140mm |
| LM...UU | LM...UU-OP | LM...UU-AJ | LME..UU | LM...LUU | KH series |
| LM6UU | LM6UU-OP | LM6UU-AJ | LME5UU | LM6LUU | KH0622 |
| LM8UU | LM8UU-OP | LM8UU-AJ | LME8UU | LM8LUU | KH0824 |
| LM10UU | LM10UU-OP | LM10UU-AJ | LME12UU | LM10LUU | KH126 |
| LM12UU | LM12UU-OP | LM12UU-AJ | LME20UU | LM12LUU | KH1228 |
| LM13UU | LM13UU-OP | LM13UU-AJ | LME25UU | LM13LUU | KH1428 |
| LM16UU | LM16UU-OP | LM16UU-AJ | LME30UU | LM16LUU | KH1428 |
| LM20UU | LM20UU-OP | LM20UU-AJ | LME40UU | LM20LUU | KH1630 |
| LM25UU | LM25UU-OP | LM25UU-AJ | LME50UU | LM25LUU | KH2030 |
| LM30UU | LM30UU-OP | LM30UU-AJ | LME60UU | LM30LUU | KH2540 |
| LM35UU | LM35UU-OP | LM35UU-AJ | LM35LUU | KH3050 | |
| LM40UU | LM40UU-OP | LM40UU-AJ | LM40LUU | KH4060 | |
| LM50UU | LM50UU-OP | LM50UU-AJ | LM50LUU | KH5070 | |
| LM60UU | LM60UU-OP | LM60UU-AJ | LM60LUU | ||
| LM80UU | LM80UU-OP | LM80UU-AJ | |||
| LM100UU | LM100UU-OP | LM100UU-AJ |
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
PRODUCTS PICTURES
SHIPPING:
Sample:Usually by EMS, DHL, UPS, TNT, Fedex. Anyway as you like.Bulk order:Usually by sea.
Delivery:Within 7 days working day for Sample or below 100 pcs ,30-45 days working day for large quantity.The shipment we will arrange as soon as possible. Of course, if it is a custom products,the shipping time will delay.
Warranty:Six months warranty time for the tracker unit from the delivery date leave factory, excluded the accessories.
Payment:It can be through T/T, L/C. The specific terms determined according to the quantity of the goods, etc.
Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.
main bearing products
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.
Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.
Cylindrical roller bearing: N series, NU series, NJ series, etc.
Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.
Needle Roller Bearing
Sliding bearing
Slewing Bearing
Rod End Joint Bearing
Ceramic Bearing
Bearing Accessories
