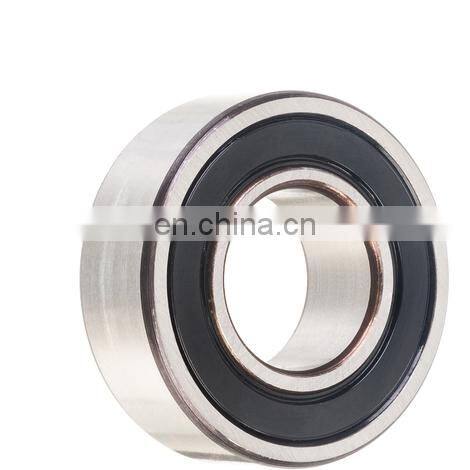

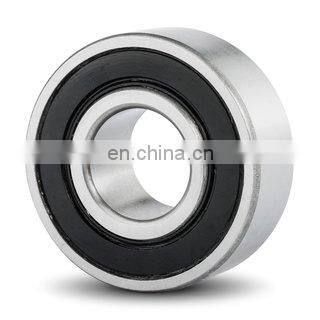

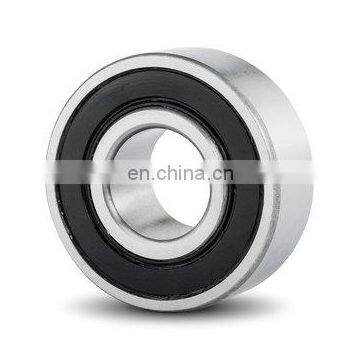

2202 ETN9 Self Aligning Ball Bearing 2202 bearing size 15X35X14
| d | 15 mm | |
| D | 35 mm | |
| B | 14 mm |
| D2 | 30,2 mm | |
| Da max | 30,8 mm | |
| d2 | 19 mm | |
| da min | 19,2 mm | |
| ra max | 0,6 mm | |
| rmin | 0,6 mm |
| m | 0,061 kg | Mass |
| Cr | 7700 N | Basic dynamic load rating, radial |
| C0r | 1750 N | Basic static load rating, radial |
| Cur | 111 N | Fatigue limit load, radial |
| nG | 13300 1/min | Limiting speed |
| e | 0,34 | |
| Y1 | 1,86 | |
| Y2 | 2,88 | |
| Y0 | 1,95 |
Angular Contact Ball Bearing
Angular contact ball bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads.
2.Descriptions
Bearing Feature:
Angular Contact Ball Bearing is mainly applied on high speed, high precision and little axial load occasions, such as airplane engine main shaft, machine tool main shaft and main shafts of other high speed precision machine. It can also be applied on high frequency motor, steam turbine, oil pump, air compressor and printing machine etc. It is one of the bearings most widely used in machinery industry.
Applications:
Single row angular contact ball bearings: machine tool spindles, high frequency motors, gas turbines, centrifuges, small car front wheel, differential pinion shaft, booster pumps, drilling platforms, food machinery, dividing head, fill welder, low-noise cooling towers, electrical and mechanical equipment, painting equipment, machine slot board, arc welding machine
Double row angular contact ball bearings: pump, blower, air compressor, various types of transmission, fuel injection pumps, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, welding machines, electric irons, square box, gravity gun, wire strippers, axle, test analysis equipment, fine chemicals, machinery
Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.

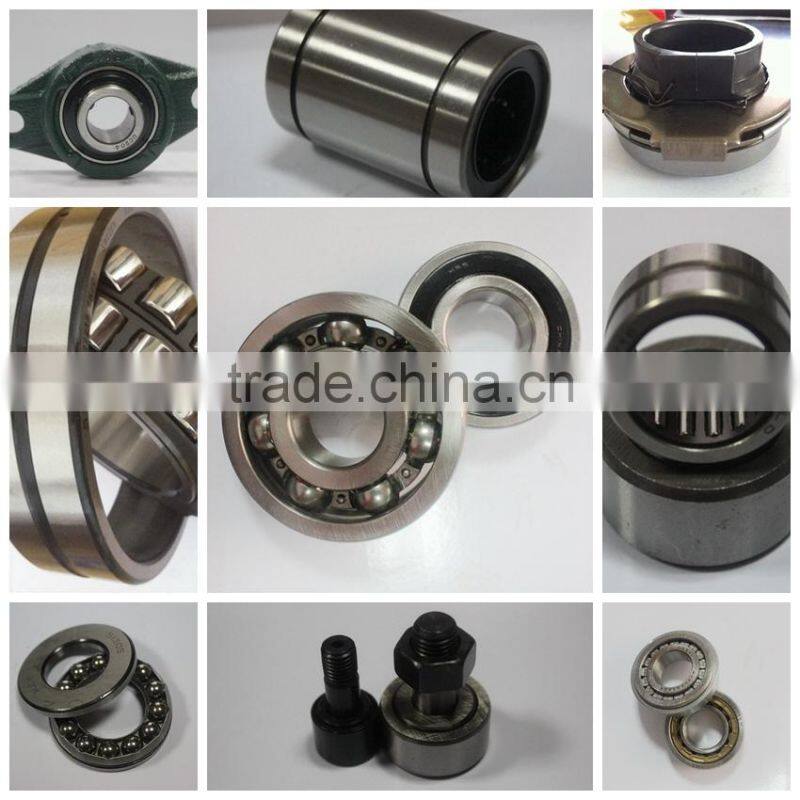

| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
Packing &Delivery
1.Excellent and high quality control
1.Rich Inventory to mostly shorten the delivery time
2.Package design as clients' requirement
3.Providing the most economic carriage solution
4.OEM manufacturing supplied(Including clients' own brand)
5.Produce as drawings provided by clients
6.Design drawings as specifications and applications
7.Preferred payment term:T/T;Paypal;Western Union
2 .With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
1.Staff mission: to develop, innovation, cooperation and good faith.
2,Company's goals: a hundred years the name Enterprise, the industry fresh air.
3,Staff objectives: Choi-chi, with a minor, win-win progress.
4,Business philosophy: science and technology, quality, service, win-win situation.
5,Service spirit: Dissemination of cutting-edge technology together to create wealth.
6,Staff spirit: innovation, cooperation, sincerity and dedication.
7,Development strategy: the internationalization of enterprises to enter the brand name.
8,The core concept: the market conception of qualified personnel, learning concept
A: We are factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jinan City, China. You can fly to Jinan Airport directly. All our clients, from home or abroad, are warmly welcome to visit us.
3. Q: How can I get some samples?
A: We are honored to offer you samples for your checking.
4. Q: How does your factory do regarding quality control?
A: Quality is priority, we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV(Bureau Veritas) certification.
5. Q: What is your production capacity for a month?
A: Our monthly production capacity will be 100000 sets of bearings.
6. Q: What is your main product?
A: Our main product including all kinds of ball bearings and roller bearings and also world famous brand bearings like Japanese brand bearings, USA brand bearings, Sweden brand bearings and so on are available.
