Home > Industrial Equipment & Components > Bearing > Taper Roller Bearing > Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206

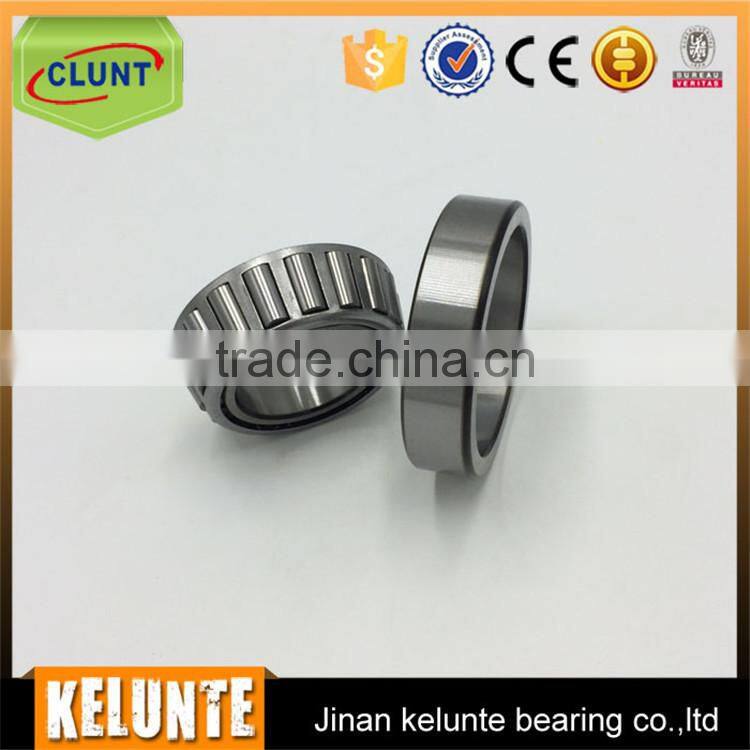

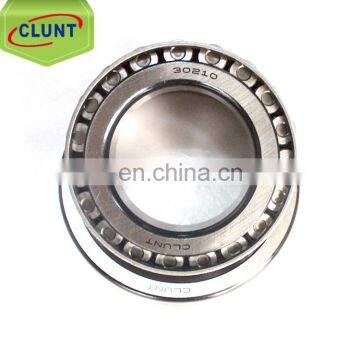

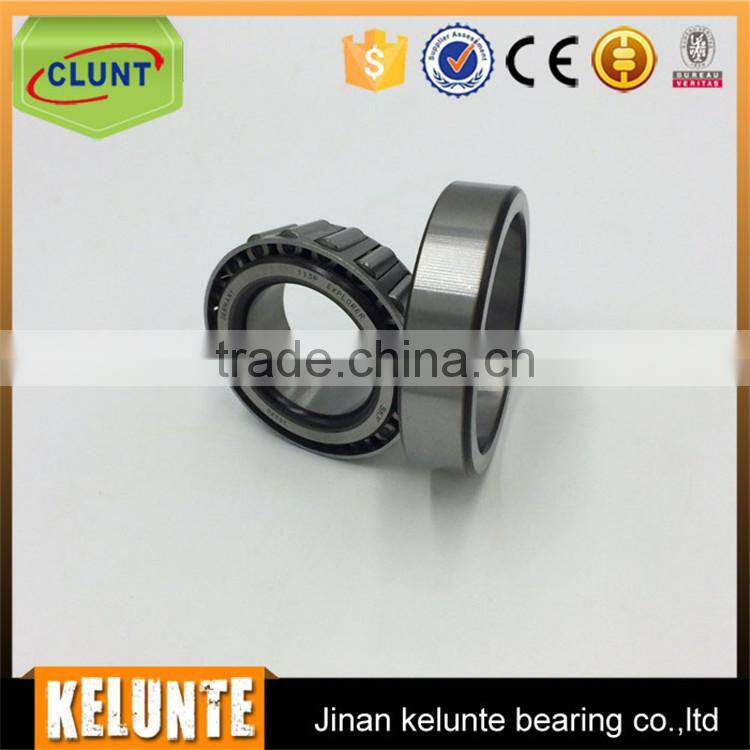

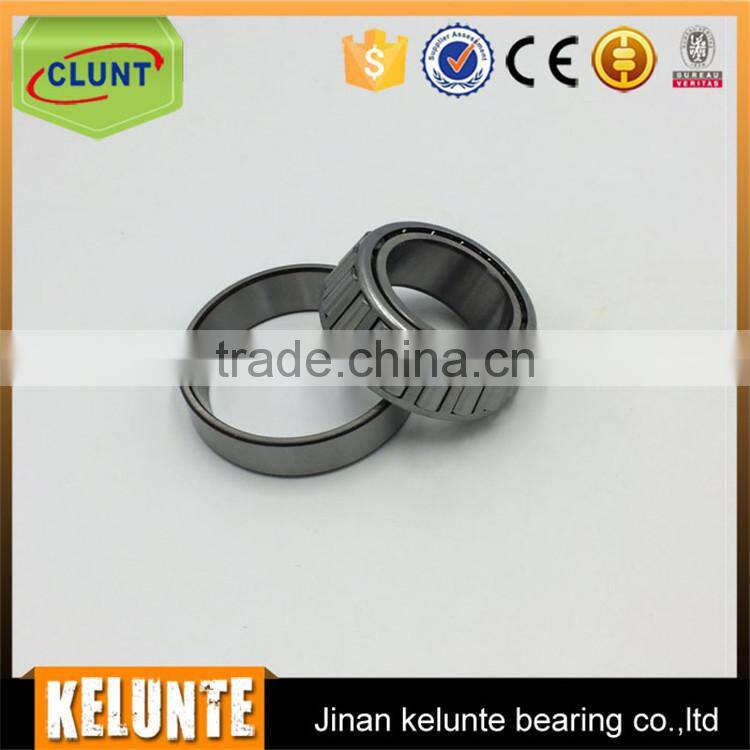

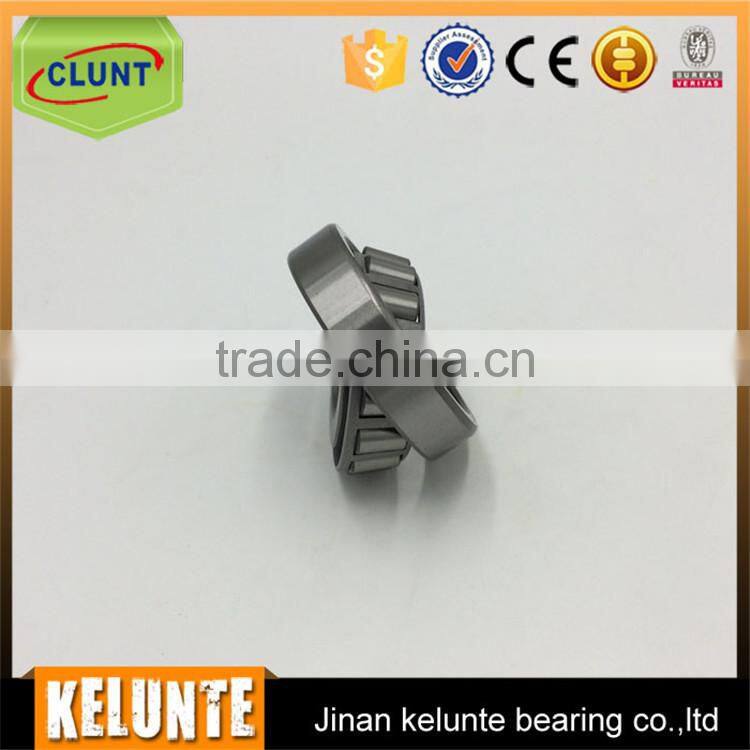

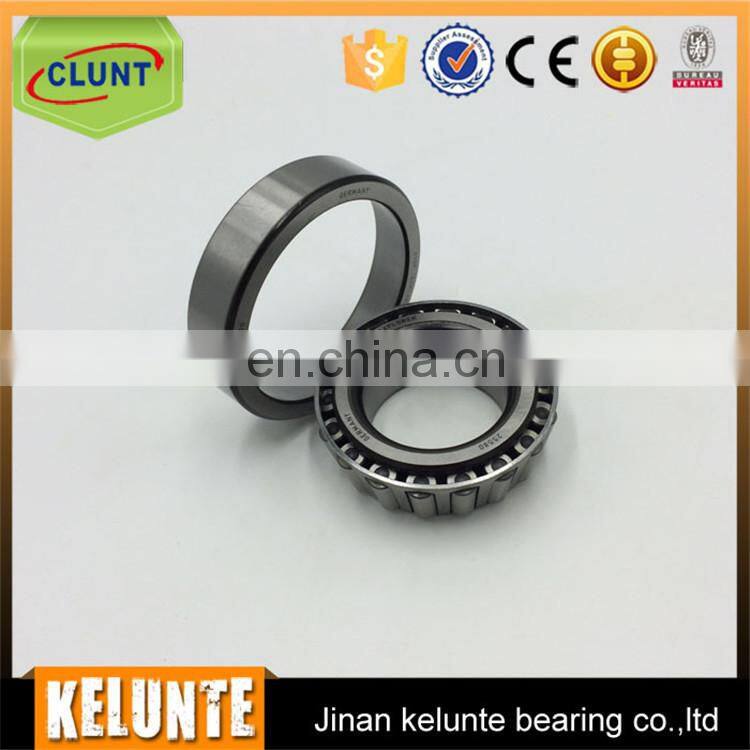

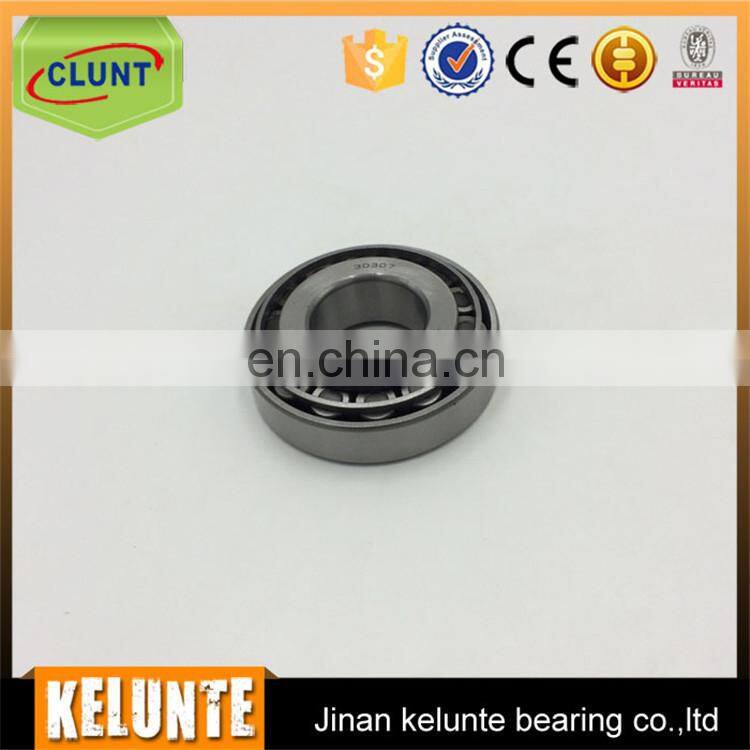

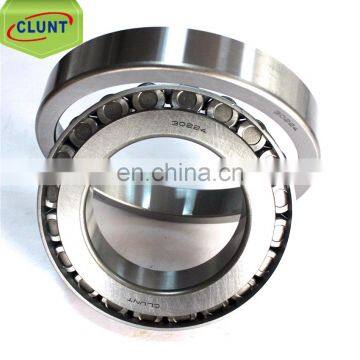

Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206

Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 thumbnail-1
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 thumbnail-2
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 thumbnail-3
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 thumbnail-4
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 thumbnail-5
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 thumbnail-6
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 photo-1
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 photo-2
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 photo-3
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 photo-4
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 photo-5
Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206 photo-6
US$ 0.51 - 0.65 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Place of Origin:
Shandong, China
Model Number:
32206
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Place of Origin Shandong, China
Model Number 32206
Number of Row Single Row
Seals Type Open
Precision Rating ABEC1 3 5 7 9
Outside Diameter 62, 62.02
Bore Size 30, 30.01

Tapered Roller Bearing 32206 Japan 30x62x20 33206 Taper Bearings 32206



Product Description



Specifications

Series

 32206M

Cone Part Number

 X32206M

Cup Part Number

 Y32206M

Design Units

 Metric

Bearing Weight

 0.3 Kg0.70 lb

Cage Type

 Stamped Steel

Dimensions

d - Bore

 30.000 mm1.1811 in

D - Cup Outer Diameter

 62.000 mm2.4409 in

B - Cone Width

 20.000 mm0.7874 in

C - Cup Width

 17.000 mm0.6693 in

T - Bearing Width

 21.250 mm0.8366 in

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 1.020 mm0.040 in
r - Cup Backface "To Clear" Radius2 1.02 mm0.040 in

da - Cone Frontface Backing Diameter

 37.08 mm1.46 in

db - Cone Backface Backing Diameter

 42.93 mm1.69 in

Da - Cup Frontface Backing Diameter

 59.44 mm2.34 in

Db - Cup Backface Backing Diameter

 54.10 mm2.13 in

Ab - Cage-Cone Frontface Clearance

 3 mm0.12 in

Aa - Cage-Cone Backface Clearance

 0.3 mm0.01 in
a - Effective Center Location3 -5.60 mm-0.22 in

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)4 16600 N3740 lbf
C1 - Dynamic Radial Rating (1 million revolutions)5 64100 N14400 lbf

C0 - Static Radial Rating

 71900 N16200 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 10700 N2400 lbf

Factors

K - Factor7 1.56
e - ISO Factor8 0.37
Y - ISO Factor9 1.6

G1 - Heat Generation Factor (Roller-Raceway)

 16.8

G2 - Heat Generation Factor (Rib-Roller End)

 10.9

Cg - Geometry Factor

 0.0652

tapered roller bearings 322 series:



Bearings No

d

D

B

CLUNT

mm

mm

mm

32203-A

17

40

17,25

32205-A

25

52

19,25

32206-A

30

62

21,25

32207-A

35

72

24,25

32208-A

40

80

24,75

32209-A

45

85

24,75

32210-A

50

90

24,75

32211-A

55

100

26,75

32212-A

60

110

29,75

32213-A

65

120

32,75

32214-A

70

125

33,25

32215-A

75

130

33,25

32216-A

80

140

35,25

32217-A

85

150

38,5

32218-A

90

160

42,5

32219-A

95

170

45,5

32220-A

100

180

49

32221-A

105

190

53

32222-A

110

200

56

32224-A

120

215

61,5

32226-A

130

230

67,75

32228-A

140

250

71,75

32230-A

150

270

77

32232-A

160

290

84

32234-A

170

310

91

32236-A

180

320

91

32238-A

190

340

97

32240-A

200

360

104

32244-A

220

400

114

32248-A

240

440

127

32252

260

480

137

32264

320

580

159



Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206Tapered Roller Bearings 32206 Japan 30x62x20 33206 Taper Bearings 32206
