Wheel hub bearing 30615 China supplier tapered roller bearing 7815E

Name: Wheel hub bearing 30615 China supplier tapered roller bearing 7815E
Brand: CLUNT
Price: USD $4.88 - 5.14 / Piece

FOB Price

USD $4.88 - $5.14 / Piece

5 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	CLUNT	Place of Origin:	Shandong, China	Model Number:	Wheel hub bearing 30615
Number of Row:	Single Row	Seals Type:	Open	Precision Rating:	ABEC1 3 5 7

Product Description

Wheel hub bearing 30615 China supplier tapered roller bearing 7815E

Product Overviews

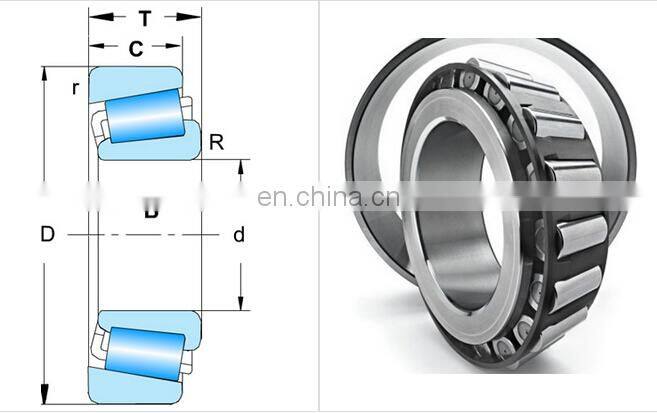

Tapered Roller Bearing

Tapered roller bearings have tapered raceways in inner and outer rings, and have tapered rollers between raceways. When the tapered sliding surfaces of the outer and inner rings as well as the rolling elements are extended, they would converge towards the same single point on the bearing axis line. These bearings can accommodate radial-axial combined loads replying mainly on radial load. The capacity of bearing axial load varies with the contact angle; of the outer ring raceway, the greater the angle, the larger the capacity. Tapered roller bearings are separable bearings. Their rollers, cage and inner ring are called as cone, outer ring are named as Cup. Cone and cup can be mounted respectively. The bearings are classified by elements as single row, double row and multiple row bearings.

Details:

1.Inner diameter is above 100mm

2. Outer diameter is above 150mm

3. Precision level:P0,P4,P5,P6

4.Raw material:GCr15/GCr15SiMn or according to customers requirement

5. Quality Certification:ISO9001:2000

6.Package:industrial standard/original manufacturer package

Tapered Roller Bearing
Model No.:	Metric:30200,30300,31300,31000,32200,32300,33000,33200 series (Inch:JL,JLMS,LS,LM,LMS,MS,HMS series)			Material:	GCr15
Brand name:	CLUNT	Ball Size	20mm-190mm	Outside diameter	40mm-320mm
Clearance:	C0; C2; C3; C4; C5	Precision rating:	P0; P6; P5	Vibration rating:	Z1; Z2; Z3
Load Direction:	radial load and one way axial load	Cage:	Steel cage; nylon cage; brass cage	Certifications:	ISO/TS 16949:2009; SGS
Sales Type	RS, 2RS, R2, Z, 2Z, 2RZ etc	Price	FOB, CIF, CNF, EXW, etc	Supply ability / sets:	8000 0000 sets/year
Delivery date:	Within 20-30days Normally / as Requested	Port of loading:	Shanghai/ Ningbo	Place of origin:	Haerbin/ Jiangsu/ Zhejiang (China, mainland)
Applications:	Car front; Differential and pinion construction of the conveyor roller; Spindle; Trailer wheels; Larger load car; Industrial Equipment Construction; Aviation; Power transmission; Heavy industry; Spindle; Gear unit; Car axle; Transmission.
Advantage:	High speed, Less coefficient of friction(COF), High precision, Low noise, Low cost, Large loading capacity
Package:	Single box + outer carton + pallets; Tube package + middle box + outer carton + pallets;Export StandardIndustrial Package; or according to customer's special requirements
Payment terms:	30% prepayment, the balance will be arranged before delivery; T/T, L/C; western union; paypal; or other negotiable.

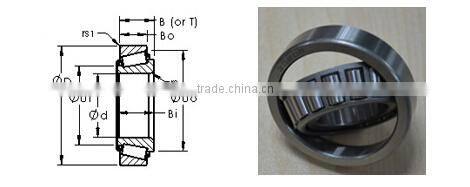

30615 bearing Specifications

Attributes	Values
Units	mm
Bearing Type	single row assembly
Bore Dia (d)	75.0000
Outer Dia (D)	135.0000
Width (B)	44.5000
Outer Width (Bo)	36.5000
Inner Width (Bi)	45.0000
Radius (min) (rs)	2.000
Dynamic Load Rating (Cr)	228,000
Static Load Rating (Cor)	287,000
Max Speed (Grease)	3,000
Max Speed (Oil)	3,800
Max. Shaft Shoulder Dia. Inner (Li)	88.0
Min. Housing Shoulder Dia., Outer (Lo)	118.0
Radius (min) (rs1)	2.500
Weight (g)	2,690.00
Material	52100 chrome steel or equiavelent

Tapered roller bearing Applications

Foxklift; Automobiles; Heavy trucks; Planetary; Gearbox, Speed reducers, Grabs; Pulleys; Agricultural machinery; Machine tools; Motors; Lathe; Construction machines; Railway vehicles; Industrial sewing machine; Textile machinery; Electric tools; General machinery; Washers; Vacuum cleaners; Turbine-generator.

Same Series

Bearing No	Boundary dimensions (mm)			Weight (kg)
Bearing No	d	D	T	Weight (kg)
32004	20	42	15	0.96
32005	25	47	15	0.115
32006	30	55	17	0.172
32007	35	62	18	0.227
32008	40	68	19	0.77
32009	45	75	20	0.329
32010	50	80	20	0.365
32011	55	90	23	0.55
32012	60	95	23	0.586
32013	65	100	23	0.627
32014	70	110	25	0.842
32015	75	115	25	0.887
32016	80	125	29	1.27
32017	85	130	29	1.33
32018	90	140	32	1.73
32019	95	145	32	1.8
32020	100	150	32	1.87
32021	105	160	35	2.38
32022	110	170	38	3.05
32024	120	180	38	3.2

Company Information

Company Profile

Jinan Kelunte Bearing Co.,Ltd was established in 2010 which is located in Fenghuangshan Electricity Industrial Park,Tian Qiao Distirct,Jinan city.Our company is a modern enterprise which combines bearing marketing and production.Our factory covers an area of 10,000 square metres and our plant covers more than 5000 square meters.Our company initroduced our own brand CLUNT.Equiped with modern prodution equipment and advanced inspection equipment, our products are mainly for the high-end market.Our main products:pillow block bearings,deep groove ball bearings,taper roller bearings,linear bearings,cylinderical roller bearings,precision machine tool spindle bearings,spherical roller bearings,oil seals,ect.Our products are widely used in autombiles,high presion motors,speed reducer,vibrating screen,crusher,railway,etc.

Jinan Kelunte Bearing Co.,Ltd takes specialization as core strategy,promoting internationalizion and diversification.Our company devotes to achive domestic and international advanced level.

Jinan Kelunte Bearing C.,Ltd has been a respected and excellet enterprise in bearing industry.We will keep moving forward.

Certifications

Our Services

We are 100% manufacture. We can supply you technical support.

We have strict quality control processes. We supply high quality bearings with fair price.

We accept small quantity.

We may supply other globle brand bearings and offer buyer labels.

We can manufacture any bearings according to customer's drawings

Shipping

Sample:Usually by EMS, DHL, UPS, TNT, Fedex. Anyway as you like.

Bulk order:Usually by sea.

Delivery:Within 7 days working day for Sample or below 100 pcs ,20-30 days working day for large quantity.The shipment we will arrange as soon as possible. Of course, if it is a custom products,the shipping time will delay.
