fishing reel ceramic bearing Deep Groove Ball Bearings 4205
Deep groove ball bearings are used in a particularly wide variety of applications. Consequently, they are available in many executions and sizes. We manufacture a full range of deep groove ball bearings. In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. As to cages, pressed steel ones are the most common. For big deep groove ball bearings, machined brass cages are used. Machined cages are also used for high speed applications.
We can supply 4200 series deep groove ball bearings either open, in 2RS form or in 2Z(ZZ) form. Bearing in 2RS form has two rubber seals at either side and bearing in 2Z(ZZ) form is closed with two metal shields. The rubber seals or metal shields can protect the bearing from dust or any possible contamination. We can also offer 4200 series ball bearings with circlip grooves and retaining rings.
4205 Double row deep groove ball bearings---Deep groove ball bearings have the most widely use in the fields of industry,agricultural machine,precision instruments,autobike,etc. Generally speaking,there are 2 designs of this type of bearings,single row and double row deep groove ball bearings.Double row deep groove ball bearings which supplied by bearingscorporation correspond in design to single row deep groove ball bearings. They have deep uninterrupted raceways and high conformity between the balls and raceways. They are able to carry axial loads acting in both directions in addition to radial loads.
They are very suitable for bearing arrangements where the load carrying capacity of a single row bearing is inadequate. For the same outside and bore diameters, double row bearings are slightly wider than single row bearings but have considerably higher load carrying capacity than single row bearings in the 62 and 63 series.
The part no. 4205 is a typical double row deep groove ball bearings,this type enjoys a good sale all over the world,following is its main data for your reference.
Size/Metric: 25x52x18 mm
Net weight: 0.16 kg
Limiting speed: 20000 r/min
Reference speed: 11000 r/min
Fatigue limit load, radial: 0.62 KN
Basic dynamic load rating, radial: 19 KN
Basic static load rating, radial: 14.6 KN
small trucks used bearings Deep Groove Ball Bearings 4204 details:
Double row deep groove ball bearings---Deep groove ball bearings have the most widely use in the fields of industry,agricultural machine,precision instruments,autobike,etc. Generally speaking,there are 2 designs of this type of bearings,single row and double row deep groove ball bearings.Double row deep groove ball bearings which supplied by CLUNT bearingscorporation correspond in design to single row deep groove ball bearings. They have deep uninterrupted raceways and high conformity between the balls and raceways. They are able to carry axial loads acting in both directions in addition to radial loads.
The 4200 series deep groove ball bearings are made of chrome steel normally, but beairngs in stainless steel, carbon steel, PTFE, plastic or ceramic can be provided if required. We can also supply bearings with various precision ratings(P0, P6, P5, P4, P2), internal clearance levels(C1, C2, C0, C3, C4, C5), high temperature options. Different bearings have their own specific attributes and ideal operating conditions. Here we only list the most common types of the 4200 series deep groove ball bearing which are suitable for the majority of applications. If you require 4200 series deep groove ball bearings with specific attributes, please contact us so that we can quote for you accurately.
fishing reel ceramic bearing Deep Groove Ball Bearings 4205 Catalogues
| Bearing Model Number |
Principal Dimensions mm |
Basic Load Ratings N |
Limiting Speeds r/min |
Mass kg |
||||||
| Open | Shields | Seals | Inner
d |
Outside
D |
Breadth
B |
Dynamic
C |
Static
Co |
Grease | Oil | |
| 4200 | 4200ZZ | 4200 2RS | 10 | 30 | 14 | 7384 | 4160 | 14400 | 17600 | 0.049 |
| 4201 | 4201ZZ | 4201 2RS | 12 | 32 | 14 | 8480 | 4960 | 13600 | 16000 | 0.053 |
| 4202 | 4202ZZ | 4202 2RS | 15 | 35 | 14 | 9520 | 6000 | 11200 | 13600 | 0.059 |
| 4203 | 4203ZZ | 4203 2RS | 17 | 40 | 16 | 11840 | 7600 | 9600 | 12000 | 0.090 |
| 4204 | 4204ZZ | 4204 2RS | 20 | 47 | 18 | 14240 | 10000 | 8000 | 10400 | 0.140 |
| 4205 | 4205ZZ | 4205 2RS | 25 | 52 | 18 | 15200 | 11680 | 7200 | 8800 | 0.160 |
| 4206 | 4206ZZ | 4206 2RS | 30 | 62 | 20 | 20800 | 16640 | 6400 | 7600 | 0.260 |
| 4207 | 4207ZZ | 4207 2RS | 35 | 72 | 23 | 28080 | 22800 | 5360 | 6400 | 0.400 |
| 4208 | 4208ZZ | 4208 2RS | 40 | 80 | 23 | 29680 | 26000 | 4800 | 5600 | 0.500 |
| 4209 | 4209ZZ | 4209 2RS | 45 | 85 | 23 | 31200 | 28800 | 4480 | 5360 | 0.540 |
| 4210 | 4210ZZ | 4210 2RS | 50 | 90 | 23 | 32800 | 32000 | 4000 | 4800 | 0.580 |
| 4211 | 4211ZZ | 4211 2RS | 55 | 100 | 25 | 35920 | 35200 | 3840 | 4480 | 0.800 |
| 4212 | 4212ZZ | 4212 2RS | 60 | 110 | 28 | 45760 | 44000 | 3600 | 4240 | 1.100 |
| 4213 | 4213ZZ | 4213 2RS | 65 | 120 | 31 | 54080 | 53600 | 3200 | 3840 | 1.450 |

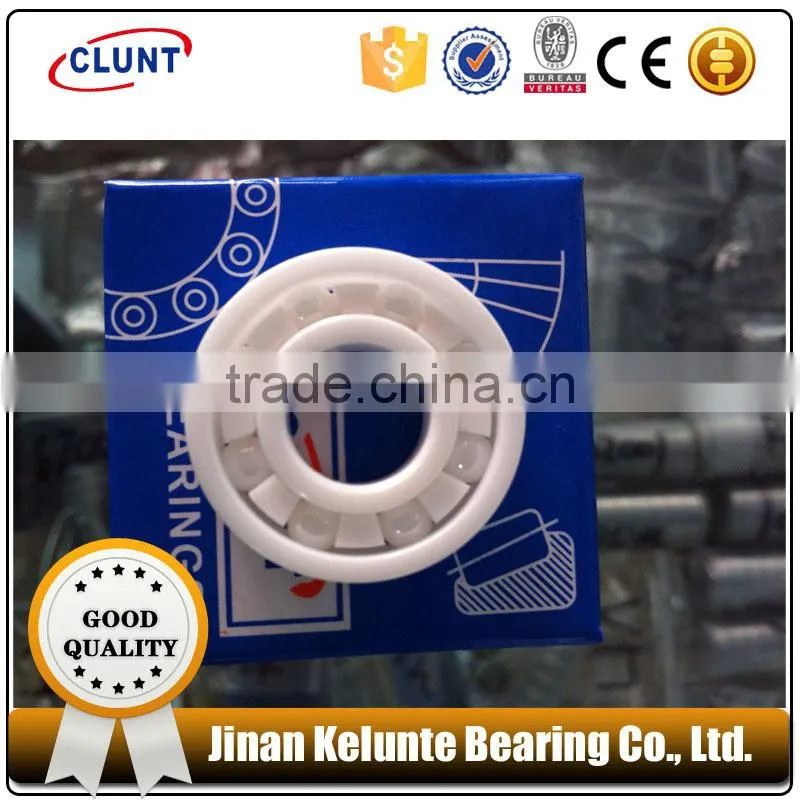

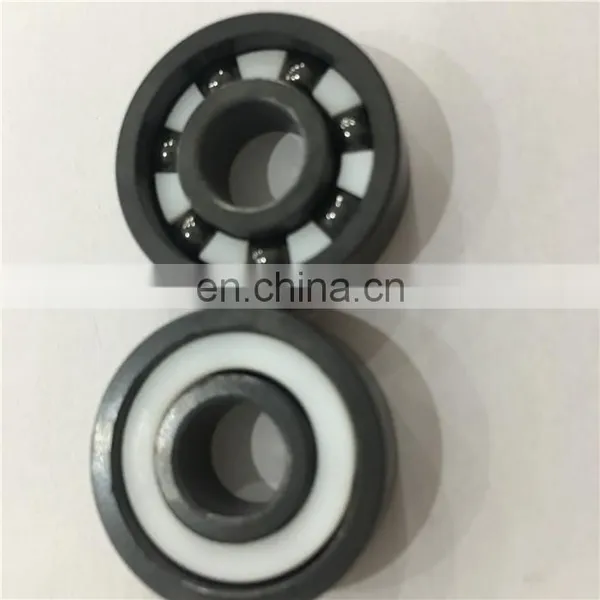

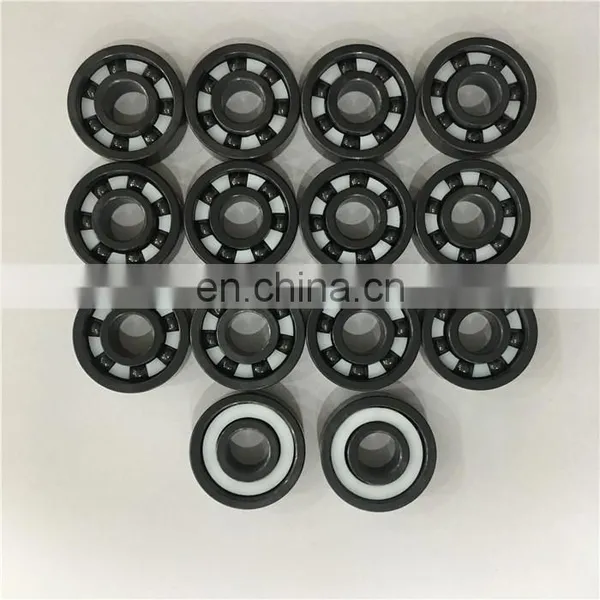

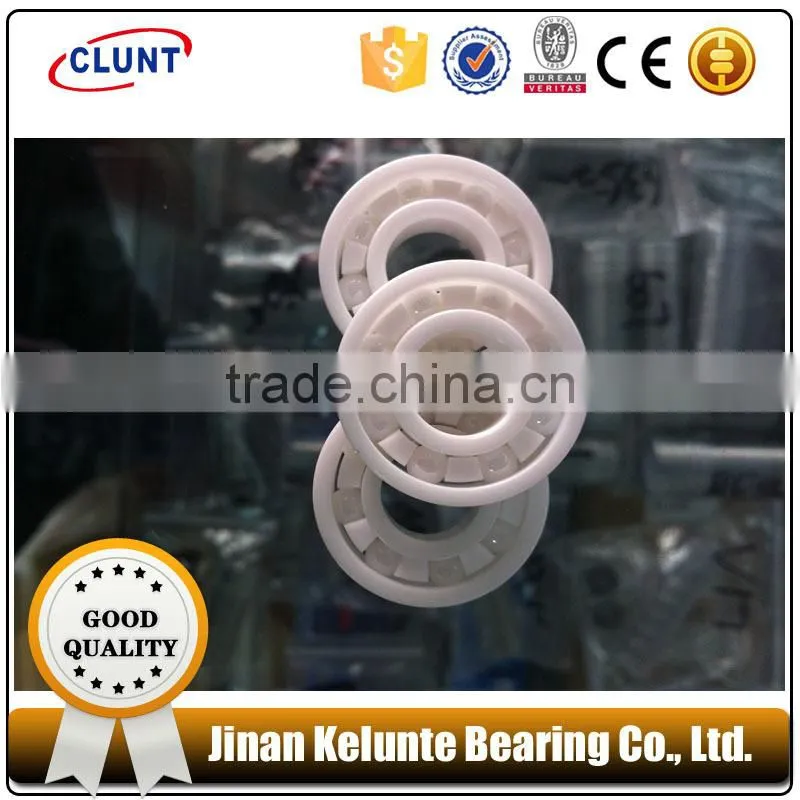

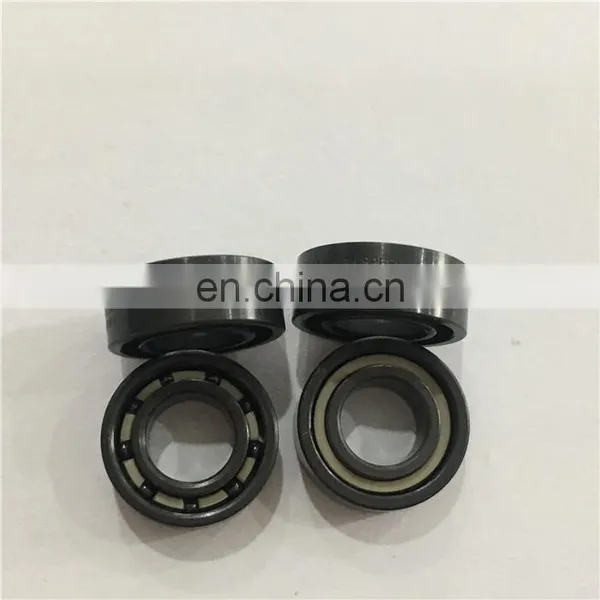

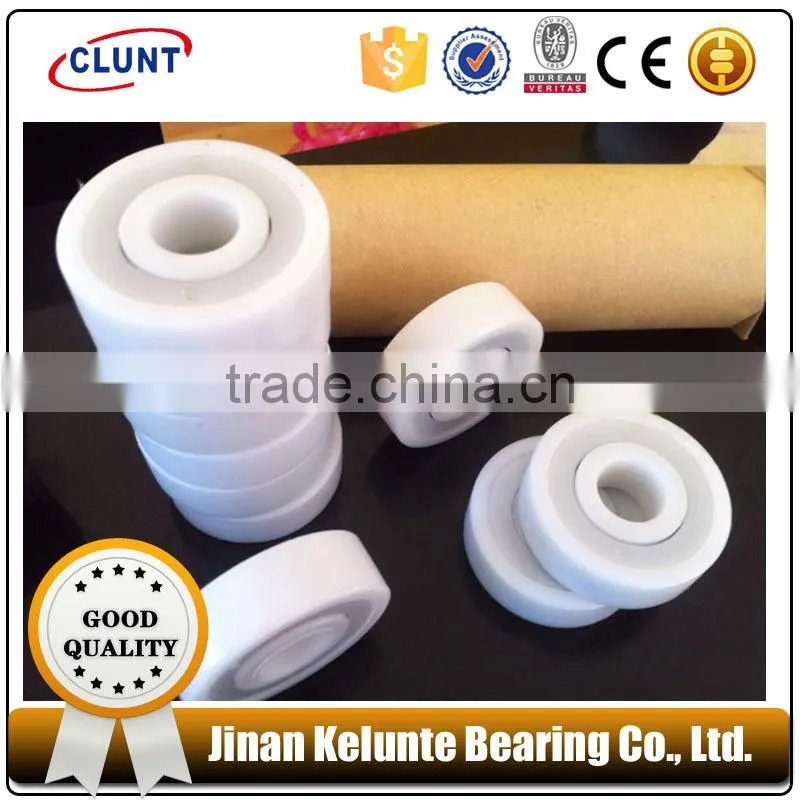

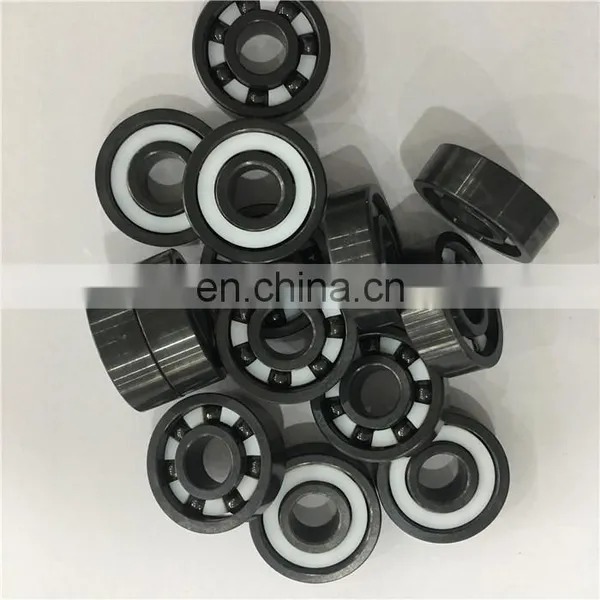

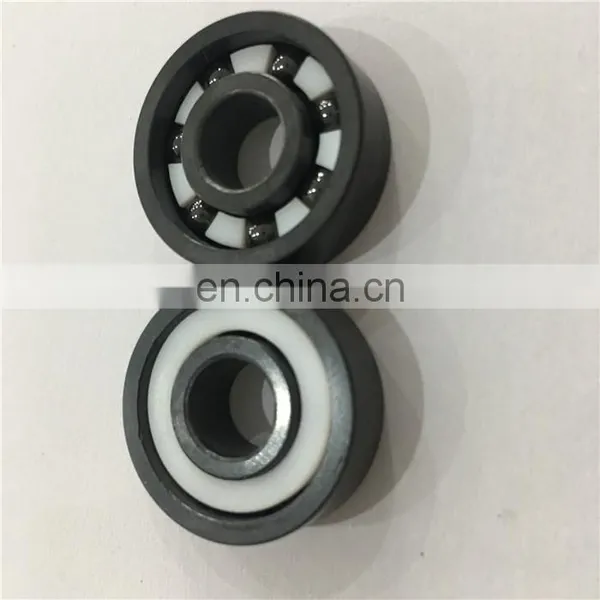

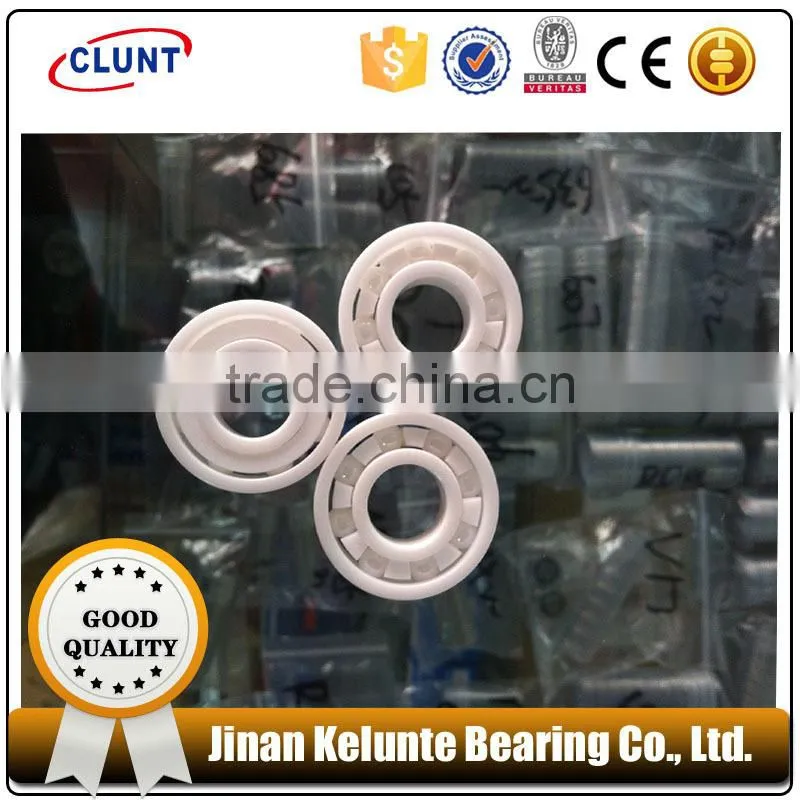

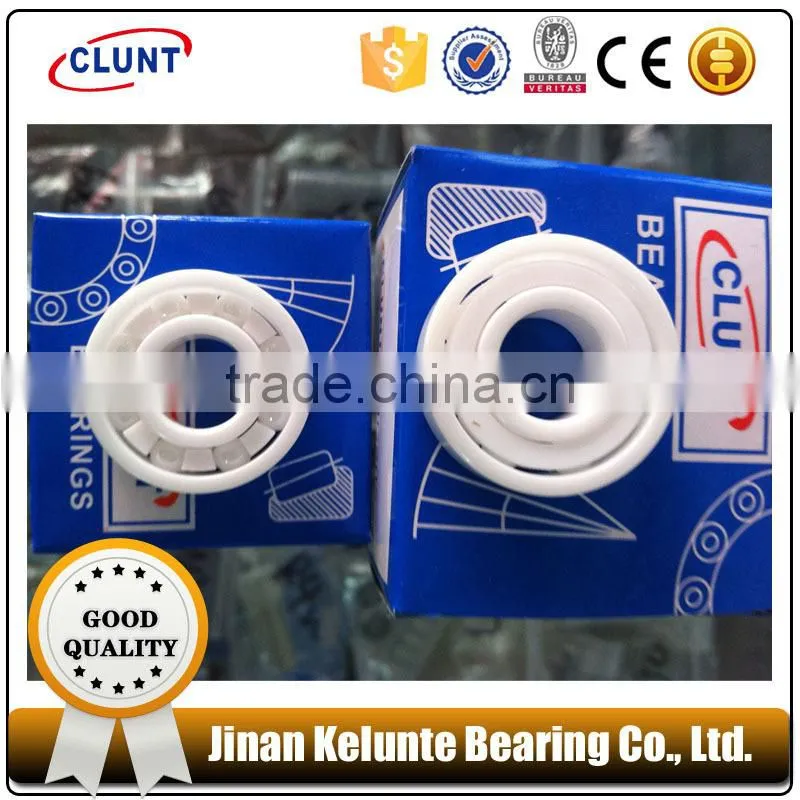

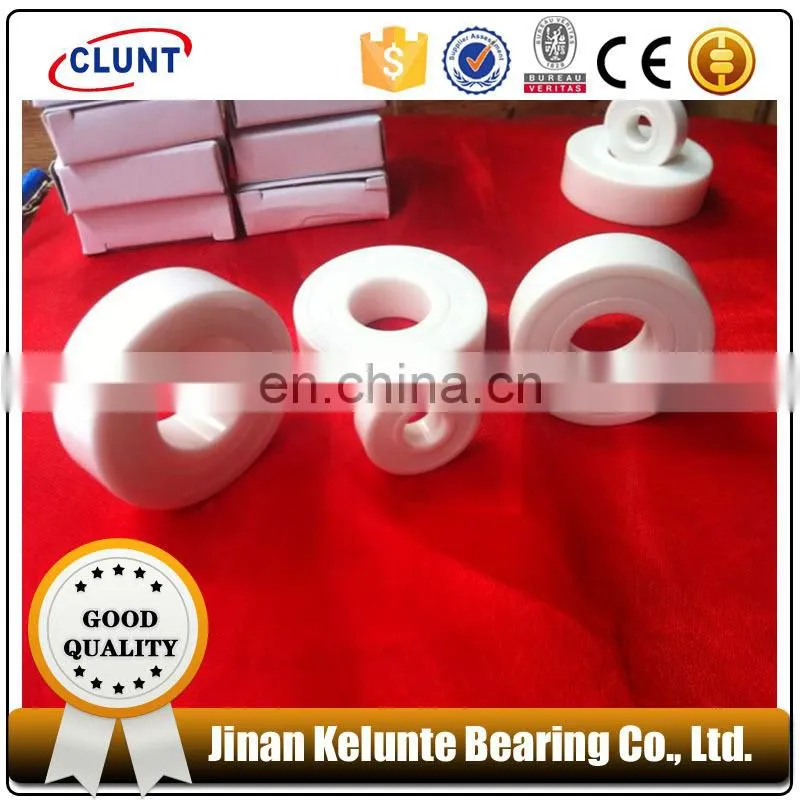

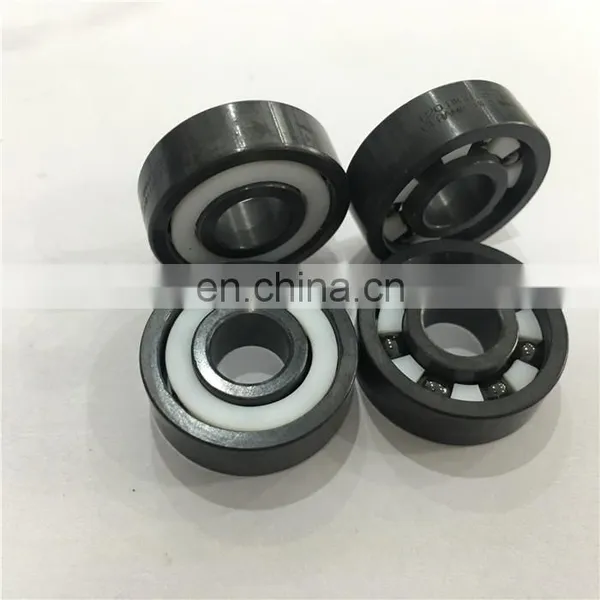

fishing reel ceramic bearing Deep Groove Ball Bearings 4205 pictures:
