Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder

Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder thumbnail-1
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder thumbnail-2
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder thumbnail-3
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder thumbnail-4
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder thumbnail-5
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder thumbnail-6
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder photo-1
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder photo-2
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder photo-3
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder photo-4
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder photo-5
Miniature Bearing 699 Bearing 9*20*6mm Used in Feeder photo-6
US$ 0.09 - 0.1 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Place of Origin:
Shandong, China
Model Number:
699
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Place of Origin Shandong, China
Model Number 699
Number of Row Single Row
Seals Type open
Precision Rating p0 p6 p5 p4 p2
Outside Diameter 19.99, 20
Bore Size 8.99, 9

miniature bearing 699 bearing 9*20*6mm used in Feeder



699 Bearing
Bore Dia (d) 9mm
Outer Dia (D) 20mm
Width (B) 6mm
Bearing Type Shielded or Seal and Open are available.
Material 52100 Chrome steel, stainless steel and ceramic are available.
Dynamic Load Rating (Cr) (Newtons) 2097
Static Load Rating (Cor) (Newtons) 865
Max Speed (Grease) (X1000 RPM) 34
Max Speed (Oil) (X1000 RPM) 40
Ball Qty 8
Ball Dia (Dw) 3.1750mm
Weight (g) (grams) 8.38
Note ABEC Grades 1, 3, 5, 7, and 9 are available. Also, the equivalent ISO classes.



  miniature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feeder



Products name

miniature bearing 699 bearing 9*20*6mm used in Feeder

Series

miniature series

Material

Chrome steel (Gcr15)

Quality

standard

ISO9001:2000 standard

Service

OEM service

Tolerance

Grades

ABEC-1(P0), ABEC-3(P6), ABEC-5(P5), ABEC-7(P4)

Noise Level

EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4

Sealing/Shield

Open, Z, ZZ,RS, 2RS,RZ,2RZ

Product

Advantage

A:Very smooth hand feeling

B:High precision, long life, low noise
C:high-end technology

D:good aftersales service

Package

A: tube package+outer carton+pallets

B: single box+outer carton+pallets

C: tube package+middle box+outer carton+pallets

D: According to your’s requirement



other range

1) 6000 series:

604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011.

6012.6013.6014.6015.6016.6017.6018.6019.6020.6021.6022.6024.6026.6028.6030.6032.6034.

6036.6038.6040.6044.6048.6052.6056.6060.6064.6068.6072.6080.6088.6092

2) 6200 series:

624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.

6212.6213.6214.6215.6216.6217.6218.6219.6220.6221.6222.6224.6226.6228.6230.6232.6234.

6236.6238.6240.6248.6252

3) 6300 series:

634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.

6310.6311.6312.6313.6314.6315.6316.6317.6318.6319.6320.6321.6322.6324.6326.6328.6330.6334.6340

4) 6400 series:

6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420.6422..6426

5) 6700 series:

673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705

6) 6800 series:

685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812

7) 6900 series:

695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912

8)16000 series:

16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015

9)Inch R

 series

R156,R166,R3,R3A,R168,R188,R4,R4A,R6,R8,R8-7,

R10,R12,99502H

10)Inch 16

series

1601,1602,1603,1604,1605,1606,1607,1614,1615,1616,

1620,1621,1622,1623,1628,1630,1633,1635

Introduction of Deep Groove Ball Bearing



Deep groove ball bearings are most commonly used rolling bearings . It can carry much heavy axial loads after increase of radial clearance , can used for carrying pure axial loads .



Deep Groove Ball Bearing Application:



The deep groove ball bearing can be used in many different places such as: Gearbox, instruments and meters, electric motor, electric appliance, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, and so on.



Features:



1. Seals: Open Type, Sealed Type, Shielded Type;



2. Cage: Machined Brass Cage, Steel Cage, Plastic Cage;



3. Outer Ring: With our Without Snap Ring Groove;



4. Precision Grade: P0, P6, P5, P4;



5. Clearance Grsde: C2, C0, C3, C4, C5;



6. Vibration Grade: Z1V1, Z2V2, Z3V3.







CLUNT catalog

1.deep groove ball bearing



CLUNT No. Stock Product Type
627 42 Miniature Bearing
604-ZZ 355 Miniature Bearing
606-2RS 1906 Miniature Bearing
606-ZZ 1400 Miniature Bearing
607-2RS 12516 Miniature Bearing
607-ZZ 338 Miniature Bearing
608-2RSBLACK 3610 Miniature Bearing
608-Z 100 Miniature Bearing
608-ZZC3 12000 Miniature Bearing
609-2RS 8861 Miniature Bearing
609-ZZ 4517 Miniature Bearing
623-ZZ 1000 Miniature Bearing
624-2RS 940 Miniature Bearing
625-ZZ 25443 Miniature Bearing
626-2RSC3 400 Miniature Bearing
627-2RS 6988 Miniature Bearing
627-ZZC3 500 Miniature Bearing
628-2RS 9315 Miniature Bearing
628-2RSC3 509 Miniature Bearing
628-ZZ 6841 Miniature Bearing
629-2RS 15518 Miniature Bearing
629-2RSC3 1000 Miniature Bearing
635-ZZ 1150 Miniature Bearing
638-ZZ 590 Miniature Bearing
686-2RS 490 Miniature Bearing
687-2RS 780 Miniature Bearing
688-2RS 2969 Miniature Bearing
689-2RS 2250 Miniature Bearing
689-ZZ 3040 Miniature Bearing
693-2RS 5000 Miniature Bearing
693-ZZ 4650 Miniature Bearing
694-ZZ 450 Miniature Bearing
695-ZZ 974 Miniature Bearing



2.taper roller bearing catalog:

BASIC
BEARING NUMBER		 BORE O.D. WIDTH WEIGHT
d D T B C
mm mm mm mm mm kg
inch inch inch inch inch lb
32004 20 42 15 15 12 0.097
0.7874  1.6535  0.5906  0.5906  0.4724  0.213
32005 25 47 15 15 11.5 0.114
0.9843  1.8504  0.5906  0.5906  0.4528  0.251
32006 30 55 17 17 13 0.166
1.1811  2.1654  0.6693  0.6693  0.5118  0.365
32007 35 62 18 18 14 0.224
1.3780  2.4409  0.7087  0.7087  0.5512  0.493
32008 40 68 19 19 14.5 0.273
1.5748  2.6772  0.7480  0.7480  0.5709  0.601
32009 45 75 20 20 15.5 0.346
1.7717  2.9528  0.7874  0.7874  0.6102  0.761

3.spherical roller bearing catalog:

Bearing No.

Boundary dimensions

Basic load ratings(kN)

Limiting speeds

Mass

mm

Dynamic

Static

rpm

Kg

d

D

B

rs min

Cr

Cor

Grease

Oil



23022

110

170

45

2

282

455

1,800

2,800

3.71

23022K

110

170

45

2

282

455

1,800

2,800

3.58

23022KW33C3

110

170

45

2

282

455

1,800

2,800

3.58

23022W33C3

110

170

45

2

282

455

1,800

2,800

3.71

23024

120

180

46

2

296

495

1,700

2,600

4.05

23024K

120

180

46

2

296

495

1,700

2,600

3.9

23024KW33C3

120

180

46

2

296

495

1,700

2,600

3.9

23024W33C3

120

180

46

2

296

495

1,700

2,600

4.05

23026

130

200

52

2

375

620

1,500

2,300

5.9

23026K

130

200

52

2

375

620

1,500

2,300

5.69

23026KW33C3

130

200

52

2

375

620

1,500

2,300

5.69

23026W33C3

130

200

52

2

375

620

1,500

2,300

5.9

miniature bearing 699 bearing 9*20*6mm used in Feeder





Packaging & Shipping

miniature bearing 699 bearing 9*20*6mm used in Feeder

1. Neutral Package: Plastic Tube + Carton + Pallet

2. Commercial Package: single CLUNT Box + Carton + Pallet

miniature bearing 699 bearing 9*20*6mm used in Feeder

1. Payment:

   1) TT, 30% deposit , 70% before shippment.
   2) L/C at sight. (high bank charge, not suggest , but acceptable )
   3) 100% Western Union in advance. (specially for air shipment or small amount)

2. Delivery:

   1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )

   2) Between 45 - 200 KGS, we will send by  air transport. ( Fastest and safest, but expensive )

   3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )

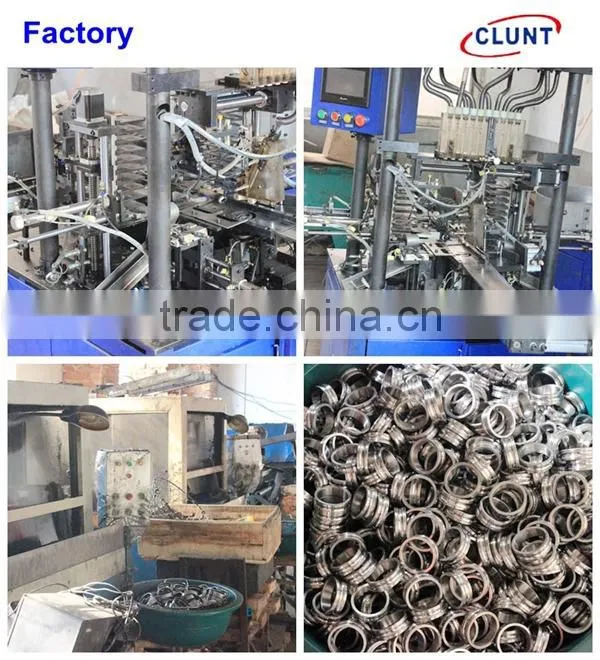

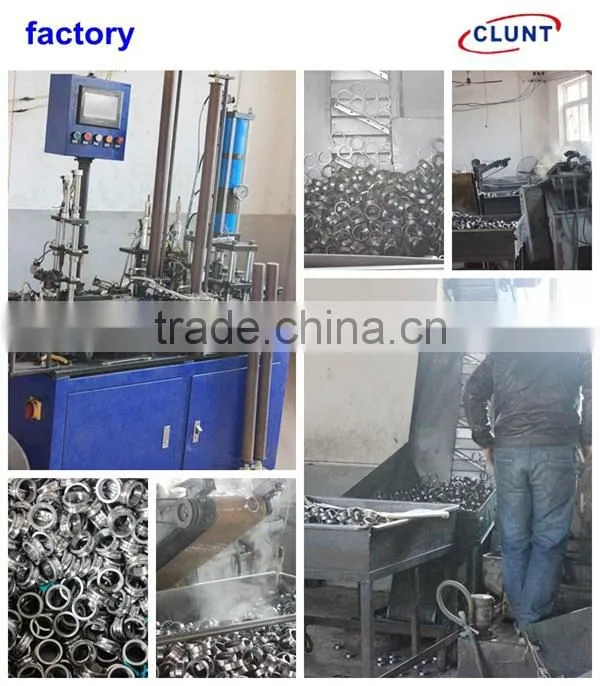

CLUNT factory


Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing .

miniature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feeder



CLUNT certificate

miniature bearing 699 bearing 9*20*6mm used in Feeder

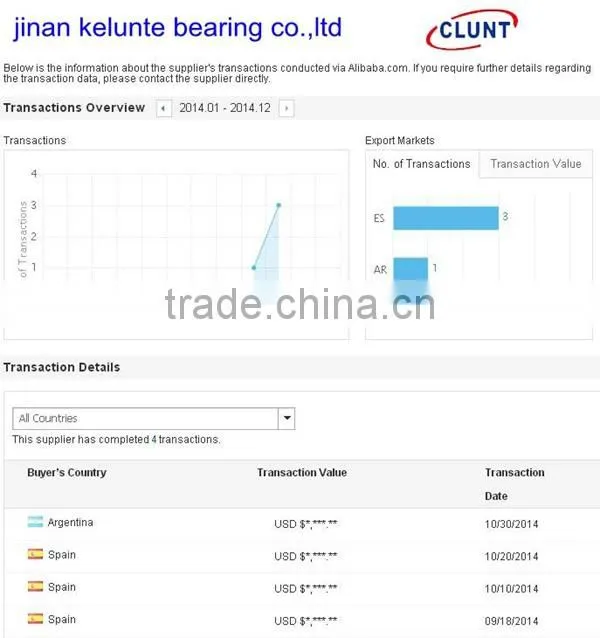

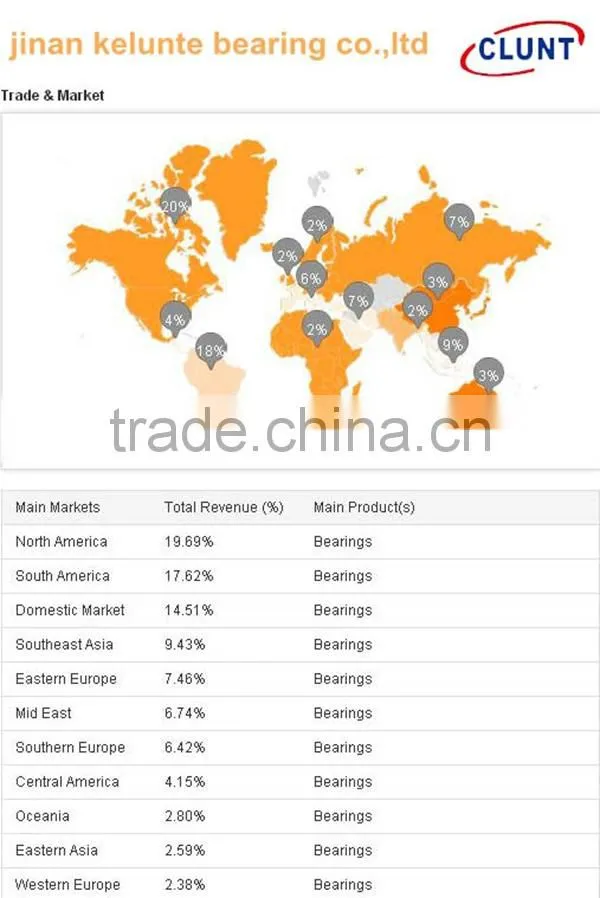

CLUNT market

miniature bearing 699 bearing 9*20*6mm used in Feederminiature bearing 699 bearing 9*20*6mm used in Feeder







FAQ

1.Why I choose you?

Profession and reliability. Everyone likes to blow big bubbles. But we need to be honest with ourselves. We maybe not the most handsome, but we have a heart like fire. To meet the morning sunshine, to enjoy our work every day. Say what we mean and mean what we said is our words to ourselves. We work for our family.

2.How long are their lifetime?

  My friend, with your gentle care,6 months to 36 months for different products.

3.How to deal with the quality problem?

Congratulation! You must be winning lottery!

You will get helps by beautiful ladies from our QC terms. There will be discount, secret gifts, of course the new bearings waiting for you.On the other hand, we have a PPAP of each shipment, so that we knowWhich shipment is bad? We will cut off production line and avoid more loss.

4.Can you take responsibility for me?

Of course, I’m happy to help you! But I just take responsibility for my products. We are not willing to see the quality issues, but if happen this problem we will deal with them according to the actual situation.

  1. Please offer a test report.
  2. If it was our fault, absolutely we can make a compensation for you, my friend
