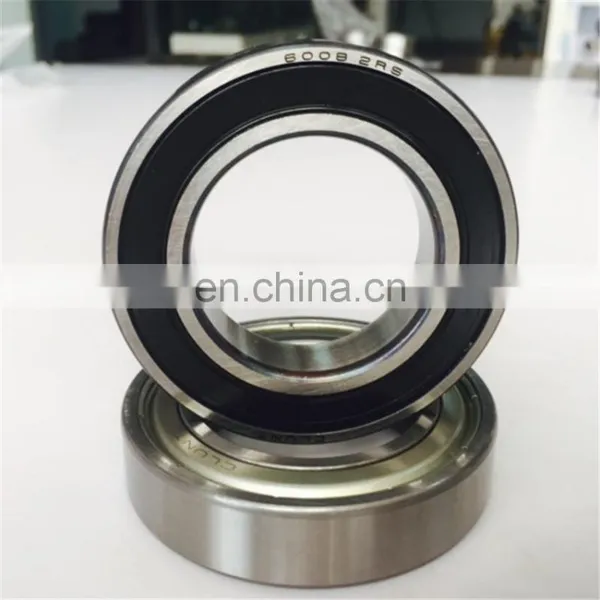

Made in Sweden Deep groove ball bearing 6208-2RS1 48x80x18 Chrome steel bearing 6208 2RS
Descriptions of deep groove ball bearing
Deep Groove Metric Ball Bearings - Sealed
Sealed (2RS1) bearings are fitted with two synthetic rubber seals to prevent leakage of lubricant as well as entry of dust, water and other harmful material.
The seals are made from an oil and wear-resistant synthetic rubber with a steel reinforcement
Operating temperature from -40°C to +120°C
Accepts radial and axial loads
Both standard and C3 clearance available
Single row deep groove ball bearings are especially adaptable. They have a simple design, are non-separable, and are suitable for high speeds. These have a C3 clearance to allow expansion within the bearing at high speeds and temperatures.
The rubber seals on the ball bearing protect against the entry of dust and so on. This also helps to preserve the lubricant. These deep groove ball bearings are versatile, robust and relatively easy to maintain.
Manufactured by Sweden factory
Radial ball bearing
Pre-charged with grease
Double sealed ball race
C3 clearance
Specifications of Deep groove ball bearing 6208-2RS1
| Deep groove ball bearings, single row | |||||||||||
| Product information | Tolerances, see also text | ||||||||||
| Radial internal clearance, see also text | |||||||||||
| Recommended fits | |||||||||||
| Shaft and housing tolerances | |||||||||||
| Principal dimensions | Basic load ratings | Fatigue | Speed ratings | /ass | Designation | ||||||
| dynamic | static | load | Reference | Limiting | |||||||
| limit | speed | speed | |||||||||
| d | D | B | C | C0 | Pu | Explorer bearing | |||||
| mm | kN | kN | r/min | kg | - | ||||||
| 40 | 80 | 18 | 32,5 | 19 | 0,8 | - | 5600 | 0,37 | 6208-2RS1 * | ||
Deep groove ball bearing 6208-2RS1 Usage
6208-2RS1 * bearings are widely used in industrial drive, agriculture, compressors, motors and generators, construction, industrial fan, industrial transmission and other fields. Explorer series bearing of 6208-2RS1 * bearings are better than any brand bearings currently in bearing performance , lifetime, design, and the use of performance. Explorer series bearings of 6208-2RS1 * bearings have more advantages ,such as higher meet rated , lower noise, reducing warranty costs greatly, increasing running time of the machine .
| Item | ID | OD | Width | Chamfer | LOADING(KN) | RUN SPEED | WEIGHT | ||
| R | Dynamic | Static | Grease | Oil | KG | ||||
| mm | Cr | Cor | r/min | r/min | |||||
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.95 | 29000 | 34000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 26000 | 30000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 22000 | 26000 | 0.035 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 20000 | 24000 | 0.04 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 18000 | 21000 | 0.068 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15000 | 18000 | 0.079 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 13000 | 15000 | 0.113 |
| 6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 12000 | 14000 | 0.149 |
| 6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10000 | 12000 | 0.185 |
| 6009 | 45 | 75 | 16 | 1 | 21 | 15.1 | 9200 | 11000 | 0.231 |
| 6010 | 50 | 80 | 16 | 1.1 | 21.8 | 16.6 | 8400 | 9800 | 0.256 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 18000 | 21000 | 0.066 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 16000 | 18000 | 0.106 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 13000 | 15000 | 0.128 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 11000 | 13000 | 0.199 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.7 | 15.3 | 9800 | 11000 | 0.288 |
| 6208 | 40 | 80 | 18 | 1.1 | 29.1 | 17.8 | 8700 | 10000 | 0.366 |
| 6209 | 45 | 85 | 19 | 1.1 | 32.5 | 20.4 | 7800 | 9200 | 0.398 |
| 6210 | 50 | 90 | 20 | 1.1 | 35 | 23.2 | 7100 | 8300 | 0.454 |
| 6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 23000 | 27000 | 0.053 |
| 6301 | 12 | 37 | 12 | 1 | 9.7 | 4.2 | 20000 | 24000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1 | 11.4 | 5.45 | 17000 | 21000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1 | 13.5 | 6.55 | 16000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
| 6305 | 25 | 62 | 17 | 1.1 | 21.2 | 10.9 | 12000 | 14000 | 0.232 |
| 6306 | 30 | 72 | 19 | 1.1 | 26.7 | 15 | 10000 | 12000 | 0.36 |
| 6307 | 35 | 80 | 21 | 1.5 | 33.5 | 19.1 | 8800 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 1.5 | 40.5 | 24 | 7800 | 9200 | 0.63 |
| 6309 | 45 | 100 | 25 | 1.5 | 53 | 32 | 7000 | 8200 | 0.814 |
| 6310 | 50 | 110 | 27 | 2 | 62 | 38.5 | 6400 | 7500 | 1.07 |
Company Profile
Jinan Kelunte Bearing Co.,Ltd was established in 2010 which is located in Fenghuangshan Electricity Industrial Park,Tian Qiao Distirct,Jinan city.Our company is a modern enterprise which combines bearing marketing and production.Our factory covers an area of 10,000 square metres and our plant covers more than 5000 square meters.Our company initroduced our own brand CLUNT.Equiped with modern prodution equipment and advanced inspection equipment, our products are mainly for the high-end market.Our main products:pillow block bearings,deep groove ball bearings,taper roller bearings,linear bearings,cylinderical roller bearings,precision machine tool spindle bearings,spherical roller bearings,oil seals,ect.Our products are widely used in autombiles,high presion motors,speed reducer,vibrating screen,crusher,railway,etc.
Jinan Kelunte Bearing Co.,Ltd takes specialization as core strategy,promoting internationalizion and diversification.Our company devotes to achive domestic and international advanced level.
Jinan Kelunte Bearing C.,Ltd has been a respected and excellet enterprise in bearing industry.We will keep moving forward.
Sample:Usually by EMS, DHL, UPS, TNT, Fedex. Anyway as you like.
Bulk order:Usually by sea.
Delivery:Within 7 days working day for Sample or below 100 pcs ,20-30 days working day for large quantity.The shipment we will arrange as soon as possible. Of course, if it is a custom products,the shipping time will delay.
