6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009
6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009 details:
| Part Number | 6009 Bearings |
| Bearing Type | Shielded or Seal and Open are available. |
| Bore Dia (d) | 45mm |
| Outer Dia (D) | 75mm |
| Width (B) | 16mm |
| Material | 52100 Chrome steel, stainless steel and ceramic are available. |
| Dynamic Load Rating (Cr) (Newtons) | 21000 |
| Static Load Rating (Cor) (Newtons) | 15100 |
| Max Speed (Grease) (X1000 RPM) | 9 |
| Max Speed (Oil) (X1000 RPM) | 11 |
| Clearance | CO, C2 and C3 are available. |
| Weight (g) (grams) | 245.00 |
| Note | ABEC Grades 1, 3, 5, 7, and 9 are available. |
6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009 Features:
Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds.

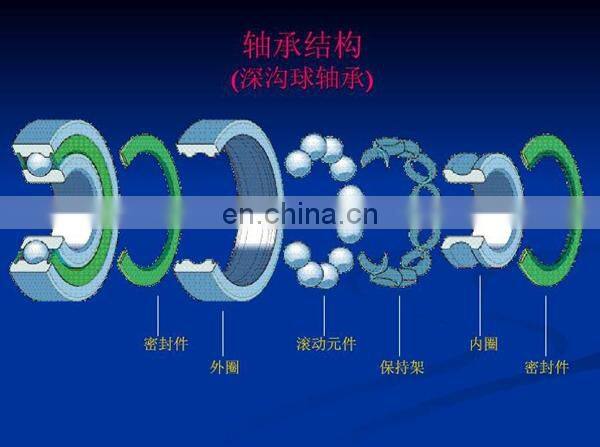

6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009 structure& Processing operations
6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009 application:
Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types.
6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009 catalog:
| TYPE | Overall dimension | Basic Load | Limiting Speeds | Weight | |||||
| d | D | B | rsmin | (Cr) | (Cor) | Grease | Oil | ||
| mm | KN | rpm | KG | ||||||
| 605 | 5 | 14 | 5 | 0.2 | 1.3 | 0.49 | 39000 | 46000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 1.95 | 0.74 | 35000 | 42000 | 0.0058 |
| 607 | 7 | 19 | 6 | 0.3 | 2.6 | 1.05 | 34000 | 40000 | 0.0076 |
| 608 | 8 | 22 | 7 | 0.3 | 3.3 | 1.35 | 32000 | 37000 | 0.01 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 31000 | 36000 | 0.016 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.58 | 1.98 | 30000 | 36000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.38 | 27000 | 36000 | 0.022 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.58 | 2.85 | 23000 | 28000 | 0.031 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.00 | 3.25 | 20000 | 25000 | 0.04 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.38 | 8.02 | 17000 | 21000 | 0.068 |
| 6005 | 25 | 47 | 12 | 0.6 | 10 | 5.85 | 15000 | 18000 | 0.078 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.3 | 12000 | 15000 | 0.11 |
| 6007 | 35 | 62 | 14 | 1 | 16.2 | 10.5 | 11000 | 13000 | 0.148 |
| 6008 | 40 | 68 | 15 | 1 | 17.2 | 11.8 | 9500 | 12000 | 0.185 |
| 6009 | 45 | 75 | 16 | 1 | 21 | 14.8 | 8800 | 11000 | 0.23 |
| 6010 | 50 | 80 | 16 | 1 | 22 | 16.2 | 8300 | 10000 | 0.258 |
| 6011 | 55 | 90 | 18 | 1.1 | 28.1 | 21.2 | 7500 | 9000 | 0.39 |
| 6012 | 60 | 95 | 18 | 1.1 | 29.6 | 23.2 | 6700 | 8000 | 0.42 |

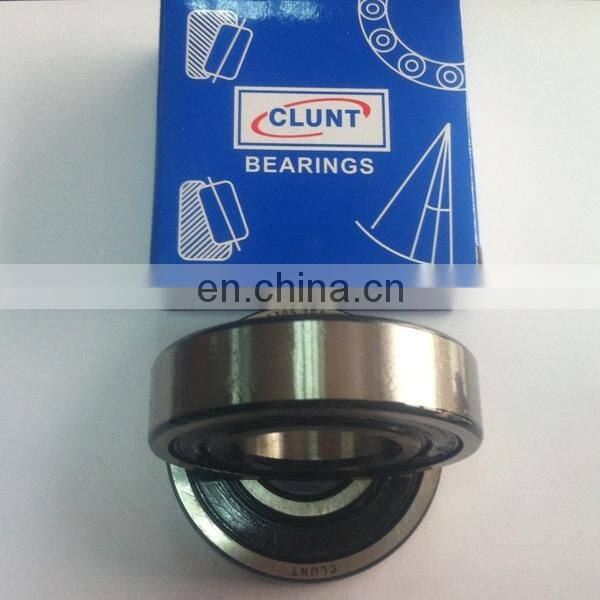

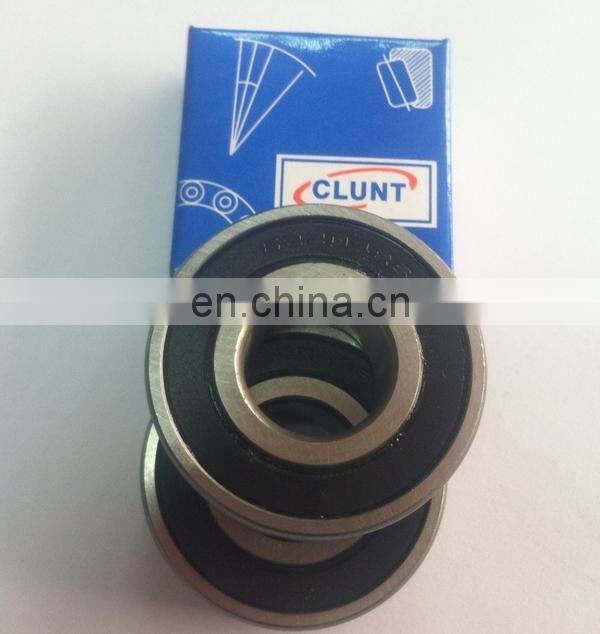

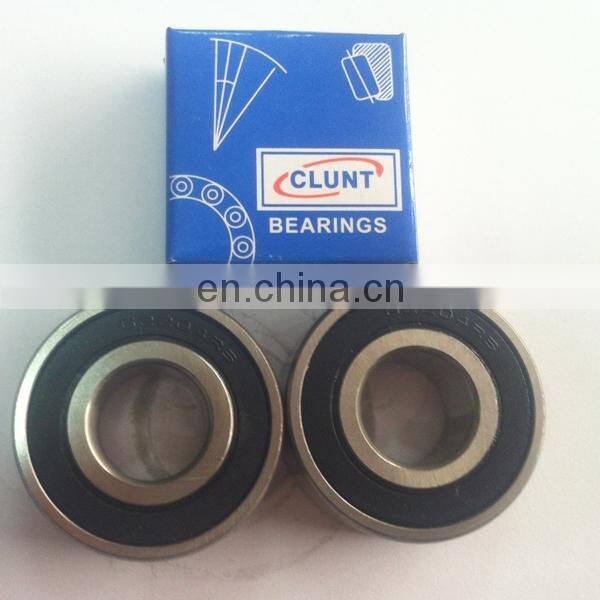

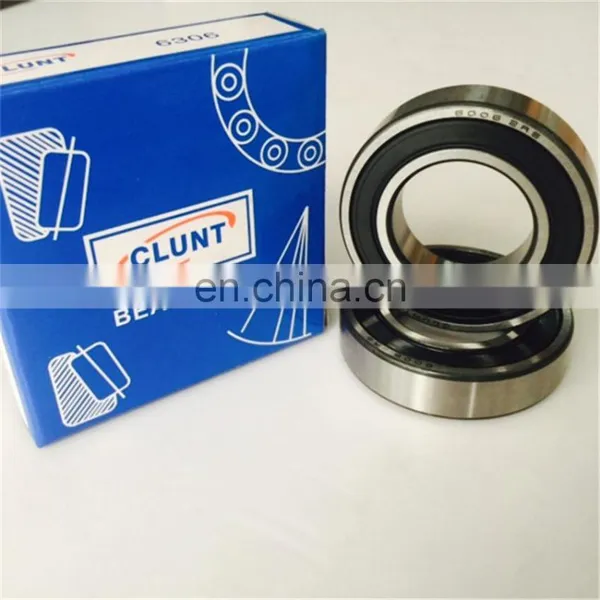

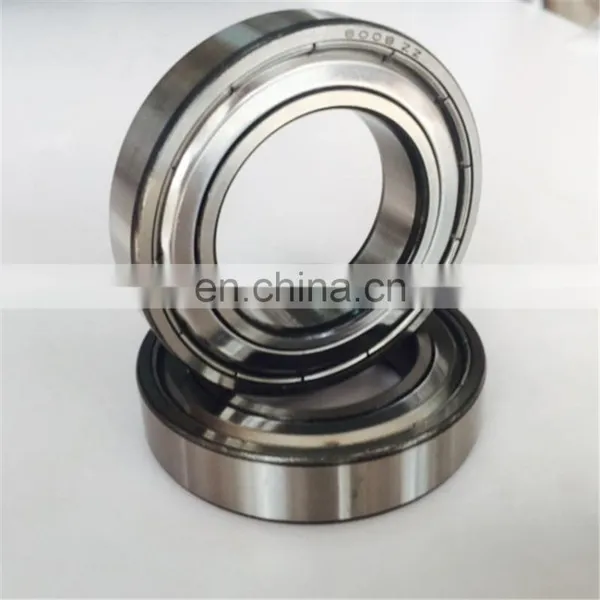

6009-2RS 6009ZZ 6009 ball bearing 6009 for electrical bearing 6009 pictures:

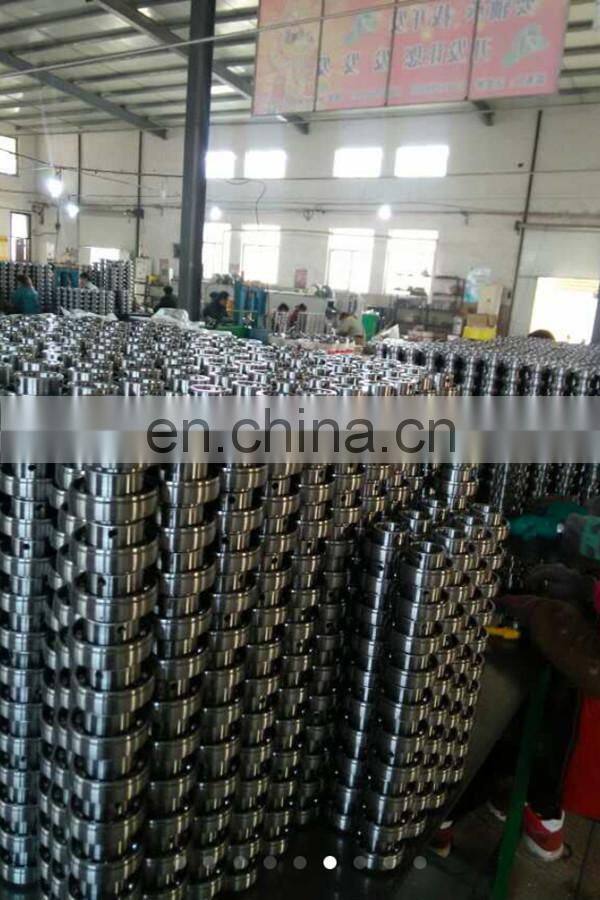

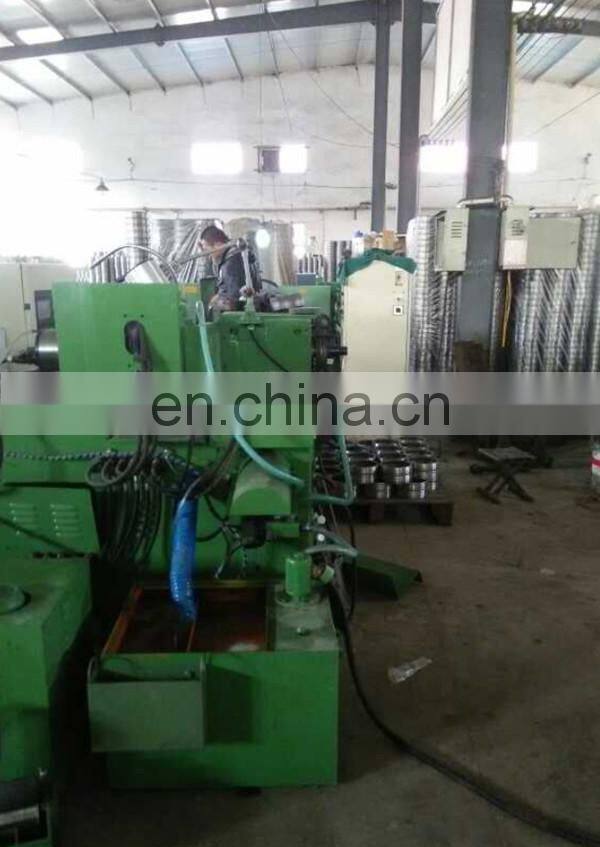

jinan kelunte bearing company’s factory:
jinan kelunte bearing certificate:

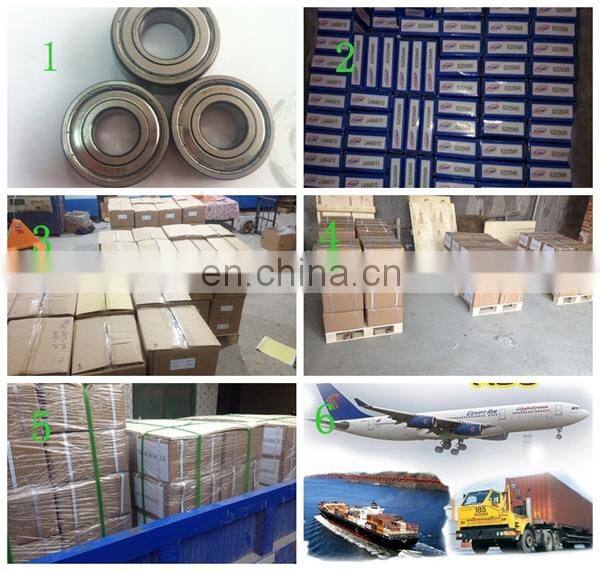

4.jinan kelunte bearing packing and shipping.
1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton
2. Commercial packing: 1pc/plastic bag + color box + carton
3. As the clients' requirement
4.jinan kelunte bearing shipping
.jinan kelunte bearing co.,ltd services
1. Reply your Enquiry in 24 work hours.
2. Experienced staffs answer all your questions influne English
3. Customized design is available,OEM&ODM are welcome.
4. Special discount and protection of sales area provide to our distributor.
jinan kelunte bearing co.,ltd market.
