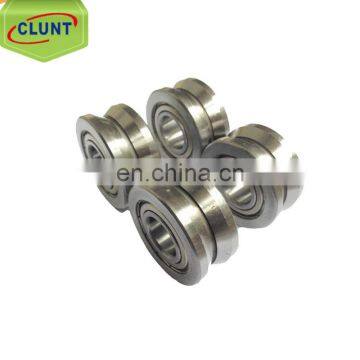

Guangzhou Bearing V Deep Groove Ball Bearing W2 photo-3

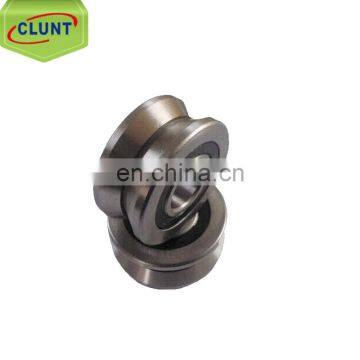

Guangzhou Bearing V Deep Groove Ball Bearing W2 photo-4

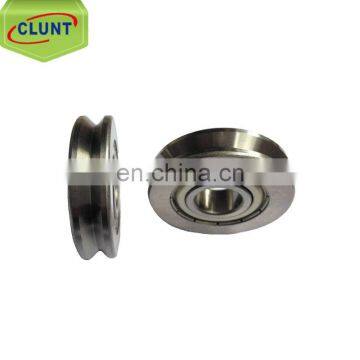

Guangzhou Bearing V Deep Groove Ball Bearing W2 photo-5

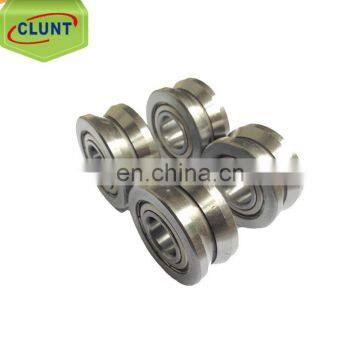

Guangzhou Bearing V Deep Groove Ball Bearing W2 photo-6
US$ 2.6 - 3 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Model Number:
w2
Number of Row:
Double Row
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Model Number w2
Number of Row Double Row
Seals Type steel cage, Open type and sealed
Precision Rating P0 P6 P5 P4 P2
Bore Size 9, 9.525

Guangzhou Bearing V deep Groove ball Bearing W2



Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings.
Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing

deep Groove Guide Bearing W2 v Track Roller bearing



They have limited speed tolerating capacity and hence they are used in vibrators, shakers,conveyors, speed reducers, transmissions, and other heavy machinery. These spherical bearings are manufactured in varying radial thickness and axial widths to accommodate different loads.The Track Roller Bearings not only can carry radial loads but can also carry axial load in two directions...we are LeadingSupplier's, Trader's & Distributor's





√Model NO: w2
√ Type: Guide Bearing
√ Material: Chrome steel
√ size: 9.525x30.73x11.1mm
√ Cage: Steel
√ Dynamic load rating Cr: 8260N
√ Static load rating Cor: 2650N
√ Limiting Speed: 6500RPM



Wheels No . Bore O.D. Width A1 A2 Chamfer r/min Load Weight
mm mm mm mm
  D D B A1 A2 R/min Cw(KN) Cow(KN) Kg
W0 4 14.84 6.35 5.94 9.12 0.3 1 0.5 5
 W1 4.763 19.56 7.87 7.9. 11.86 0.3 2.2 1 11
W2 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
 W3 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
 W4 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280



Product Information:



V guide roller bearings is W type roller orientation system of the main parts in, widely used in industrial robot, cutting equipment, mobile guide rail, production lines, etc.



For the two outer wheel had 90 degrees of V W shaped outside surface. Can be used in the lateral side or with 90 degrees in V type or the V type guide rail, also can use side in fit with cylindrical guide adaptation.



The wheel had double row angular contact ball bearing internal structure design and thickness of the outer lane, make the bearing capacity of the roller has higher.





deep Groove Guide Bearing W2 v Track Roller bearing



Creating a niche of Track Rollers V Guide Wheel Bearings such as Double V Guide Wheel Bearings, Track Roller and Track Rollers with Profiled Outer Ring at its best, with utmost quality.



Features and Benefits of Track Roller Bearings



  • Specially designed to withstand heavy rolling or shock loads on track type and cam controlled equipment for automotive, industrial and airframe applications
  • Constructed from balls, rollers or an economical sector pin design
  • Materials such as carbon steel, high alloy steel, stainless, aluminum, engineered polymers
  • Inch or metric dimensions
  • Threaded, non-threaded or eccentric shafts
  • Screwdriver slot, hexagonal socket or hexagonal shaft mountings
  • Cylindrical or crowned outer ring profile
  • Lubrication to accommodate varying temperature extremes
  • Sealed or un-sealed designs and multiple coatings, platings and post treatments available for different manufacturing environments



v deep Groove Guide Bearing Track Roller catalog:


Wheels No.
Bore
mm
O. D.
mm
Width
mm		 A1 A2   Chamfer r/min
mm
Load
Weight
SUNTHAI D1 D B A1 A2 R/min Cw(KN) Cow(KN) g
W0 4 14.84 6.35 5.94 9.12 0.3 1 0.5 5
  W0X 4 14.84 6.35 5.94 9.12 0.3 1 0.5 5
  W1 4.763 19.56 7.87 7.9. 11.86 0.3 2.2 1 11
  W1X 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 11
W2 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
  W2X 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
  W3 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
  W3X 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
  W4 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
  W4X 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
  W4XL 22 75.39 25.4 31.75 44.45 1.1 20.6 14.3 580
  W4XXL 22 75.39 25.4 31.75 44.45 1.1 20.6 14.3 580
  W1SSX 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 11
  W2SSX 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
  W3SSX 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
W4SSX 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280



deep Groove Guide Bearing W2 v Track Roller bearing pictures

Product Picture
