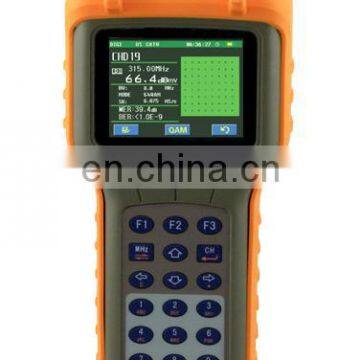

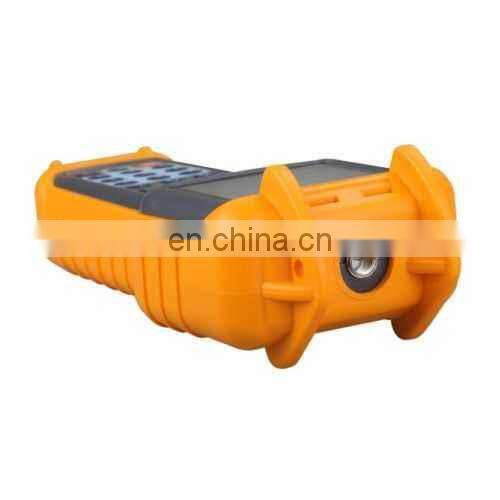

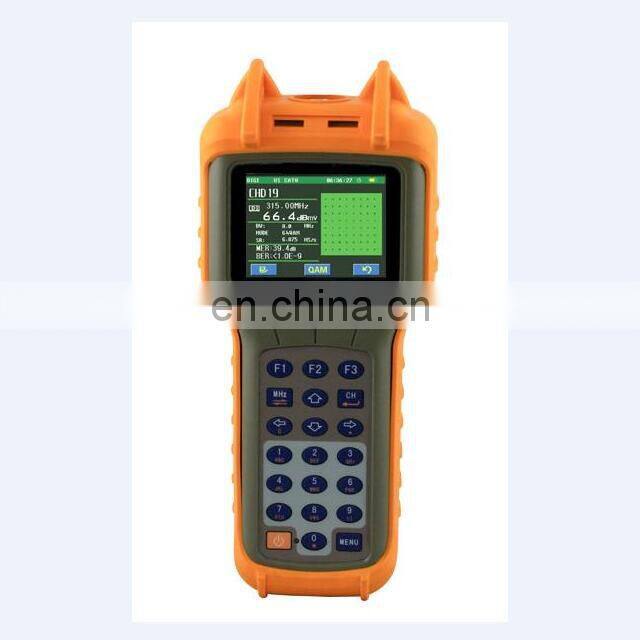

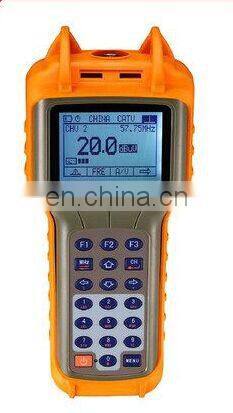

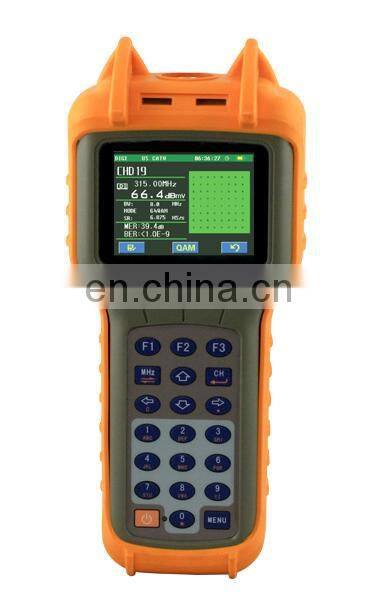

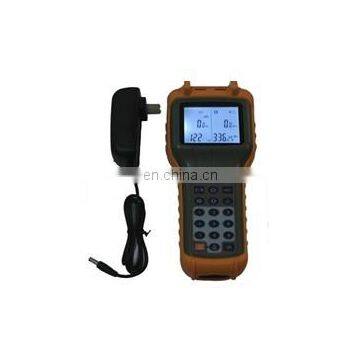

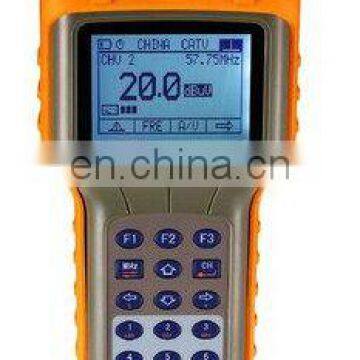

Signal Level Meter RY-S110/S110D
S110/S110D Signal Level Meter is an instrument used for the construction and maintenance of analog TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system. S110/S110D Signal Level Meter is compatible to both analog / digital channels, with strong comprehensive performances; it employs high brightness backlight operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate; S110/S110D is a compact, small light-weight portable signal level measuring
Signal Lever Meters correlation table | ||
Model No | Constellation | Main Parameter |
RY-S110/S110D | No | Doulbe channel, A/V, C/N, Average Power, Trunk line Voltage, |
RY-S128/S128D | No | Spectrum, Channel Power, Tilt , A/V, C/N, Average Power, Trunk line Voltage, |
RY-S200/200D | No | MER, BER, Tilt , A/V, C/N, Average Power, Trunk line Voltage, |
RY-S1127/RY-S1127DQ | Yes | Spectrum, MER, BER , Tilt , Channel Power, A/V, C/N, Average Power, Trunk line Voltage |
RY-S1130/RY1130DQ | Yes | Advanced spectrum, Full automatica scan , MER, BER , Tilt , V/A,C/N , Average Power ,Channel Power, Trunk line Voltage, Threshold, Alarms |
Technical Data
Model No | RY-S110 | RYS110D |
Frequency / channel |
|
|
Frequency scope | 47~870MHz | 5~870MHz |
Channel | U.S. Standard Channel USA STD-CATV | |
Frequency accuracy | +50 * 10E-6 (20 oC +5 oC) | |
Level measurement |
| |
Measuring range: | 30dBuV ~ 120 dBuV | |
Measurement accuracy | +2dB (20 oC +5oC) | |
Resolution | 0.5dB | |
Carrier-to-noise ratio measurement |
| |
Measuring range | 20dB ~ 50 dB | |
Signal input range | 85dBuV | |
Measurement accuracy | + 3dB (20oC +5oC) | |
Channel scan | 150 | |
Voltage measurement |
| |
Input range | 1 ~ 100V (AC / DC) | |
Measurement accuracy | +2V | |
Resolution | 1V | |
Power supply |
| |
battery | 7.2V/1500mAH rechargeable battery | |
AC Supply: | AC 90V-220V 50Hz-60Hz | |
Working time | 6h | |
Charging time | 3h | |
