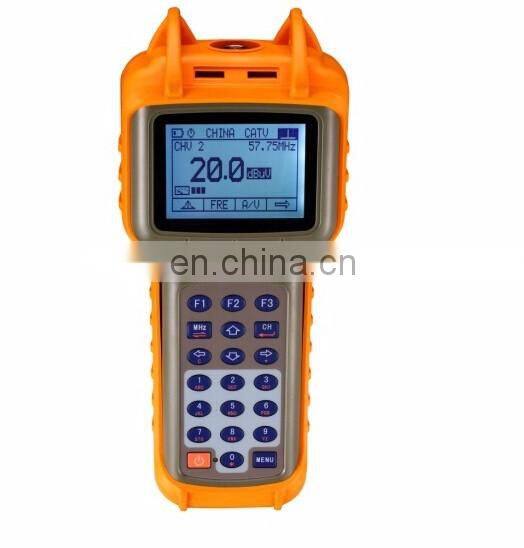

CATV Signal Level Meter RY-S200/S200D
Features
1. A test instrument applicable for the maintenance of CATV (Analog, Digital measurement,TILT)system;
2. Compact, light-weight, easy to carry;

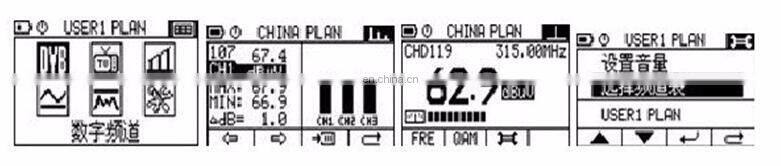

3. With dual-channel measurement display, it is convenient and pragmatic;
4. Able to measure MER, BER Signal Level,Channel Power,V/A,C/N,FM,Trunk Voltage
5.Channel and single frequency mode
Signal Lever Meters correlation table
| ||
Model No
| Constellation | Main Parameter |
RY-S110/S110D | No | Doulbe channel, A/V, C/N, Average Power, Trunk line Voltage,
|
RY-S128/S128D | No | Spectrum, Channel Power, Tilt , A/V, C/N, Average Power, Trunk line Voltage, |
RY-S200/200D | No | MER, BER, Tilt , A/V, C/N, Average Power, Trunk line Voltage,
|
RY-S1127/RY-S1127DQ | Yes | Spectrum, MER, BER , Tilt , Channel Power, A/V, C/N, Average Power, Trunk line Voltage |
RY-S1130/RY1130DQ | Yes | Advanced spectrum, Full automatica scan , MER, BER , Tilt , V/A,C/N , Average Power ,Channel Power, Trunk line Voltage, Threshold, Alarms |
Technical Data
Model | RY-S200 | RYS200D |
Digital DVB |
|
|
Frequency scope | 47~870MHz | 5~870MHz |
Modulation | DVB-C/ITU-T | |
Support | 64QAM/256QAM(option) | |
Digital average power | 30dBuV ~ 110dBuV | |
precision | +2dB | |
Symbol rate | 1MS/S-7 MS/S | |
Modulate error rate(MER) | 22dB ~ 39dB | |
Bit error rate(BER) | RS 1E-3~1E-9 | |
Analog TV |
| |
Frequency scope | 46/5~870MHz | |
level | 20dBuV ~ 120dBuV | |
precision | +1.5dB | |
Channel scan | 150 | |
Power supply |
| |
battery | 7.2V/1500mAH rechargeable battery | |
AC Supply: | AC 90V-220V 50Hz-60Hz | |
Working time | 6h | |
Charging time | 3h | |
