Without Head Vegetable Cutting Machine

Without Head Vegetable Cutting Machine thumbnail-1
Without Head Vegetable Cutting Machine thumbnail-2
Without Head Vegetable Cutting Machine thumbnail-3
Without Head Vegetable Cutting Machine thumbnail-4
Without Head Vegetable Cutting Machine thumbnail-5
Without Head Vegetable Cutting Machine thumbnail-6
Without Head Vegetable Cutting Machine thumbnail-7
Without Head Vegetable Cutting Machine photo-1
Without Head Vegetable Cutting Machine photo-2
Without Head Vegetable Cutting Machine photo-3
Without Head Vegetable Cutting Machine photo-4
Without Head Vegetable Cutting Machine photo-5
Without Head Vegetable Cutting Machine photo-6
Without Head Vegetable Cutting Machine photo-7
US$ 300 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chuangyuan
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Dezhou Chuang Yuan Food Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chuangyuan
Place of Origin Shandong, China
Product Description
 1) There are rack, conveyor belt, with vegetables, sliced bodies, speed control box or tower wheel speed governing body composition. 2) Centrifugal slicing machine for melons hard slices, slices can be automatically adjusted within a certain range, vertical blade can be part of the soft-cut vegetables or slices processed into different specifications of the block, small, diamond-shaped, etc. Cut the length of various shapes.
With head multi-vegetable cutting machine:
1, multifunctional use: cut all the vegetables; 2. With interchangeable blades, cut slices, strips, flap s, chips, cubes, rhombuses and folds etc;
3.Long Stem vegetables：cut into sections，such as ：leek，celery，garlic sprouts and peppers etc.

Without head multi-vegetable cuttingmachine:
Special for cut into section and cut slice machine.
Range of Application
1) Product slicing knife and vertical knife, installed with safety shield and protective net, do not arbitrarily removed, so as to avoid danger. 2) When the machine is running, do not put your hand near the cutter or into the safety net to avoid danger
Size Information
Machine model:
Voltage:
 power:
Production
Material
Machine size
YQC-330
220V/380V
750W
100-150KG/H
Stainless steel
70*74*53cm
YQC-660
with head
220V/380V
750W
100-300KG/H
Stainless steel
86*43*80cm
YQC-660
without head
220V/380V
750W
100-300KG/H
Stainless steel
70*43*80cm
YQC-1000
with head
220V/380V
1500W
200-700KG/H
Stainless steel
130*60*110cm
YQC-1000
without head
220V/380V
1500W
200-700KG/H
Stainless steel
90*32*67cm
YQC-2000
220V/380V
3000W
300-1000KG/H
Stainless steel
116*53*126cm
Model
without head
YQC-660
Voltage
110V/220V/380V
Power
750W
Material
Staniless steel
Production
100-300KG/H

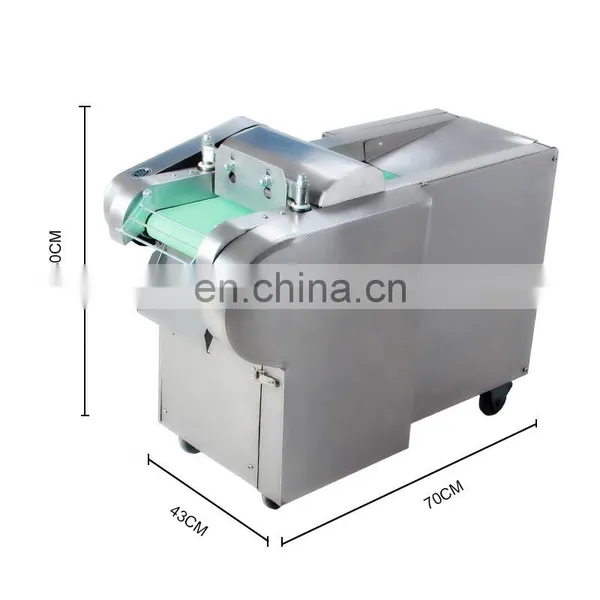

Machine size
70*43*80cm
Detailed Images
Conveyor belt
Manufacturing of high quality rubber materials，high efficient wear resistant.

    • Outlet guardrail


Prevent operational errors，accidental injury
Blades

1, Multifunctional use: cut all the vegetables. 2. With interchangeable blades, cut slices, strips, flaps, chips, cubes, rhombuses
and folds.

    • Stainless steel body


Prevent operational errors，accidental injury
Waterproof switch

Waterproof safer, more assured to use

    • universal wheel


Bottom universal wheel is convenient to move

Delicate ratchet gear chain

Smooth operation，Sturdy and durable，High-strength Wear-resistant, Precise bite

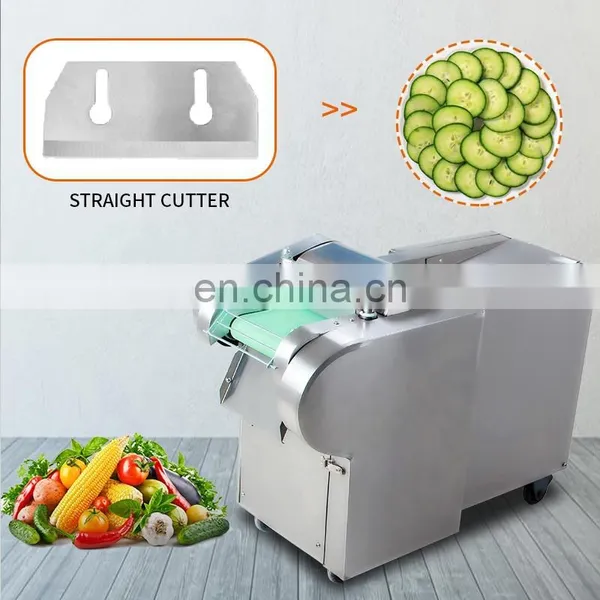

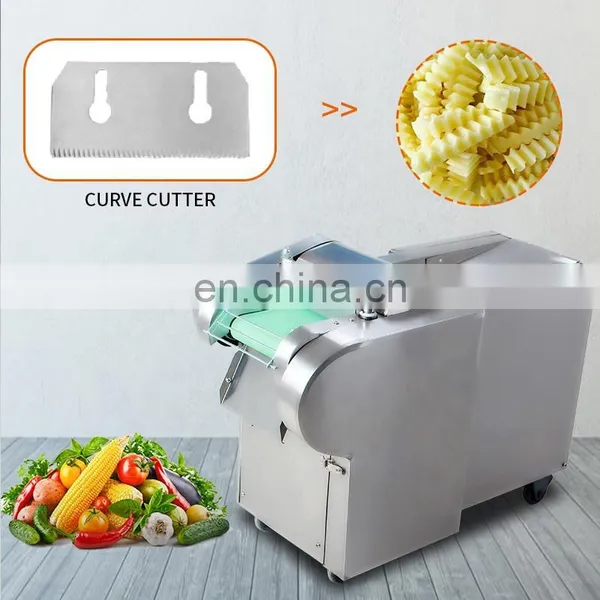

Two knife

Straight cutter，Curve cutter

Installation and commissioning
1) MUL-vegetable cutting machine on the level of the workplace, but mul-vegetable cutting machine is placed stable and reliable. 2) Check all parts before use, fasteners are loose in transit, switch and power cord is damaged due to transport and take appropriate measures in time. 3) Check the rotating barrel or conveyor belt for foreign matter, if foreign body must be clean, so as not to cause damage to the tool. 4) Make sure that the supply voltage matches the rated voltage of the unit. In the field ground, marked reliable grounding, the power cord to find professional electrical extension of the power cord will be connected to the full power disconnect the power from the big open, turn on the power, press the "ON" button, check the steering wheel, V Of the steering and consistent with the right. Otherwise, cut off the power, adjust the wiring.
2. Use the operation 1) Work before the first try to observe the cut vegetables specifications and specifications are the same, or adjust the thickness of cutting slice or chopped vegetables to meet the requirements of the normal work. 2) Install the vertical cutter: first turn the adjustable eccentric wheel, so that the tool post line to the bottom dead center, and then make the knife to lift 1/2 mm, so that the vertical knife and conveyor belt contact, tighten the nut to the vertical knife tight Fixed on the turret. Description: Elevated height can be controlled according to the cut vegetables. If the height of the elevated lift, the vegetables may be even knife, if the elevated elevated height is too large, it is possible to cut the conveyor belt. 3) Turn the adjustable eccentric wheel, loosen the connecting rod to fasten the screw to cut the filament to move the fulcrum, from the outside to the inside; cut thick, can move the fulcrum, from the inside outward, after adjusting the fastening adjustment screw. 4) Vegetables should be cleaned vegetables, spaghetti mixed vegetables in the foreign body, damage to tools and other parts.
Safety precautions and precautions
1) Product slicing knife and vertical knife, installed with safety shield and protective net, do not arbitrarily removed, so as to avoid danger. 2) When the machine is running, do not put your hand near the cutter or into the safety net to avoid danger
CE Certificate
Packing&Shipping
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
1.The mode of transportation we according to the size of the goods or the customer requirements, the samll package will take the
DHL , TNT, UPS ect , the large size package machine will take the sea shipping and 20ft, 40ft, 40hp container.
2. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity.
Company Introduction
Chuangyuan Food Machinery Co,. LTD. established in 1996, we are a professional food machinery manufacturer. Today Chuangyuan food machinery is a well-known brand around the world specializing in deep-processing equipment which consists of vegetables processing series, poultry cleaning and processing, rice processing series and leisure food production series. Chuangyuan has become a leading high-tech enterprise commanding its authority in research and development, manufacturing and marketing. We uphold to create value for our customers , contribute to the community : casting industry high-tip quality and become one of the most trusted brands within the community! Our business objectives: produce highest cost-effective products and with utmost paramount importance to provide superior customer experience! We are willing to work with you hand in hand to create a brilliant tomorrow!
If you need our machines , please free feel to contact us . We welcome your inquiry anytime and look forward to work with you!
