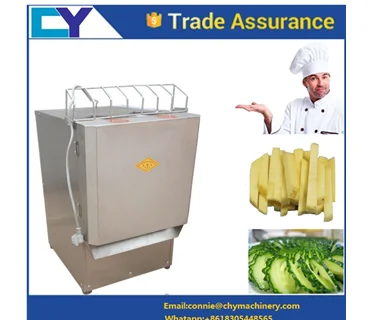

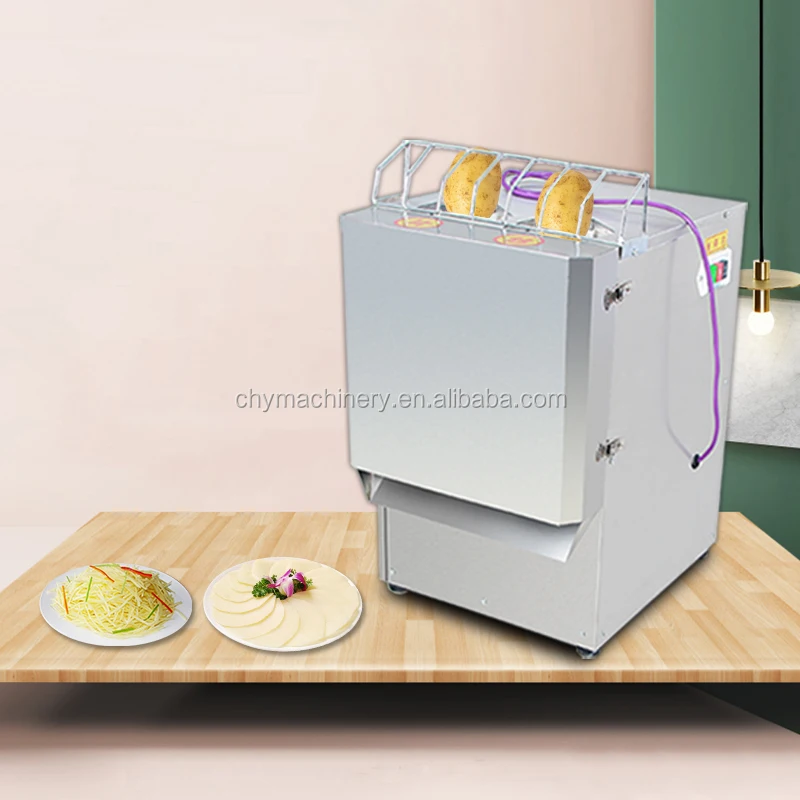

Vegetable cut into strips Machine
Detail of the potato chips making machine :
1.Characters of the vegetable slicing machine:
The potato chips making machine can cut all kinds of the vegetables into all kinds of
the shapes , it adopts the technique of variable speeds and centrifugal slicing structure .
2.Introduction of the potato chips making machine :
potato chips making machine cutter's a composite and multinational cutter ,which is designed simulating the principle of hand cutting and adopting the advanced technique of variable speeds and centrifugal slicing structure . the vegetable cutter is widely used for processing industry.
by changing various blades of the machine can cut the root and stem vegetables(tomato ,yam ,carrot ,eggplant ) into many shapes such as strips ,slices , cubes ,rhombus and waves .
the vegetable cutter's also fit for segmenting the stem vegetables(leek ,celery ,beanstalk )and shredding various leafy vegetable (kelp ,cabbage)
the thickness of the produced vegetable can be adjusted.
Name |
Fruit Vegetable Slicer Shred Cutting Machine |
Model |
CP-30 |
Voltage |
110V/220V/380 |
Package size |
68*51*77cm |
Power |
1500W |
Material |
Stainless steel |
Gross weight |
70kgKG |
Model |
Dimension (mm) |
Voltage |
Power |
Processing shreds size |
Processing slices size |
CP-30 |

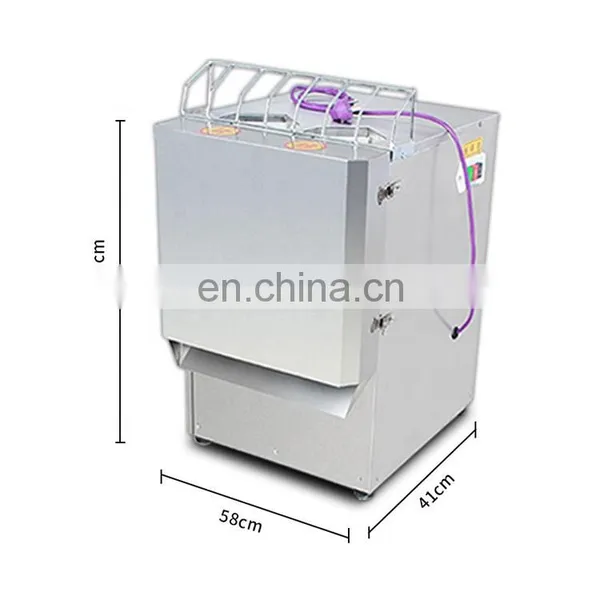

58*41*65.5CM |
220V |
1500W |
3mm 5 mm |
2mm-7 mm |

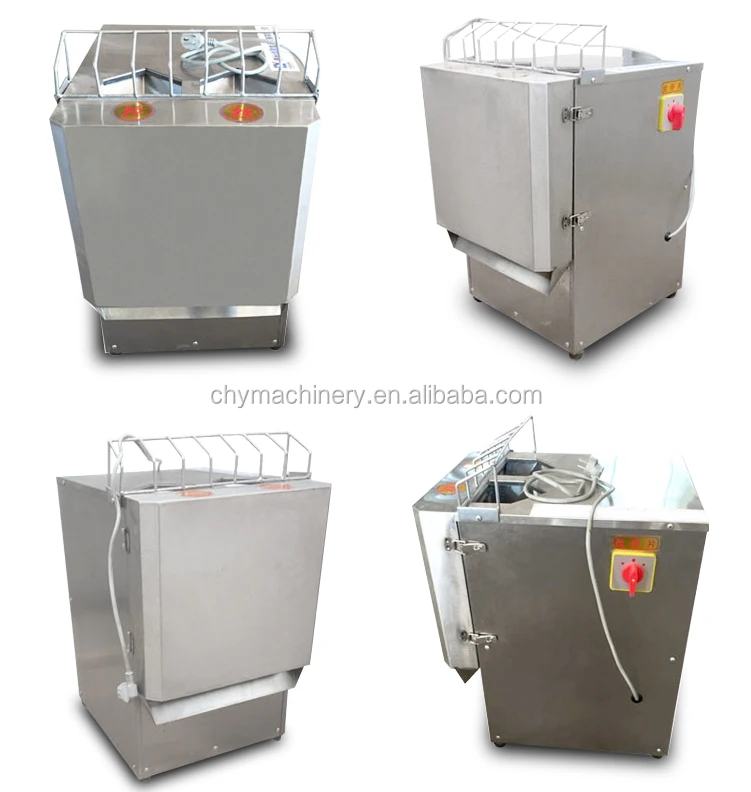

full automatic vegetable slicer sale vegetable shredding machine features:
Durable stainless steel and smooth surface
Duty compact design and nice-shaped
High-performance and high capacity(slice:100-150kg/h;shred:100-150kg/h)
Easy to clean easy to operate
Slicer thickness:3/5 mm;shredder thickness 2-7mm
Can slice and shred fruit and vegetable
CE CCC and ISO approval certification
100% copper generator
Time and labour saving
Fashionable design also your kitchen aid
Using the latest high-tech methods
Ideal for using in commercial kitchens,restaurant,your chef places and hotel
.

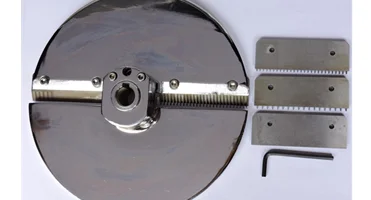

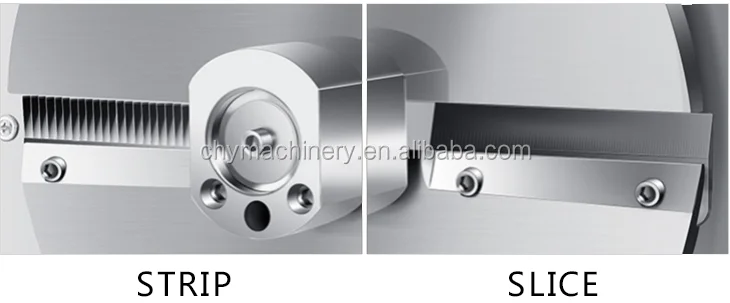

2.Machine cutting blade. Slicer
thickness:3/5mm ;
shredder thickness:2-7mm

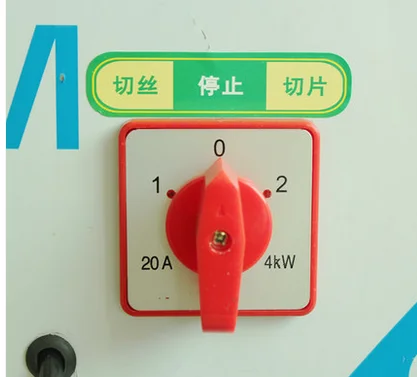

3.Push-button rotary switch
Manual cutting

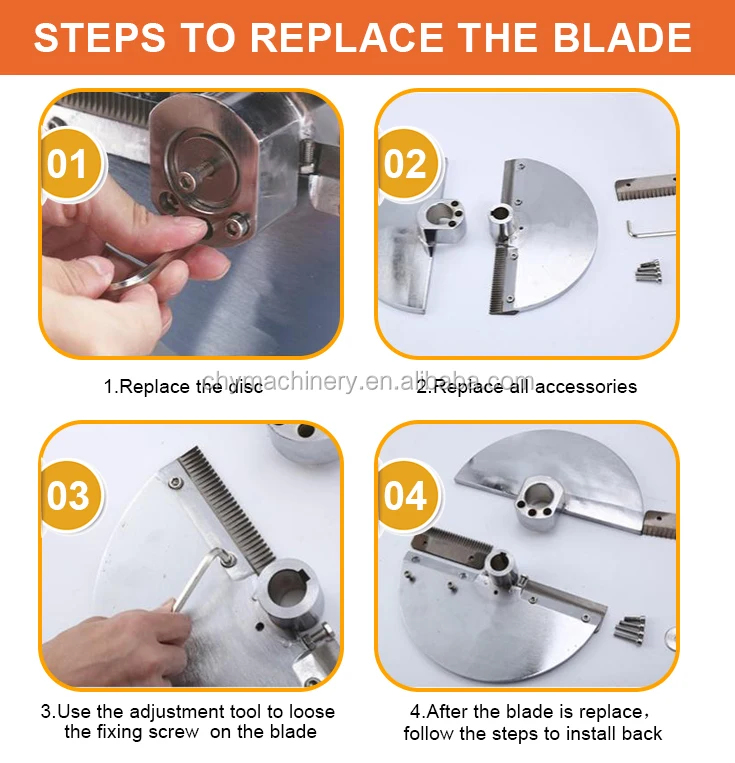

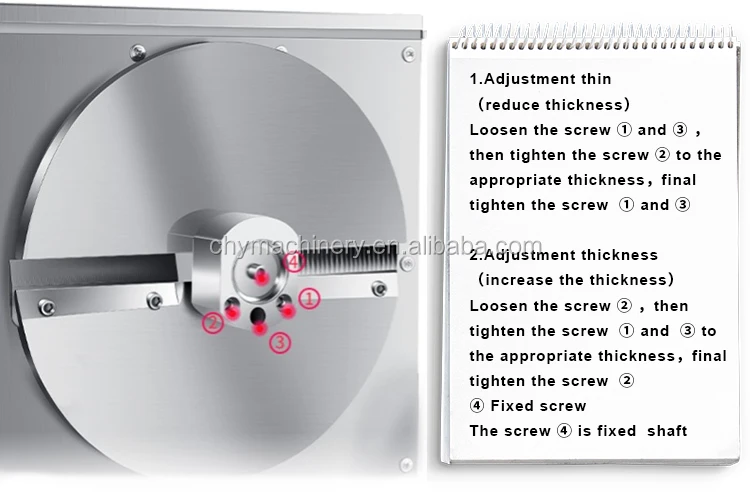

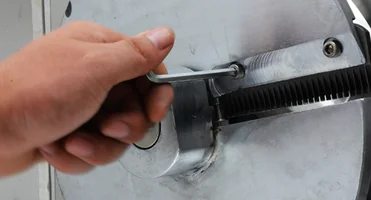

The potato chips making machine install two knife(slicer knife and shredder knife).There are four thickness for you.You can shred your vegetable and fruit into (3/5mm) thickness.And also you can adjust the thickness of the slicer knife through adjusting the cutter disk.And the parts of the vegetable&fruit cutter are easy to dismantle for cleaning.It is full automatic and easy to operate.
Machine cutting :
All full automated , fast processing time, saves the manpower, the clean health and high efficiency
1. Open the machine buckle, check the internal blade in case other objects;
2. Prepare container in the outlet mouth;
3. Turn on the power, start the corresponding cuting shred or slice switch,then work;
4. Due to motor power larger and irregular fruitsThe machine , cutting out the product will appear the splash, you can use the
following method to avoid spilling a place; 1) with a large container below outlet mouth; 2) paste some paper Around outlet mouth;
3) put the tray high, as close to the inlet mouth;
5. During the use of the machine, if any abnormal situation occurs (for example, the cylinder enters the hard object), the power
switch should be quickly turned off. After the trouble is removed, the machine restarts and the machine works normally.

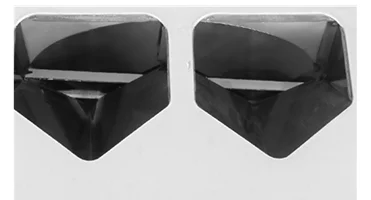

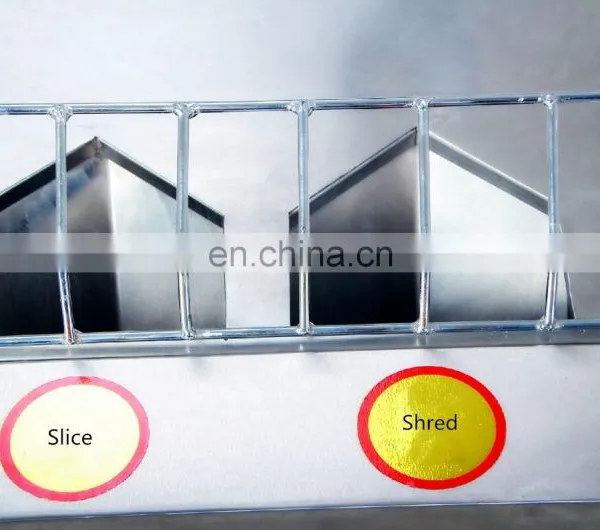

Feeding hole

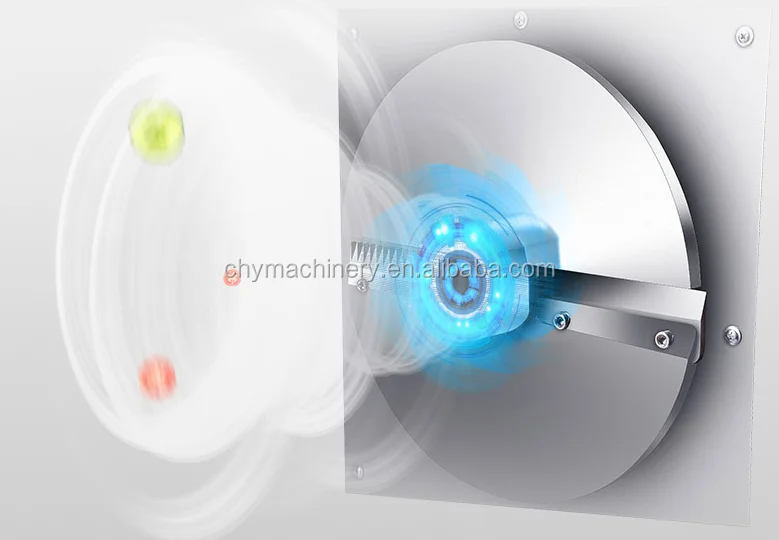

Machine detail blade
Safety lock design,

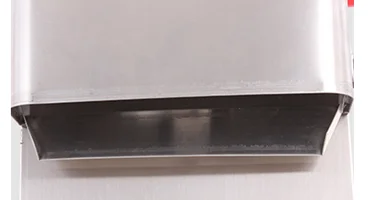

Machine large export door

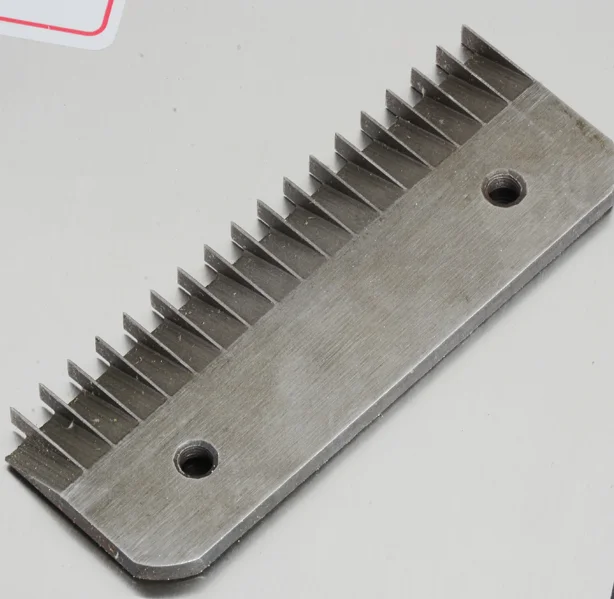

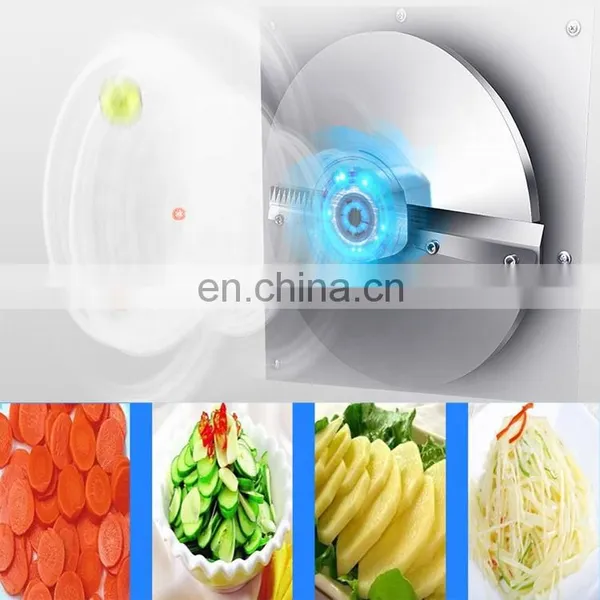

Machine blade
Machine blade
1.The mode of transportation we according to the size of the goods or the customer requirements, the samll package will take the DHL , TNT, UPS ect , the large size package machine will take the sea shipping and 20ft, 40ft, 40hp container
2. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity..
Chuangyuan Food Machinery Co,. LTD. established in 1996, we are a professional food machinery manufacturer.
Today Chuangyuan food machinery is a well-known brand around the world specializing in deep-processing equipment which consists of vegetables processing series, poultry cleaning and processing, rice processing series and leisure food production series.
Chuangyuan has become a leading high-tech enterprise commanding its authority in research and development, manufacturing and marketing.
We uphold to create value for our customers , contribute to the community : casting industry high-tip quality and become one of the most trusted brands within the community!
Our business objectives: produce highest cost-effective products and with utmost paramount importance to provide superior customer experience!
We are willing to work with you hand in hand to create a brilliant tomorrow!
