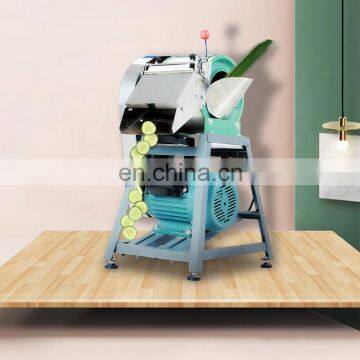

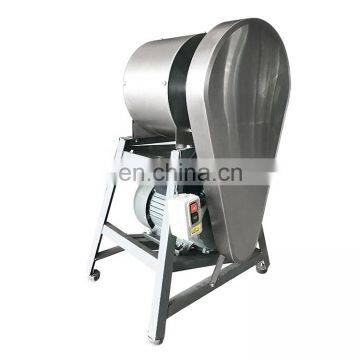

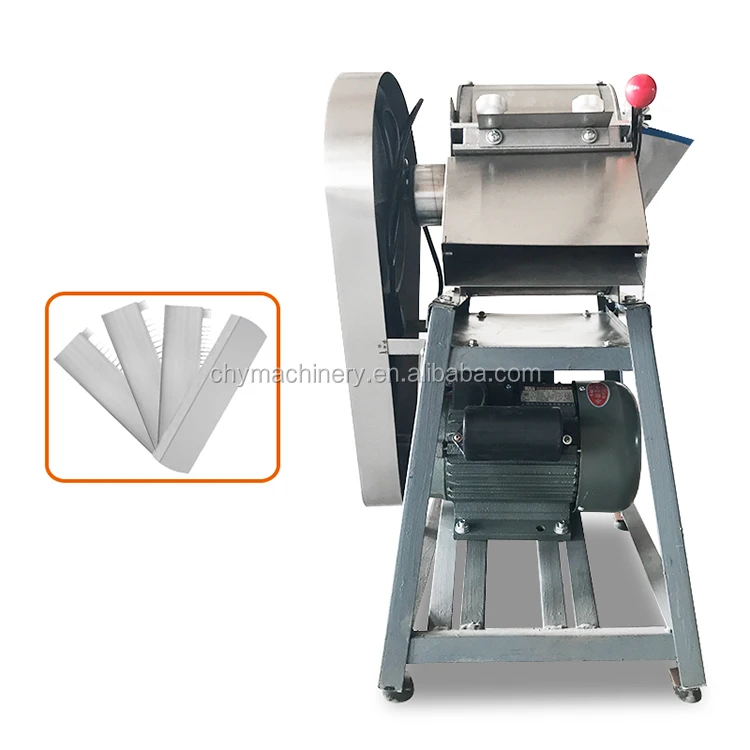

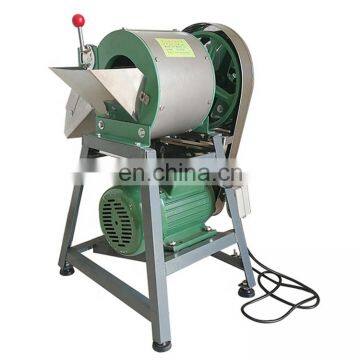

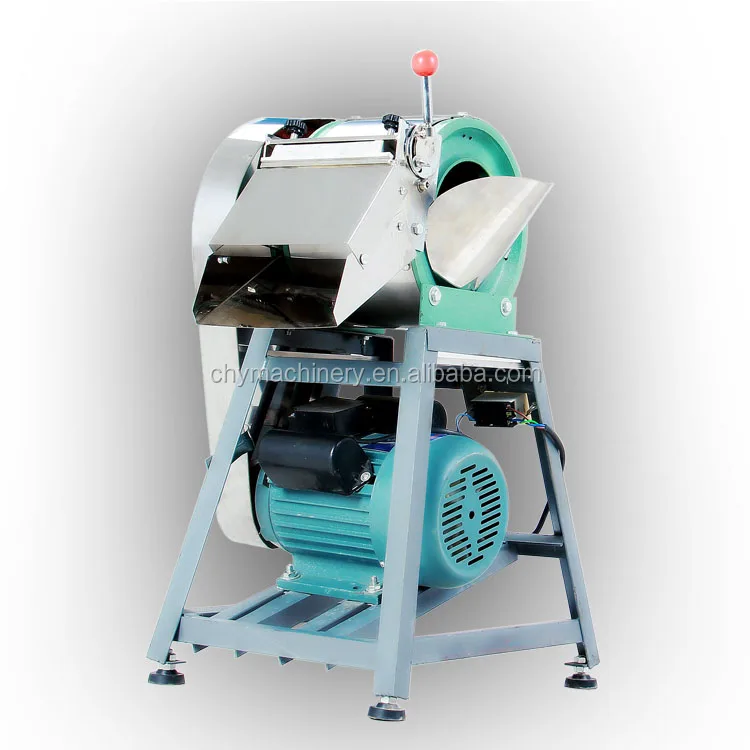

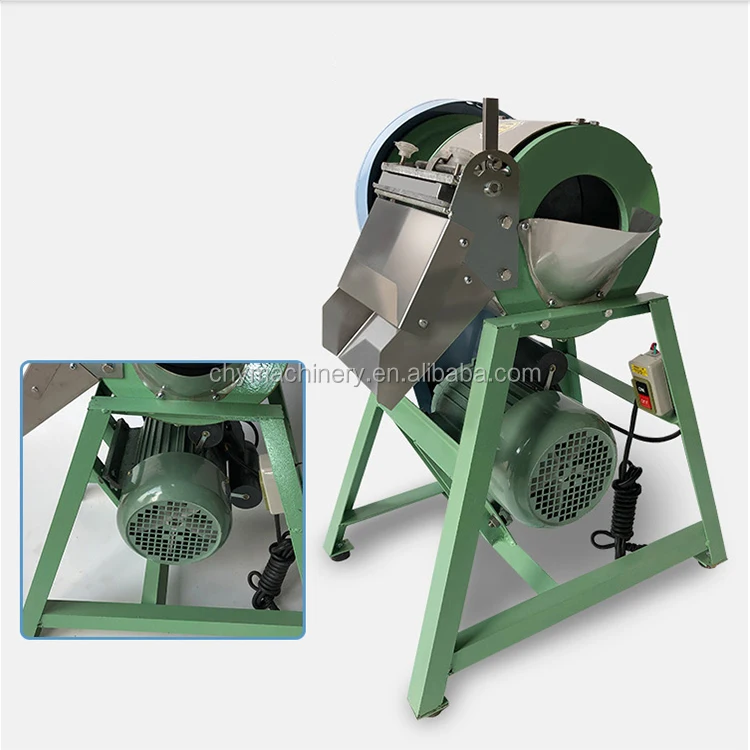

Eggplant Vegetable Cutter Slicer/commercial Vegetable Dicing Machine/eggplant Shredding Cutting
US$ 140 - 140
MOQ: 1 Case
Key Specifications
Get Latest Price
Brand Name:
CY
Place of Origin:
China
After-sales Service Provided:
Free spare parts
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Vegetable Slicer Onion Slicing Cutter Machine Vegetable Potatoes Carrots Cutting MachineUS$ 140 - 140MOQ: 1 Case -
Industrial Root Vegetable Slicing Machine Vegetable Cutting Machine on SaleUS$ 140 - 140MOQ: 1 Case
-
Vegetable Cutter Machine Multifunction Industrial Slicer Shredder Electric Dicing MachineUS$ 140 - 140MOQ: 1 Case
-
High Effciency Vegetable Cutting Machines Equipment for Multi Purpose UseUS$ 140 - 140MOQ: 1 Unit
-
Multi-functional Electric Slicer Fruit Cutting Industrial Vegetable Cutter MachineUS$ 140 - 140MOQ: 1 Unit
Brand Name
CY
Place of Origin
China
Product Description
Eggplant Vegetable Cutter Slicer/commercial Vegetable Dicing Machine/eggplant Shredding Cutting
Model |
PS-30 |

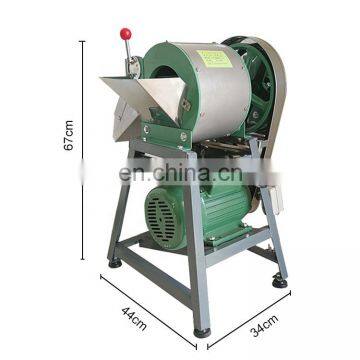

Size |
440*340*670MM |
Weight |
38KG |
Voltage |
110/220/380V |
Cutting size |
2-8 MM |
Cutting Shape |
Slice,strip and cube |
Material |
Stainless steel |
Capacity |
250-350KG/H |
How to use the machine?

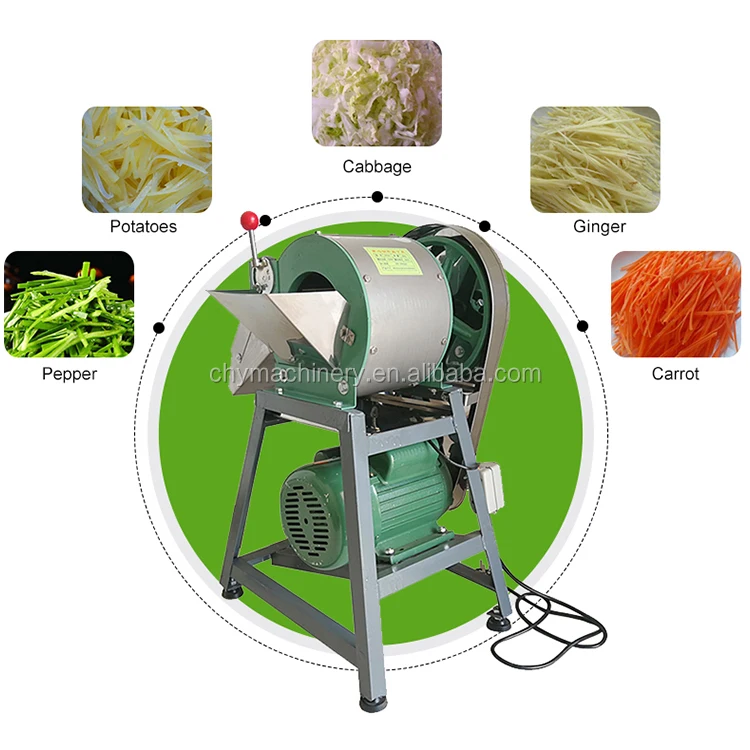

Vegetable Cutting Machine is suitable for Potatoes, radishes, sweet potatoes, carrots, cabbage, melon, lettuce, onions, pumpkin, pickled pimples, mustard greens, taro, pleurotus eryngii, lotus root, purple potato, eggplant, green pepper, ginger, winter melon, papaya Vegetable slices shredded

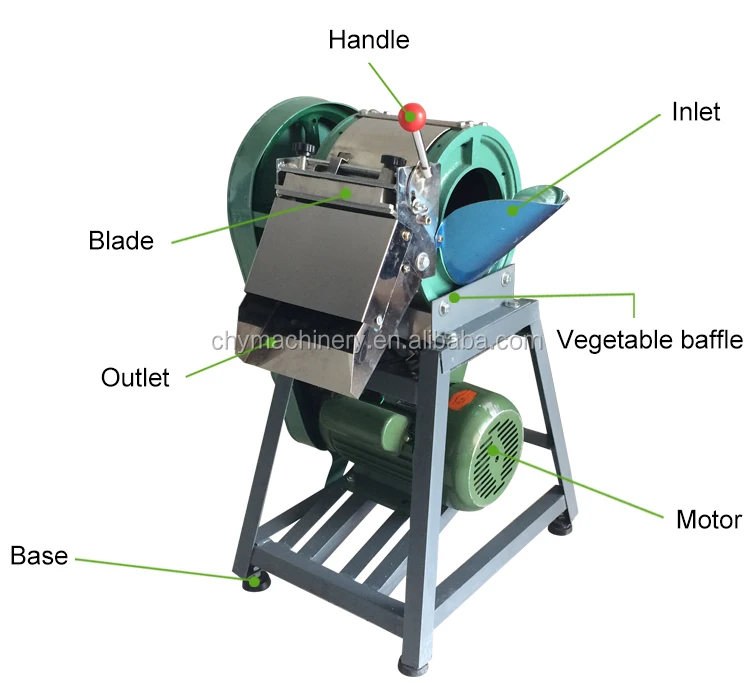

1. Before starting vegetable cutting machine, please check whether there are objects in the barrel. If there are no objects,
please install the round dustpan equipped with the machine to the food inlet, and install the two square dustpans (buckled
together) to the outlet. Turn on the power, turn on the switch, put the vegetables after the motor runs normally, and it is
strictly forbidden to start the load. 2. User selects a matching cutter according to his needs. Steps for installing the cutter:
Loosen the butterfly nut, rotate the thickness adjustment handle toward the inlet, adjust to the thinnest position, the cutter
blade is upward, install it on the knife holder, pay attention to push with one hand While holding the cutter, use your other hand
to turn the two fixed knobs. When turning, do not turn one knob at a time to the end. This may squeeze the cutter and require the
two knobs to be tightened gradually. After fixing, it is recommended to touch whether the tip of the cutter is beyond the blade
edge of the slicer. If it exceeds a little bit, it is installed in place. Finally, rotate the handle to the desired thickness and
tighten the butterfly nut.
please install the round dustpan equipped with the machine to the food inlet, and install the two square dustpans (buckled
together) to the outlet. Turn on the power, turn on the switch, put the vegetables after the motor runs normally, and it is
strictly forbidden to start the load. 2. User selects a matching cutter according to his needs. Steps for installing the cutter:
Loosen the butterfly nut, rotate the thickness adjustment handle toward the inlet, adjust to the thinnest position, the cutter
blade is upward, install it on the knife holder, pay attention to push with one hand While holding the cutter, use your other hand
to turn the two fixed knobs. When turning, do not turn one knob at a time to the end. This may squeeze the cutter and require the
two knobs to be tightened gradually. After fixing, it is recommended to touch whether the tip of the cutter is beyond the blade
edge of the slicer. If it exceeds a little bit, it is installed in place. Finally, rotate the handle to the desired thickness and
tighten the butterfly nut.

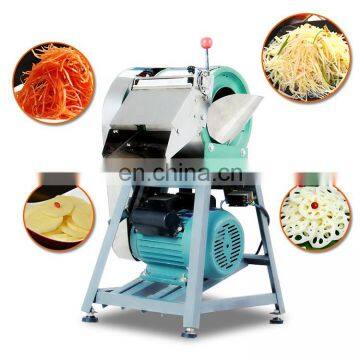

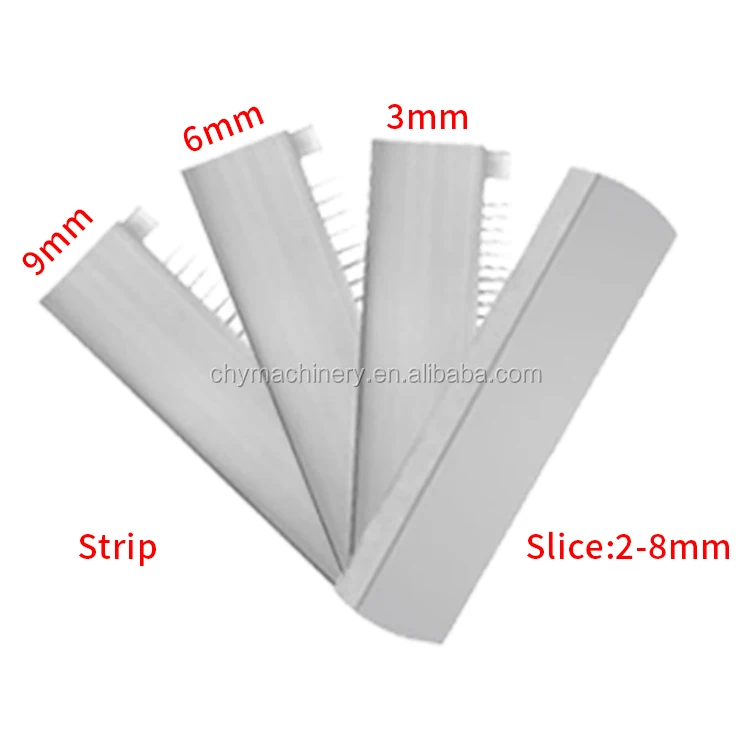

3. How to slice , shred and Cube
(1) Only the slicing knife is installed, and the slice is the slice, and the slice with a
thickness between 2mm-8mm can be obtained by adjusting the thickness and adjusting the handle. There will be some unevenness in
the thickness of the sheet, which is determined by the principle of the machine.
thickness between 2mm-8mm can be obtained by adjusting the thickness and adjusting the handle. There will be some unevenness in
the thickness of the sheet, which is determined by the principle of the machine.
(2) When the slicing knife and the wire cutter
are installed at the same time, the wire comes out. The width of the wire is adjusted by replacing the wire cutter, and the
thickness is adjusted by adjusting the handle.
are installed at the same time, the wire comes out. The width of the wire is adjusted by replacing the wire cutter, and the
thickness is adjusted by adjusting the handle.
(3) Cut the silk and put it into the barrel for processing once again.
4. After using the machine, please wipe the bucket clean with a damp cloth in time. Store in a ventilated and dry place.
Related Products

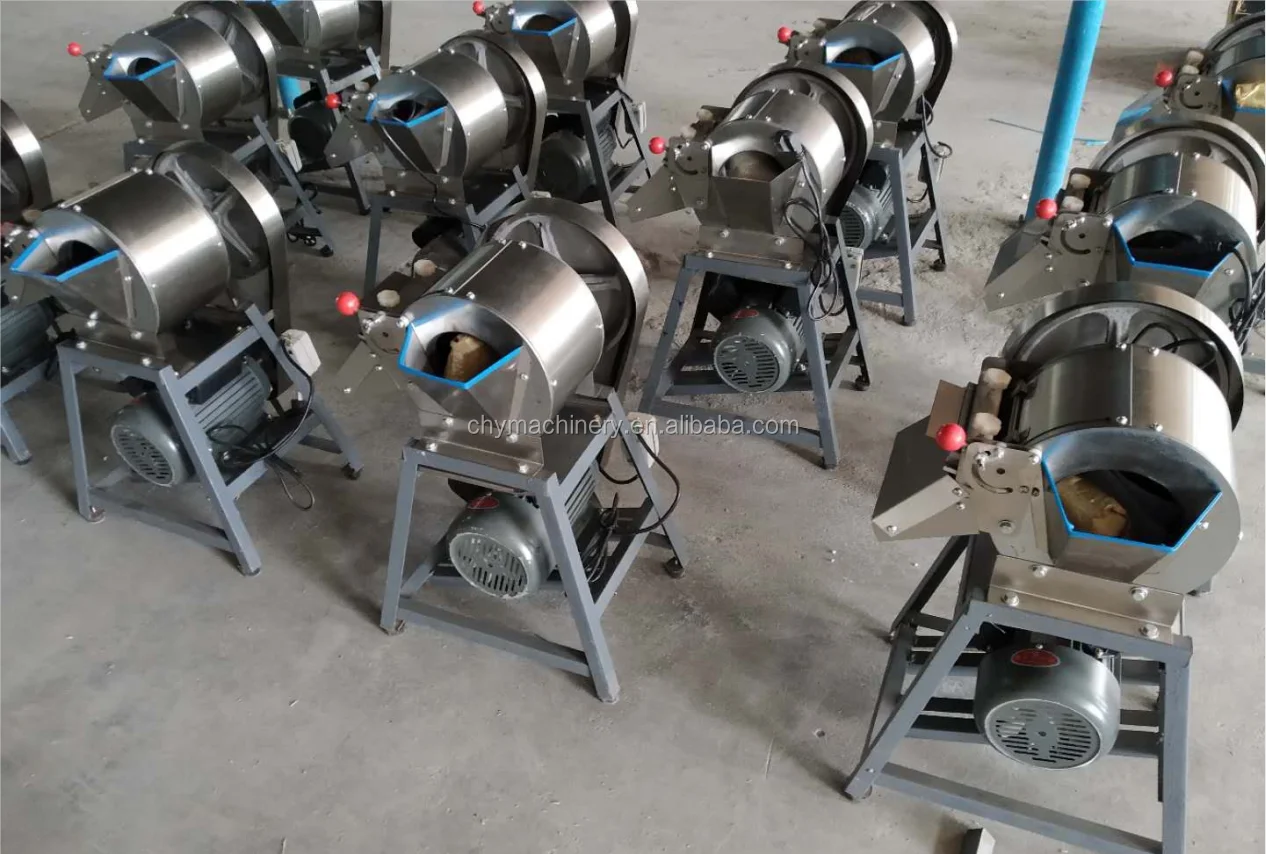

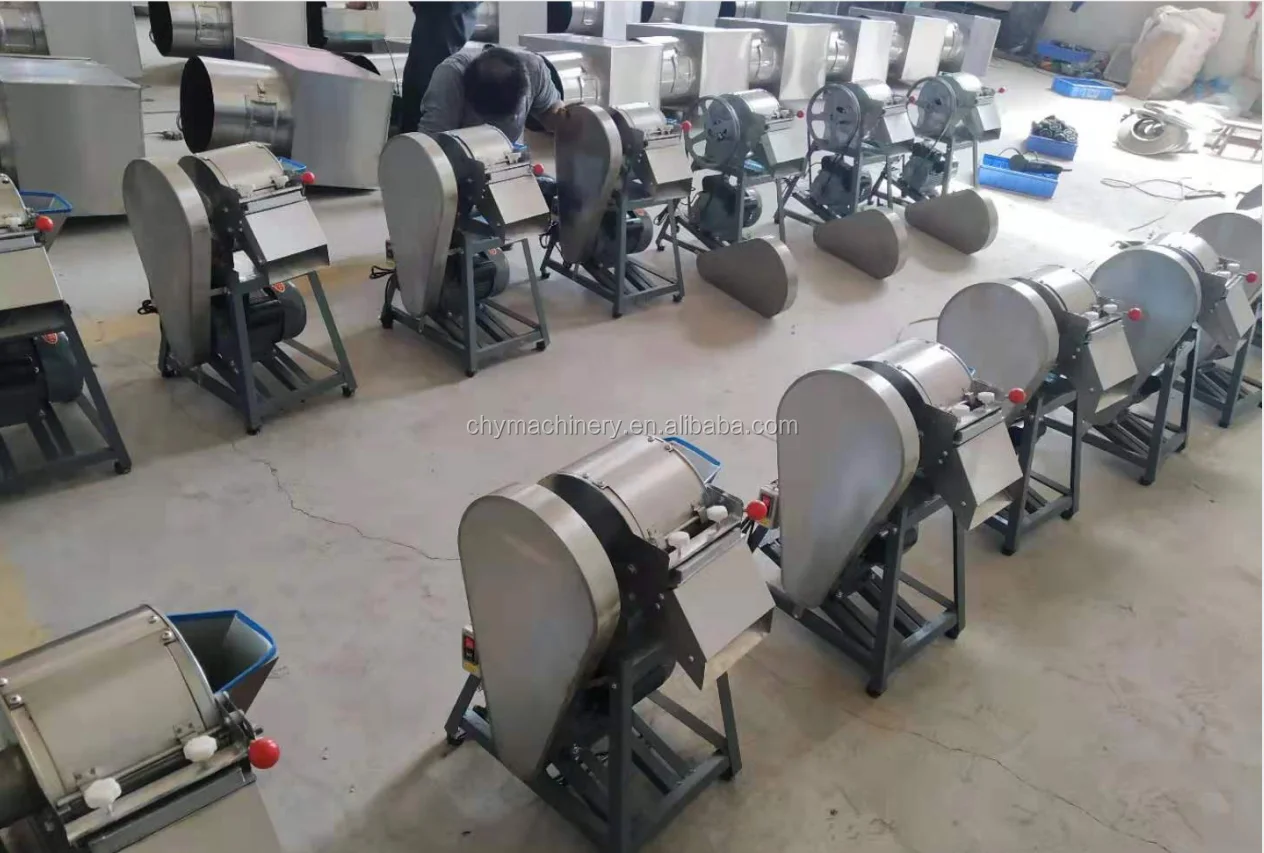

Factory&Warehouse:
Certifications
Customer Photos & Reviews

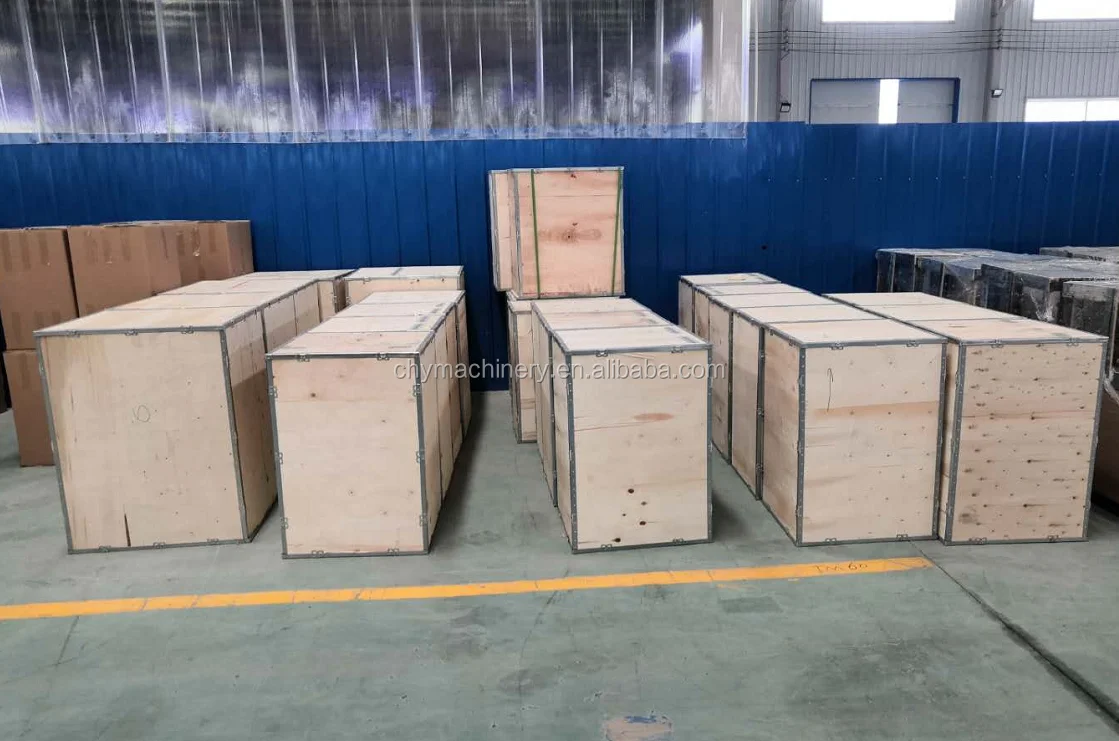

Packing&Shipping
