meat chopping mixing machine/bowl cutting vegetable machine/vegetable grinding machine

Name: meat chopping mixing machine/bowl cutting vegetable machine/vegetable grinding machine
Brand: CHUANGYUAN
Price: USD $350 - 350 / Case

FOB Price

USD $350 - $350 / Case

1 Case(Min.Order)

Supply Ability 1000 Case / Cases per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

CHUANGYUAN

Model Number:

SC-30

Product Description

Products Description

meat chopping mixing machine/bowl cutting vegetable machine/vegetable grinding machine

vegetable grinding machine is driven by rorm wheels and wormtypespeed-down gears,meat chopping mixing machine has the characteristicsof compact strure,fine appearance,easy operation and high efficiency.

Meat and vegetable bowl chopper machine mainly used for all kinds of roots, stems, leafy vegetables (carrots, potatoes, tomatoes,celery, cabbage, etc.) for cutting or grinding broken to make the dumplings and steamed.

Product features: 1. With automatic parking device with open cover, it is safe and convenient to imitate injured hands. 2. High-density aluminum alloy upper cover, Basin body, stainless steel body. 3. vegetable grinding machine integrates dicing, stuffing and stuffing, and the stuffing made is diced or foamy, without water, does not harm the ingredients, and does not damage the taste of the ingredients.

Range of Application

1.1 Industry Application:

vegetable grinding machine suitable for restaurant，canteentea restaurant shop，cake room shop，bakery shop，western restaurant shop，chinese restaurant shop，leisure vegetarian shop，fruit and vegetable processing plant shop，frozen food plant shop etc.

1.2 Function Application:

vegetable grinding machine is specially designed forcutting meat and vegetable,it can meat ,vegtable melon and fruit rapidly to make fillings.such as:meat, melon, vegetables, radishes, shallots, ginger, garlic, eggplant, potatoes etc.

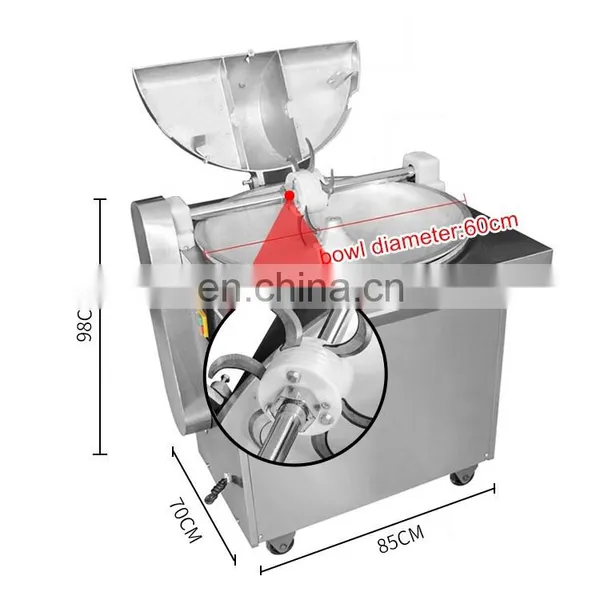

Size information

Machine model	SC-30
Material	220V/380V
Power	1500W
Product Size	85x70x98cm
Package size：	98X75X97CM
_{Bowl diameter:}	60cm
Production:	300-500kg/h
product weight：	85kg
package weight：	120kg

Details Images

1. vegetable grinding machine is mainly composed of organic frame, turbine box, knife combination, vegetable basin and other parts.

2.The parts that the vegetable grinding machine contacts with the vegetable stuffing are made of aluminum alloy castings and other materials that meet the requirements of food hygiene, which are Stainless, non-corrosive, non-toxic and harmless for long-term work.

Strong Motor

Powerful engine

High power speed

sharp kitchen knife

6 sharp blades,the whole into,stuffed vegetables do not producce waterr,high efficient,chopped vegetables speed fast.

Large capacity rotating basin

Large capacity,the one-time output quantity is hiqher

Health and safety

Easy Clean

Cover thickened design

Add cover parking device

Higher security

Built-in scraper desugn

Use for chopped vegetable and meat

Waterproof switch

Protection Switch

Working Principle When the machine is working, after the knife shield is covered, all kinds of vegetables of rhizomes and leaves are put into the dish. The vegetables rotate counterclockwise with the dish and are chopped into stuffing through a rotating knife. (Users can master the cutting time according to the requirements of the thickness of the vegetable stuffing).

Installation Instructions

1.Before use,check whether the operation of each part is flexible,whether the switch and power cord are damaged due to transportation,whether the solid screw is loose and whether there is any foreign body in the dish basin.

2.Switch on the power and start the motor to check whether the steering of the cutter is rotating from top to bottom toward the center of the bowl.

3.there should be no abnormal sound when the empty vehicle is running ,otherwise it should be stopped for inspection and used only after elimination.

Maintenace and precautions:

1.Turbine box must be well lubricated,use half a month to add the appropriate amount of gear oil,three months to half a year to replace the gear oil,so as not to cause parts wear.(remove the front guard plate when filling oil).

2.After use want to scrub carefully clean,besmear edible oil on knife,lest rust,affect use efficiency. 3.The vegetables should not be to large,large piece of vegetable can be cut into small piecesThe longer the cutting time is, the bette.

4.To ensure person safety , do not put your hand inside the knife shield.

5.Do not make the switch,motor and power cord damaged,be affected with damp,in order to ensure safety,please connect the ground wire at the machine grounding mark.

6.If abnormal phenomena are found in the work,cut off the power supply first,check and eliminate it before starting the work.

Packing&Shipping

Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
1.The mode of transportation we according to the size of the goods or the customer requirements, the samll package will take the DHL , TNT, UPS ect , the large size package machine will take the sea shipping and 20ft, 40ft, 40hp container
2. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity.
