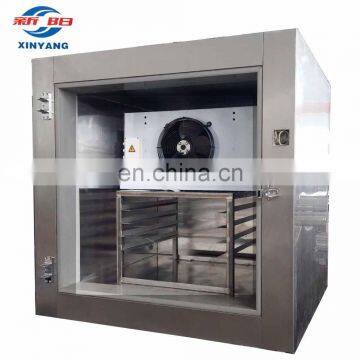

Help CenterFresh Fruit Lyophilizer Mini Machine for Sale Scale LG1.0
Related Products
-
The Best Sale Model Freeze Dryer Lab Machine PriceUS$ 28,600 - 32,800MOQ: 1 Set -
2021 XINYANG New Design Fruit and Vegetables Atlas Freeze Dryer Machine PriceUS$ 26,900 - 29,800MOQ: 1 Set
-
Commercial Vacuum Freeze Drying Equipment for Dog Food & LG30 Freeze Drying MachineUS$ 189,000 - 430,000MOQ: 1 Set
-
Commercial Vacuum Freeze Dryer for Dog, Cat Food & LG30 Freeze Drying Dog Food MachineUS$ 189,000 - 430,000MOQ: 1 Set
-
Commercial Vacuum Freeze Drying Machine for Dog Cat Food LG30 Freeze Drying Dog Food MachineUS$ 268,000 - 285,000MOQ: 1 Set
Information of vacuum freeze dryer
Decription
1. A maximum ice build up to 6 millimeter resulting in a negligible temperature drop over the ice and a low energy consumption;
2. Constant condenser temperature;
3. High freeze drying capacity/m2 of tray surface;
4. Suitable for food research institute, college & university and science research units;
5. Electric heating plates with PID control standard, hostoric curve and record data saving function.
1. Efficiency of Heating plates
The material of heating plates are aviation aluminum with anodized on the surface, over 100% heat release to the product by radiation way, keep good heating uniformity everywhere.

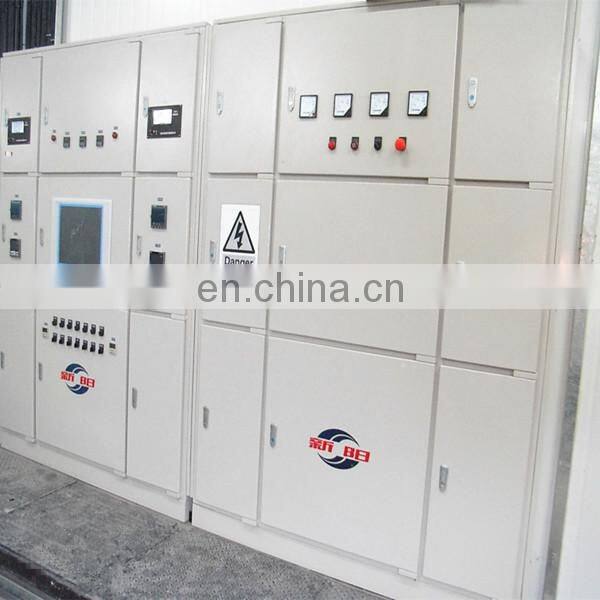

2. Automatic control system
Advanced intelligent control system keeps whole system stable and reliable running for a long term, furthermore, Simple operation method can be much easier to master.
3. "Product curve and data" record & save function
Adopt advanced design idea, all in the process of running data recorded and stored in a computer, for the data reference of next time, at the same time, it is eay to find out the actual situation of equipment operation by these data.
Where can find freeze dryer video of Aerspace Xinyang?
Here "Youtube: /watch?v=bbvxYGB7XMg&feature=youtu.be"

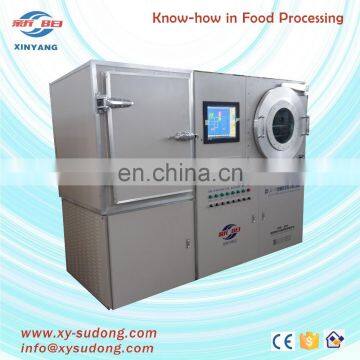

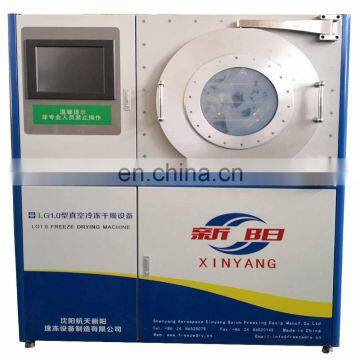

What is the specification of LG1.0 ?
Heating plate area 1.0m2
Number of heating plates 5
Heating type Double-sided radiation
Number of trays 4
Trays material Aluminum
Nominal working pressure > 50Pa
Power 8.5kw
Rated maximum water trapping capacity 8kg/batch
Table1
| Specification Model | LG0.2 | LG1.0 | LG1.5 | LG5 | LG10 | LG20 | |
| Heating Areas(m2) | 0.2 | 0.8 | 1.5 | 5.3 | 10 | 20 | |
| Numbers of Vapor trap | Single | Single | Single | Single | Single | Single | Double |
| Trapping Capacity | >2kg/batch | >8kg/batch | >20kg/batch | >65kg/batch | >130kg/batch | >250kg/batch | >44kg/hr |
| Heating Medium | Electric | Electric | Electric | Water&electric | Water&electric | Water&electric | Water&Steam |
| Heating Mode | Double side radiation | ||||||
| Temperature range of Heating plates | Normal Temp.~+120℃ | <95℃ | <95℃ | <95℃ | Normal Temp.~+130℃ | ||
| Vacuum Pressure (Pa) | 20~133 | ||||||
| Need Refrigeration Capacity (t0=-40℃,tk=-35℃) (Kw) | With Refrigeration System | 18 | 35 | 44 | |||
| Consumption of Steam (kg/h) | None | None | None | None | 50 | None | 75 |
| Electric Power Supply (Kw) | 3.2 | 8.5 | 15 | 35 | 26 | 65 | 38 |
| Tray Numbers | 2 | 4 | 4 | 14 | 26 | 52 | 54 |
| Loading Raw Material | 3 | 8 | 20 | >70 | >130 | >260 | >270 |
Packaging: Drying chamber: Bare back packing; Components: wood case or other packing material.

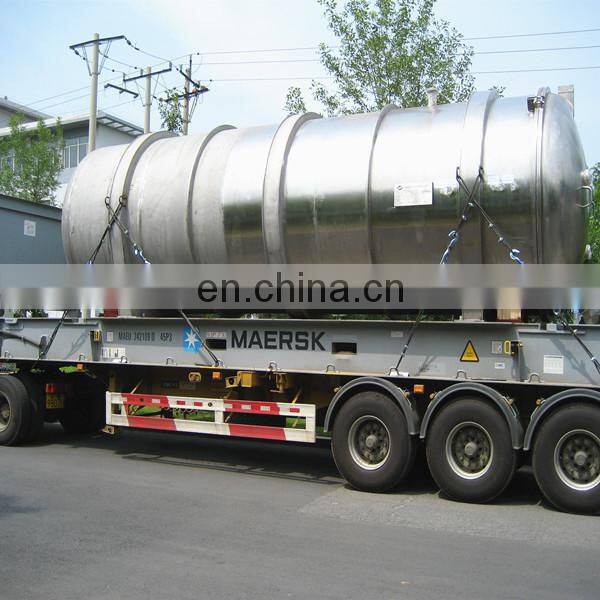

Shipping: By shipment or land transport
Gurantee
We guarantee that the commodity hereof is made of the best materials with first class workmanship, brand new and unused, and complies in all respects with the quality specification stipulated in this Contract and Appendix. The guarantee period shall be 12 months counting from the date of acceptance certificate. During this period, if quality problem occurs, the Sellers should guarantee he will respond and advise solution through verbal or written communication. Should the problem remain unsolved, the seller will despatch maintenance personnel to the buyer’s factory as soon as possible to carry out field maintenance. If equipment damage is caused by non-operation error, then maintenance is free, otherwise it is for the buyer’s account.
Our service
Pre-sale: we will provide product design, provide product manuals, provide advisory services.
Sale service: in the process of product trading services provided by the seller to the buyer, such as reception services, delivery services, product packaging services.
After-sales service:We will train the operators and maintenance technicians at local when we guide installation and commissioning, so the operators and technician can solve some basic problems after training, and we will send engineers to handle trouble if they can not solve the trouble.
TURN-KEY SERVICE
Unleass otherwise specified, Xinyang freeze dryer sales include installation/ commissioning/ staff-training by Xinyang engineers, and a full 12 month warranty.
How to contact us?
Send your inquiry details in the below, Click " Send" now!!!
