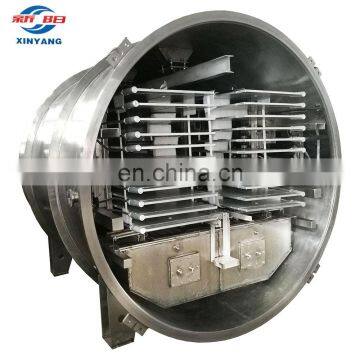

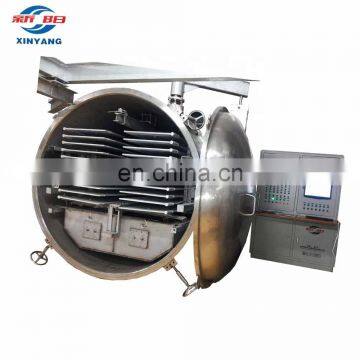

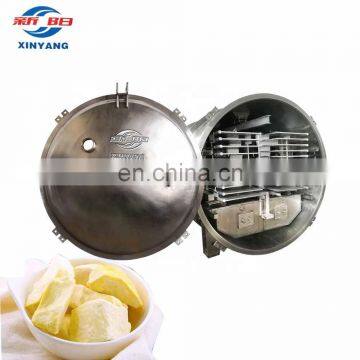

Industrial vacuum freeze drying equipment with high capacity and low energy consumption

Working Princple of Freeze Drying Machine

Under vacuum condition, material is freeze dried via principle of sublimation. The moisture in the pre-frozen material is directly sublimed from solid state (ice) to gaseous state (vapor), without melting. Freeze dried products are formed as sponginess, no shrinkage, rehydration excellent, very little water containing. The freeze dried product in sealed packaging can be stored and transported at room temperature for a long time.

How to process the freeze dried food?

Working principle of freeze dryer with double alternate cold traps

The green color trays with product locate between heating plates in red color, The cold trap I and cold trap II locate under the heating plates inside the drying chamber. Look at the picture as bellow, Cold trap II is working for condensation of vapor that comes from the product to keep good vacuum pressure for freeze drying processing, and Cold trap I is working for defrost, Low temperature steam (15~25℃)comes from De-icing tank into cold trap I to defrost the ice on the tube, and defrost water goes back to de-icing tank and drain out. Condensation and defrost function changes alternately by PLC automation control.

So, This kind construction has limitless on product input capacity, It has much more advantage than other kind of freeze dryers.

Procedure of freeze dried jujube

Training plan: We will provide training for those who operate and maintain the freeze-drying machines. Trained by supplier of the equipment in the process of installation and debugging, people can operate  and solve the basic mechnical problems independently. In addition, the persons who work in general engineering such as refrigeration, boiler, and transformer substation shall be undertaken by skilled workers.

1. We guarantee that the commodity hereof is made of the best materials and new brand with top workmanship, and in accordance with quality specification stipulated in product Contract and Appendix.

2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if there are quality problems, we will provide solution by verbal or written communication. If the problem is unsolved, our engineers will repair for you on site as soon as possible. The maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.

Shenyang Aerospace Xinyang Quick freezing Equip. Manuf. Co., Ltd was founded in 1985, a leading enterprise incorporating the research, manufacturing, sales and services of food processing equipment and freezing technology. Freeze drying equipment and IQF freezing equipment are widely used around the world.

Xinyang Company closely cooperated with Atlas Company in Denmark, Harbin Commerce University, Zhejiang University and Northeastern University, etc., supporting over 1,000 food engineering projects both domestically and abroad.

It is one of the earliest, largest and most influential professional manufacturers in China. Our products have been exported to USA, Canada, Germany, Netherland, Singapore, Thailand, Malaysia, Indonesia, Korea, Myanmar, Chile, Nigeria etc. The company pays highly attention to food quick freezing, vacuum freeze drying, vacuum frying solution and pre-processing system.

Now Xinyang Company aims to give all of our customers best products and services.
