Home > Construction & Decoration > Geosynthetics Products > Geomembrane > Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner

Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner

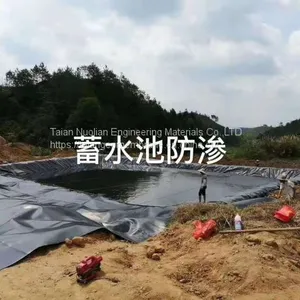

Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner thumbnail-1
Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner thumbnail-2
Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner thumbnail-3
Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner thumbnail-4

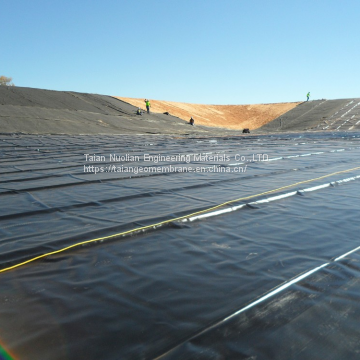

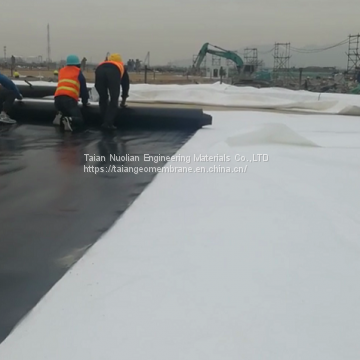

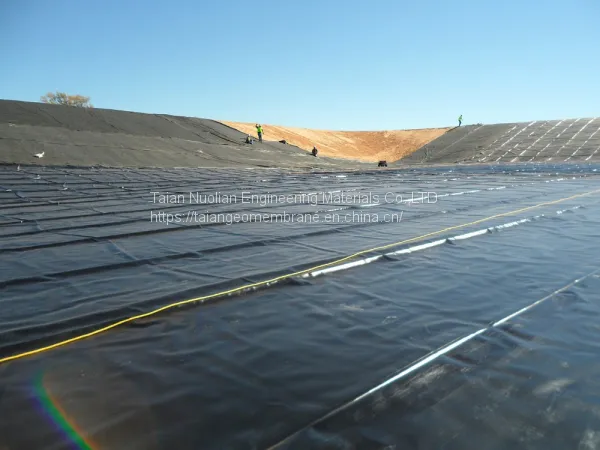

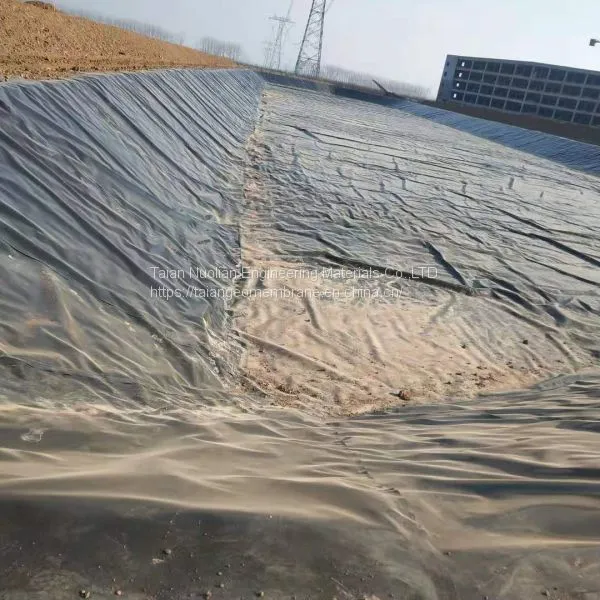

Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner photo-1
Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner photo-2
Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner photo-3
Hdpe Geomembrane Pond Liner Anti-UV Waterproof Material Geomembrane Liner photo-4
US$ 0.65 - 2.8 MOQ: 2000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
NLTGM001
Material:
HDPE
Contact Supplier Request Quote Chat Now
Taian Nuolian Engineering Materials Co.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
14 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number NLTGM001
Material HDPE
Geomembrane(smooth)Product Introduction:

Composite geomembrane is a kind of anti-seepage geosynthetic material taking non-woven geotextile as base material, and HDPE geomembrane as the membrane material. Its waterproof feature mainly depends on the characteristic of geomembrane.

Plastic membrane used in anti-seepage projects at home and abroad mainly include PVC,PE EVA, and ECB applied in tunnel, which are all polymer chemistry flexible material with small rate, strong extension, high deformity, corrosion resistance, low temperature resistance and good ability of  antifreezing. Its main mechanism is separating leakage channel of earth dam with the waterproof feature of plastic membrane, bearing water pressure and adapting deformation of dam with large tensile strength and elongation; While non-woven geotextile is a polymer short-fiber chemical material, and it is formed through needle-puncturing or thermal pasting. and it has higher tensile strength and elongation.

Product Features：

Geomembrane is a waterproof separating material taking high macro-molecular polymer as basic raw material. It is mainly divided into LDPE geomembrane,HDPE geomembrane and EVA geomembrane.

1. Width, thickness and specification are complete;

2. Have good environment stress crack resistance and good chemical resistance;

3. Have good chemical resistance;

4. Have good using temperature range and longer lifelong.

5.It is applied in landfill, tail storage site, tunnel anti-seepage, dike seepage and subway project, etc.

Product Application：

It is mainly applied in impermeable projects such as channel, sewage treatment tank, dock engineering, embankment reservoir, dam, subway, landfill, etc.

Technical Parameter：



HDPE Geomembrane  Ordinary type GH-2S



No.

Item

Value

Thickness

0.75

1.00

1.25

1.50

2.00

2.50

3.00

1

Density, g/cm3

≥0.950

2

Tensile yield strength, (MD/CMD)N/mm

≥17

≥15

≥18

≥22

≥29

≥37

≥44

3

Tensile break strength,(MD/CMD) N/mm

≥25

≥27

≥33

≥40

≥53

≥67

≥80

4

Yield elongation,(MD/CMD) %

≥12

5

Break elongation,(MD/CMD) %

≥700

6

Angle tear load, (MD/CMD)N

≥93

≥120

≥160

≥190

≥250

≥315

≥315

7

Puncture resistance, N

≥320

≥320

≥400

≥480

≥640

≥800

≥960

8

Stress crack under tensile load(notch dead load tensile method), h

9



Carbon black content, %

2.0-3.0









HDPE Geomembrane  Ordinary type GH-1



No.

Item

Index

Thickness,mm

0.30

0.50

0.75

1.00

1.25

1.50

2.00

2.50

3.00

1

Density, g/cm3

≥0.940

2

Tensile yield strength, N/mm

≥4

≥7

≥10

≥13

≥16

≥20

≥26

≥33

≥40

3

Tensile break strength, N/mm

≥6

≥10

≥15

≥20

≥25

≥30

≥40

≥50

≥60

4

Yield elongation, %

≥11

5

Elongation at break, %

≥600

6

Angle tear load, N

≥34

≥56

≥84

≥115

≥140

≥170

≥225

≥280

≥340

7

Puncture resistance, N

≥72

≥120

≥180

≥240

≥300

≥360

≥480

≥600

≥720

8

Carbon black content, %

9

Carbon black dispersion

Among 10 data, grade 3 should not exceed 1,

grade 4 and grade 5 are forbidden.


Product Tags: hdpe Geomembrane , pond liner , waterproof material , geomembrane liner
