Made of virgin HDPE resin plastic geomembrane for waterproofing

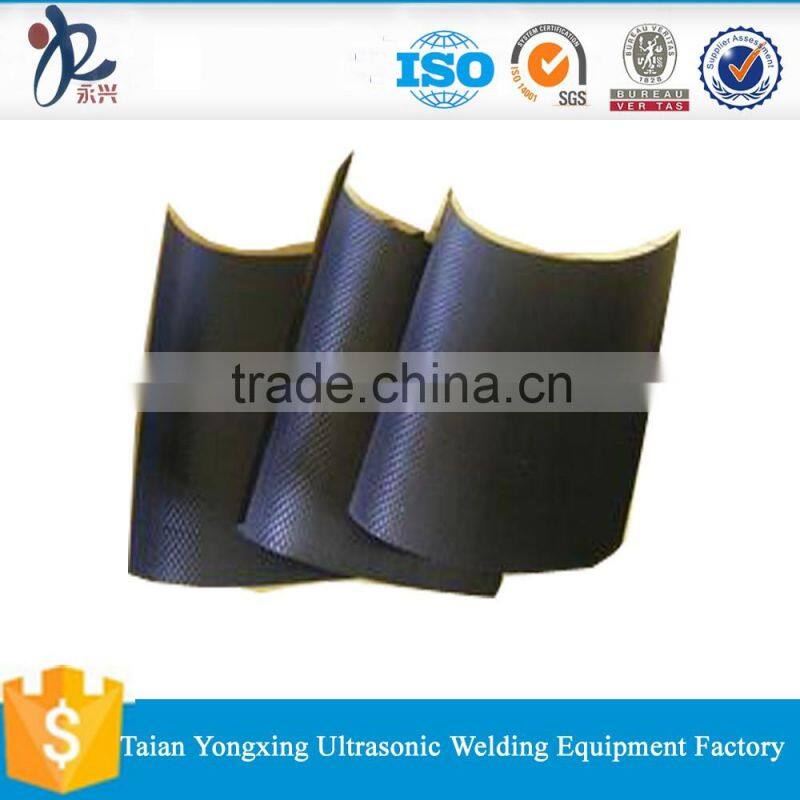

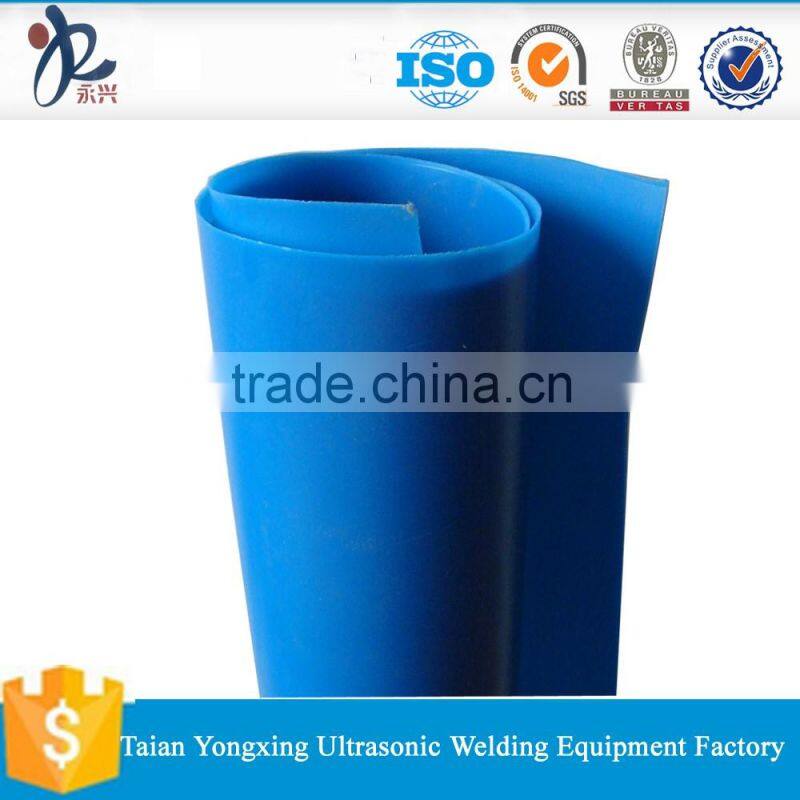

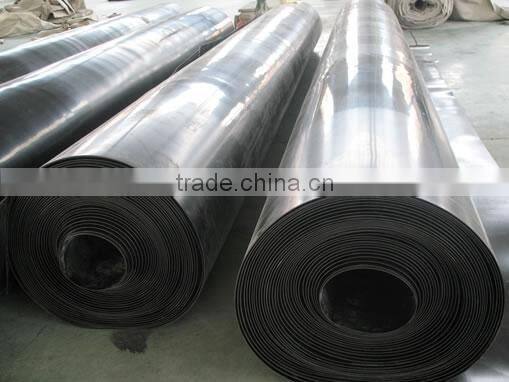

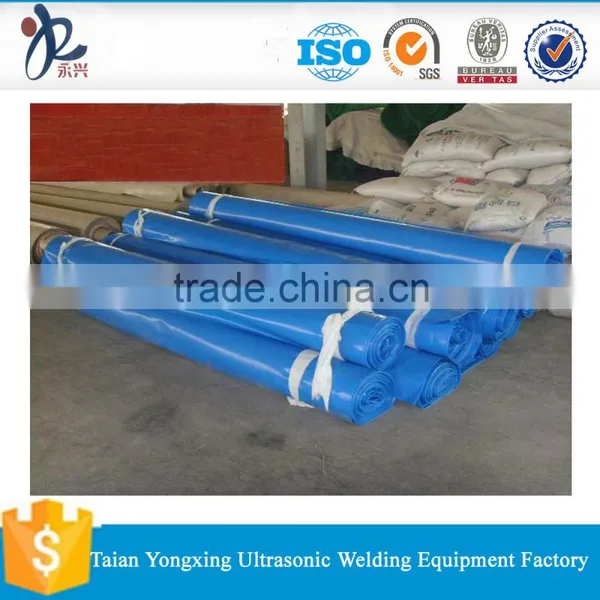

Photo:
Specification:
1) Thickness : 0.2mm – 2.5mm.
2) Width : Within 8 m (1m-8m).
3) Length : 50m-100m/roll (as request).
4) Material : HDPE,( LDPE, LLDPE, PVC, EVA ).
5) Color : Black , white , red , blue , or as required.
6) Optional surface : Textued(one or two side) or smooth surface.
7) Certificate:CE/ISO9001,14001
DESCRIPTION:
HDPE geomembranes are a kind of large molecule (macromolecule) polymer as the basic raw material composed of waterproof and cut-offs(insulation & separation) geosynthetic material.
PROPERTIES:
high strength, low permeability, chemical corrosion resistance, ultraviolet & sun exposure resistance, oxidation resistance, weather resistance, antimicrobial, erosion resistance.
APPLICATION
1. environmental protection, environmental hygiene(such as garbage landfill site, treatment of sewage, containment of poisonous or harmful wastes, hazardous warehouse, industry wastes, construction & explosive rubbish, etc)
2. water conservancy(such as waterproofing, stopping up leak, reinforcement for lake, river, channels, tunnels, dams and reserviors; vertical wall with core, slope protection, etc)
3. municipal engineering(expressway, subway, underground engineering of building; and liner of roof pool, roof garden's waterproofing, sewage channel, etc)
4. garden(backing & slope protection of artificial lake, pool, golf course's pond)
5. petrochemicals(liner secondary lining of chemical reaction tank and deposit tank from chemical plant & refinery; seepage control of oil tank from gas station)
6. mining (backing seepage of washing pond, heap leaching pond, ashery, dissolved pond, deposit pond from the stack and tailing)
7. traffic facilities(highway foundation reinforcement, culvert stopping up leak)
8. agriculture(stopping up leak for reserviors, drinking pools, storage ponds and irrigation system)
9. aquiculture industry(seepage control for sea cucumber circle's slope protection, liner of fish pool & shrimp pond)
10. seepage, corrosion, leaks control & reinforcement for other facility, leachate collection
11. temporary container structure, prefabrication of special parts
PRODUCTS TECHNICAL DETAILS:
No. |
properties |
|
Unit |
0.5 |
0.75 |
1 |
1.5 |
2 |
1 |
thickness |
ASTM D 5199 |
mm |
|||||
2 |
density |
ASTM D 1505 |
g/cm3, min. |
0.939 |
||||
3 |
tensile strength at yield |
ASTM D 6693 |
kN/m, min. |
7 |
11 |
15 |
22 |
29 |
4 |
tensile strength at break |
ASTM D 6693 |
kN/m, min. |
13 |
20 |
27 |
40 |
53 |
5 |
elongation at yield |
ASTM D 6693 |
%, max. |
12 |
||||
6 |
elongation at break |
ASTM D 6693 |
%, max. |
700 |
||||
7 |
tear resistance |
ASTM D 1004 |
N |
55 |
93 |
125 |
187 |
249 |
8 |
puncture resistance |
ASTM D 4833 |
N |
160 |
240 |
320 |
480 |
640 |
9 |
carbon black content |
ASTM D 1603 |
% |
2-3 |
||||
10 |
oxidation induction time (OIT) |
ASTM D 3895 |
minute |
100 |
||||
Other information: | ||||||||
1 |
Load quantity |
20ft hc |
sqm |
28420 |
20880 |
14210 |
10440 |
7250 |
2 |
FOB price (USD) |
|
sqm |
0.94 |
1.42 |
1.89 |
2.82 |
3.79 |
FAQ:
Q: Can you accept sample order?
A: Yes, Our samples are free but the freight should be collected from your side.
Q: What is your MOQ?
A: Normally, 500 m2 per order.
Q: What is your payment terms?
A: 100% irrevocable letter of credit, or 30% pay in advance with other 70% paying off before delivery, or 30% pay in advance with other 70% covering by irrevocable letter of credit.
Q:How about your quality?
A:You can order a sample first,then compare the product with it!
Q: What is your delivery time?
A: Normally, 10 days for production.
