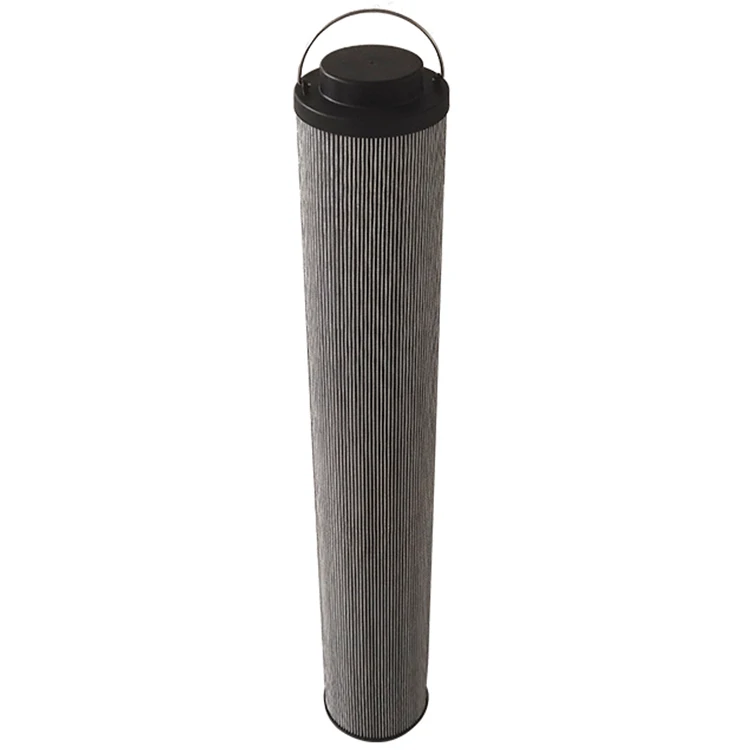

High Quality Replacement Stainless Excavator Parts Engine Steel Hydraulic Oil Filter Element 1700R010BN4HC Oil Filter
US$ 50 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JIEERLV
Place of Origin:
Hebei, China
Type:
Return Filter
Payment & Shipping
Payment Methods:
Port of Shipment:
Tinjing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Replacement HYDAC 1700R020B4NHC Oil FilterUS$ 50 - 60MOQ: 1 Piece -
Replacement HYDAC 2600R074WHC 2600R050WHCKB Hydraulic Oil FilterUS$ 100 - 130MOQ: 1 Piece
-
2600R025W/HCB6 2600R050W/HC Return Hydraulic Oil Filter ElementUS$ 100 - 130MOQ: 1 Piece
-
Replacement 2600R005BN4HCKB 2600R005BN4HC Return Filter Cartridge Hydraulic Oil Filter ElementUS$ 10 - 13MOQ: 1 Piece
-
2600R010BN4HCKB 2600R010BN4HC Return Hydraulic Oil Filter, Excavator Intake Hydraulic FilterUS$ 100 - 130MOQ: 1 Piece
Brand Name
JIEERLV
Place of Origin
Hebei, China
Type
Return Filter
Warranty
1 Year
Weight
standard
Dimension(L*W*H)
standard
Condition
New
High quality replacement stainless excavator parts engine steel hydraulic oil filter element 1700R010BN4HC oil filter
Product Description
Product Advantages
The position of hydraulic oil filter in the system has a great influence on the effect of pollution control. In the hydraulic system, the filter can be installed in the suction circuit, pressure circuit and return circuit as required, or outside the main system to form a separate filter system.
Oil suction filter: in order to prevent pollutants from entering the pump, the oil suction filter is generally installed in the oil suction port or oil suction pipeline. The filter at the oil suction port is immersed in the bottom of the oil tank, which is easily blocked by pollutants and difficult to maintain. Therefore, the screen type or line gap type filter without shell is generally used at the oil suction port.
Pressure pipeline filter: the filter installed in the pressure oil circuit is mainly used to protect the hydraulic components downstream of the pump. As the main filter of the system, its filtering accuracy shall meet the requirements of the system for oil cleanliness. The pressure difference of pressure oil filter is not very strict, so high precision filter can be selected. The maximum allowable pressure difference is generally 0.35-0.5mpa, and the initial pressure difference is 0.07-0.14mpa. The strength of the pressure oil filter should be able to withstand the maximum working pressure of the system, frequent pressure changes and
pressure peaks.
Filter Media
The media that HOSUN offer in the Products is the most efficient filtration media a hydraulic filter element can offer. Microglass` ability to capture 400 percent more particulate than Cellulose filter elements is why it is the best media choice for your hydraulic filter. The uniform shape and density of the glass fibers is what ensures the hydraulic filter`s 99.9% efficiency. Microglass filter elements are an excellent way to prevent unscheduled downtime and prolong the life of your hydraulic fluid.
Filter Seal
Have you ever had to cold-start your equipment? If yes, then a Buna O-ring is an excellent choice for your hydraulic filter. Buna O-rings provide superior resistance to tear and abrasion during those cold-flow applications and they are the perfect ring when you decide to marry that cold-flow with petroleum products.
Buna O-rings are recommended for:General purpose sealing
Petroleum oils and fluids
Cold Water
Silicone greases and oils
Di-ester base lubricants (MIL-L-7808)
Ethylene glycol base fluids (Hydrolubes)
Operating temperature -45℉ to 225℉pressure peaks.
Product name | Hydraulic ilter |
model | Industrial stainless steel folding hydraulic filter |
size | standard |
Operating temperature | -10~ + 100°C |
Different work pressures | 21bar~210bar |
material | glass fiber |
Filtration accuracy | 1-100μm |
life | 4 000-6000h |
