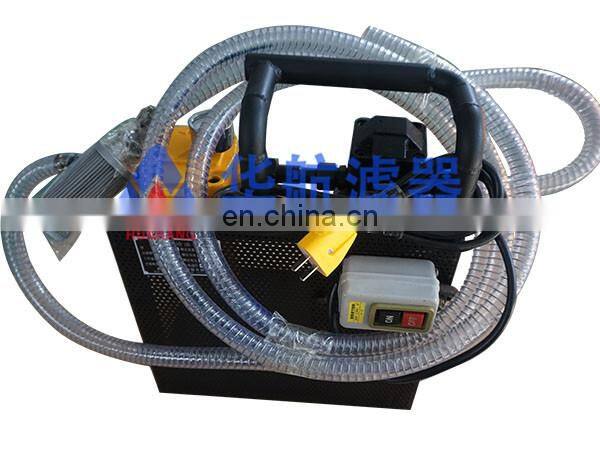

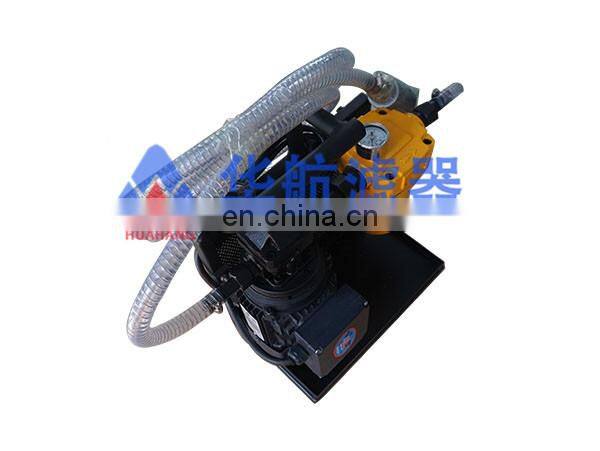

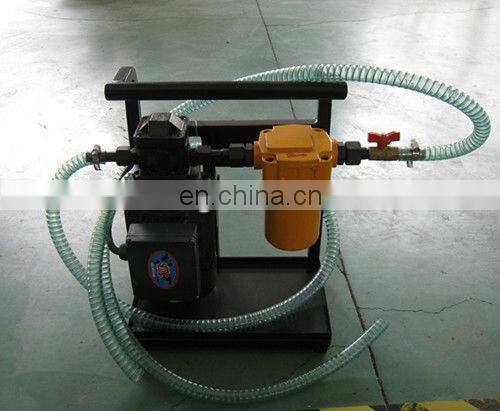

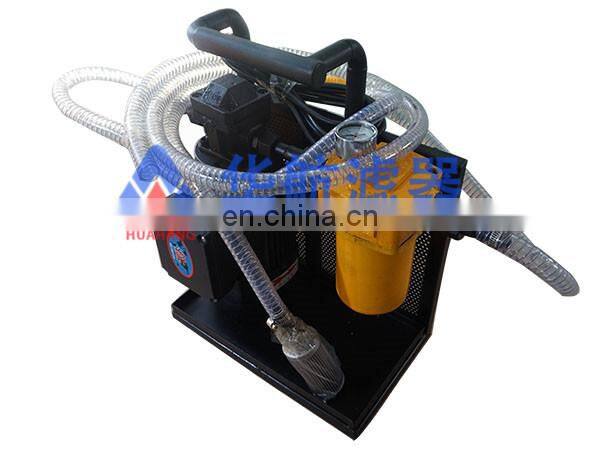

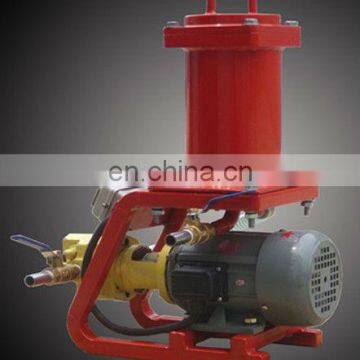

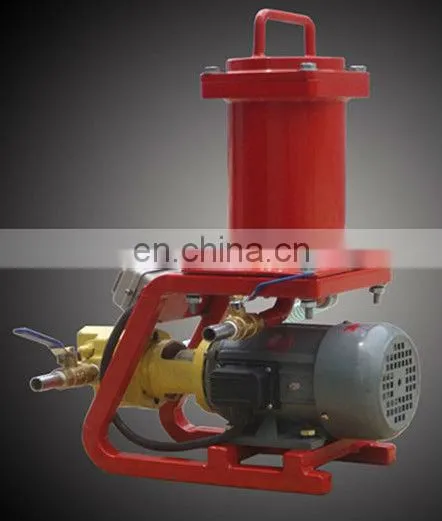

Portable oil Purifier BLYJ-16 pump for fishing vessel fuel oil filtration
Descriptions
1. This series of Transformer Oil Purifier Machine adopted our latest design technology,not only havehigh efficiency with good perfermance, self-cleaning,long service life,but also have high quality and good appearence.
2. This series of Transformer Oil Purifier Machine included one special use gear pump which moved by electrical motor.
Characterastics
1. It has low noises,Strong Self-priming ability,smoothly when working, etc..
2. High pressure pipeline equipped with current protection device, can effectively protect the safety of the hydraulic system.
3. Using thermal relay protection to prevent motor overload caused by the damage.
4. Oil suction mouth coarse filter to protect pump and prolong the service life of main filter.
Specifications
Model |
BLYJ-6 |
BLYJ-10 |
BLYJ-16 |
|
Norminal flow rate (L/min) |
6 |
10 |
16 |
|
Norminal pressure (MPa) |
0.34 |
|||
Initial pressure loss (MPa) |
≤0.02 |
|||
coarse filtration precision |
40 mesh |
|||
Fine filtration precision (μm) |
3,5,10,20,40 |
|||
Motor power (kw) |
0.18 |
0.25 |
0.35 |
|
Voltage (V) |
AC 380V three phase and 220 V two phase |
|||
Weight (kg) |
13 |
16 |
18 |
|
Demension(mm) |
650X680X980 |
650X680X980 |
720X680X1020 |
|
Applications
Filter the oil filling in hydraulic lubrication system
Filter the by-pass while the hydraulic lubrication system operating
Filter hydraulic lubrication system circularly before put into operation
Insert hydraulic lubrication system and improve the cleanness roundly
Filter diesel oil from sludge and seawater
Note of BLYJ-16 oil purifier maintenance
1. The oil must be purified before entering the system,
2. Without the purification of new oil its pollution often exceed the requirements of the actual hydraulic system oil. Even just extract new oil from the oil tank is not suitable for direct use. Is the cause of the pollution caused by various aspects, of various pollutants, including grain, moisture is likely to be in the processing, in the process of mixing and storage with new oil.
3. The movable filter oil machine is a kind of pre filter and the oil filling system and purification system of ideal method.

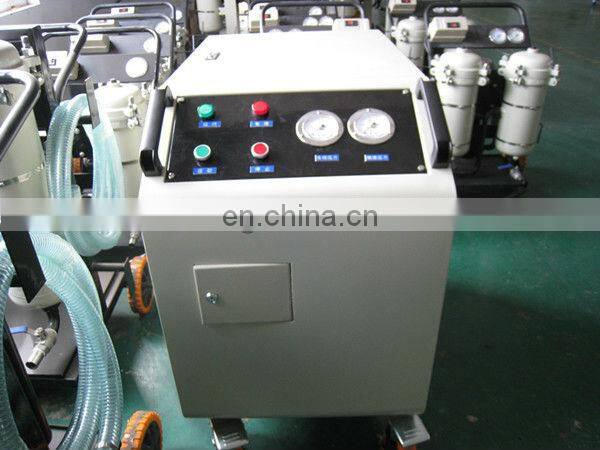

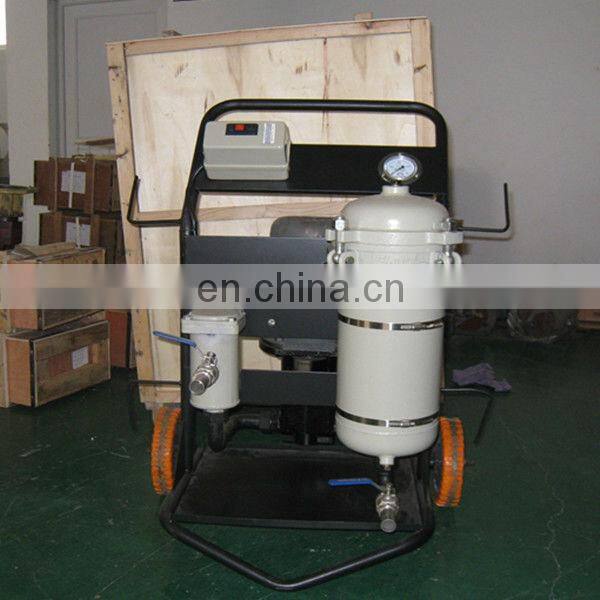

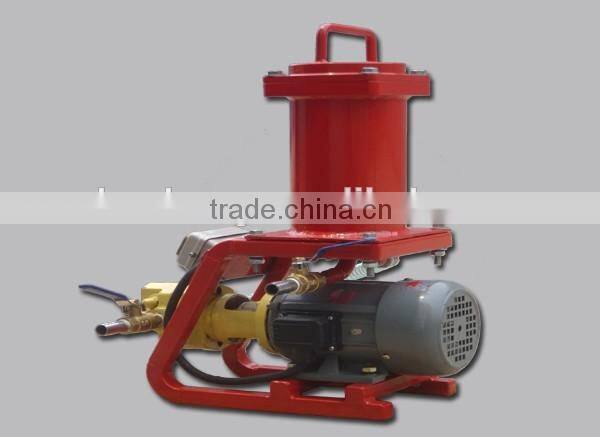

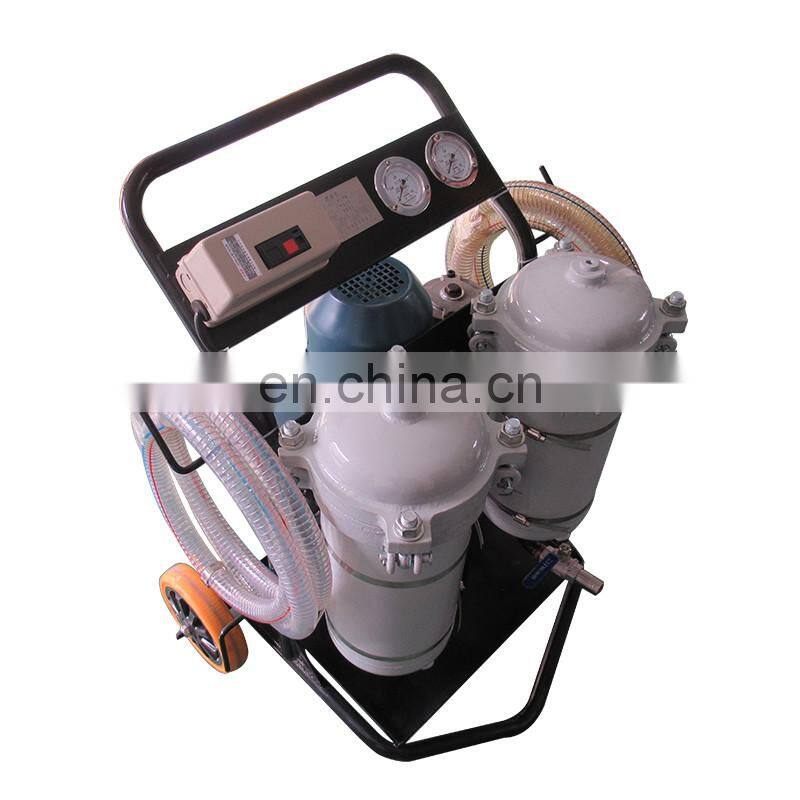

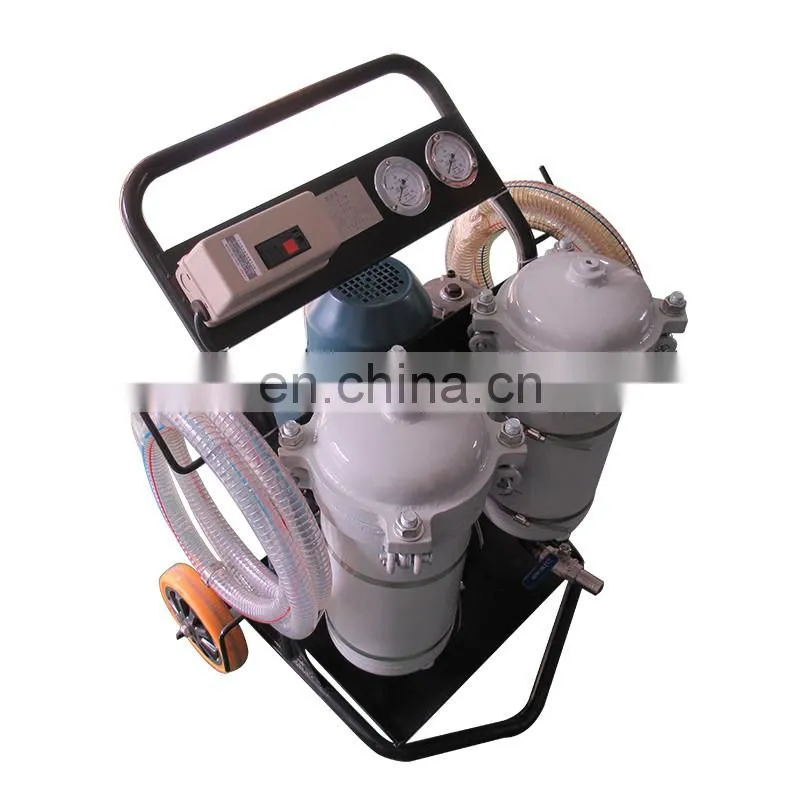

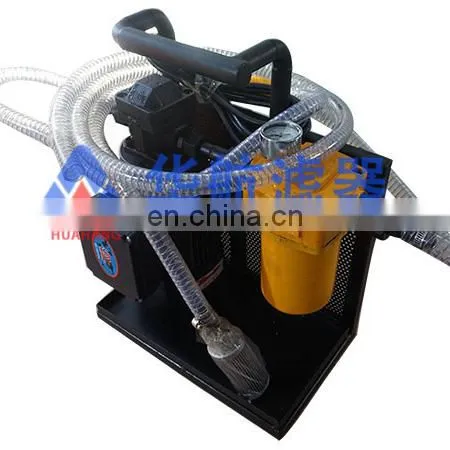

More oil purifiers picturers for your references
1.Pre-sale service:
Offer you best price of the product you need,provide the sample service.
2.Medium-sales service:
All filter element will be test before delivery.
3.Afer-sales service:
Techincal advisory for any time or need other product.
