Air filter cartridge--------Introduction
| Features and Advantages | 1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed. 2) Filter material surface do waterproof and oil processing. 3) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media. 4) Smooth filter media surface,not sticky. 5) Excellent chemical resistance. 6) Electro-galvanized / stainless steel cover, central skeleton. 7) Professional sealing obturator elastic neoprene. 8) Good filter material stiffness,can be repeated washed. 9) Operating temperature ≤ 135 ° C. 10) Greatly increase the effective filtration area. 11) Ensure a low steady differential pressure, improve the circulation of air flow. 12) Small filter cartridge element, easy to install. 13) Especially suitable for large dust concentration industry. |
| Specifications | 1. Type: Pleated cartridge filter 2. Size: 660mmheight X320mm diameter 3. Filter media: Polyester fibers 4. Endcaps: Galvanized steel 4. Efficiency: 99.99% 5. Inside frame: Diamond net 6. We can make different sizes and precision as your need. |
More dimensions for your choice
OD | ID | height | Connecting hole | Filtering area |
324mm | 213mm | 600mm | 14/16/18/-- | 8.5m2 |
324mm | 213mm | 660mm | 14/16/18/-- | 9.4m2 |
320mm | 210mm | 600mm | 14/16/18/-- | 8.5m2 |
320mm | 210mm | 660mm | 14/16/18/-- | 9.4m2 |
352mm | 241mm | 600mm | 14/16/18/-- | 8.5m2 |
352mm | 241mm | 660mm | 14/16/18/-- | 9.4m2 |
408mm | 292mm | 600mm | 14/16/18/-- | 8.5m2 |
408mm | 292mm | 660mm | 14/16/18/-- | 9.4m2 |
All the measurements of the filter can be changed according to your requirement
Some specifications
Applicable to spray painting, sand blasting operations, paint industry, wood processing filter.
1. Imports of long fiber polyester filter material, fiber interlock, widely distributed
2. Abrasion resistance, better able to weather than traditional air pulse filter cleaning
3. Filter material stiffness is good, and can be repeatedly cleaned
4.End caps, the central skeleton parts are galvanized, not rust
5. Special sealed closed-cell flexible neoprene
6. The use of temperature 93°C-135°C
Air filter cartridge -----------applications
Mainly used in central air conditioning, gas turbine power plants, oxygen plants, steel mill blast oxygen station, furnace blast air station, power plant etc. air intake filter.

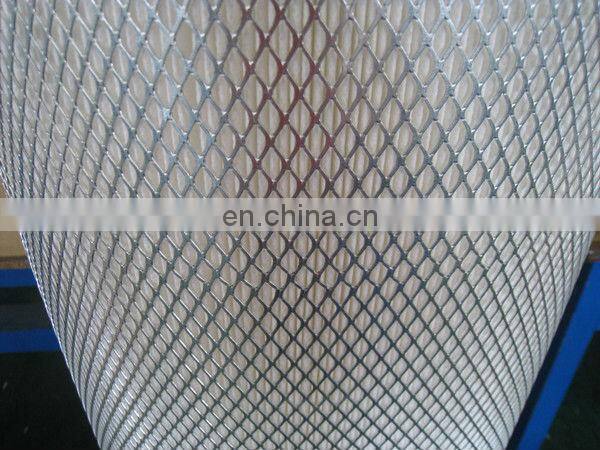

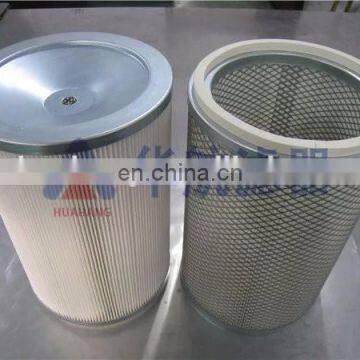

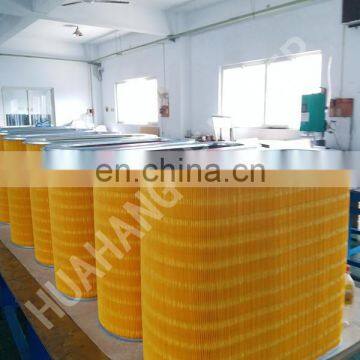

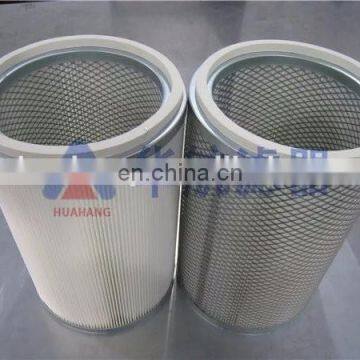

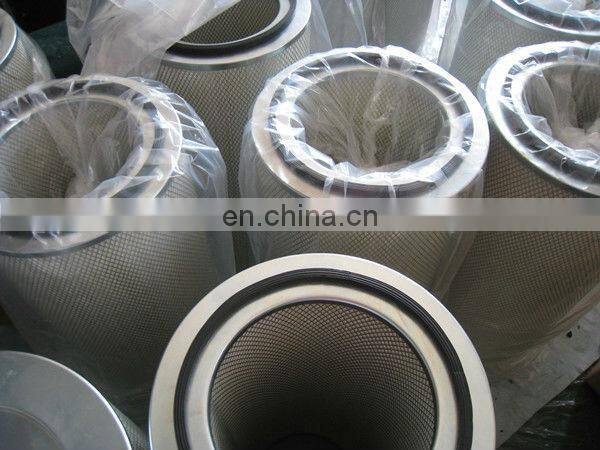

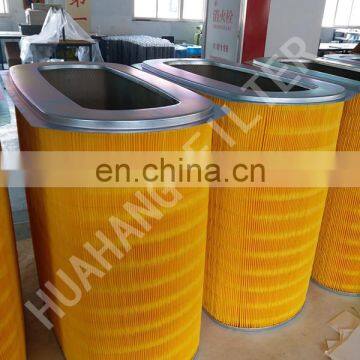

Air filter cartridge--------Detailed shows
If you need this carbon air filter,please leave a inquiry informing the information as bellows:
1. Size: OD, ID, length, if have a picture that will be great.
2. Material
3. Filter rating
4. Working medium
5. Quantity
1.Pre-sale service :
Provide you best products price you need
Answer all your questions about the products patiently .
2.Medium-sale service :
All filter element will be tested before shippment
Provide you newest goods transport conditions until you receive our products
3.After-sale service :
Technical advisory for any time
If the products have quality problem , and because of us , we will make the new products to you
