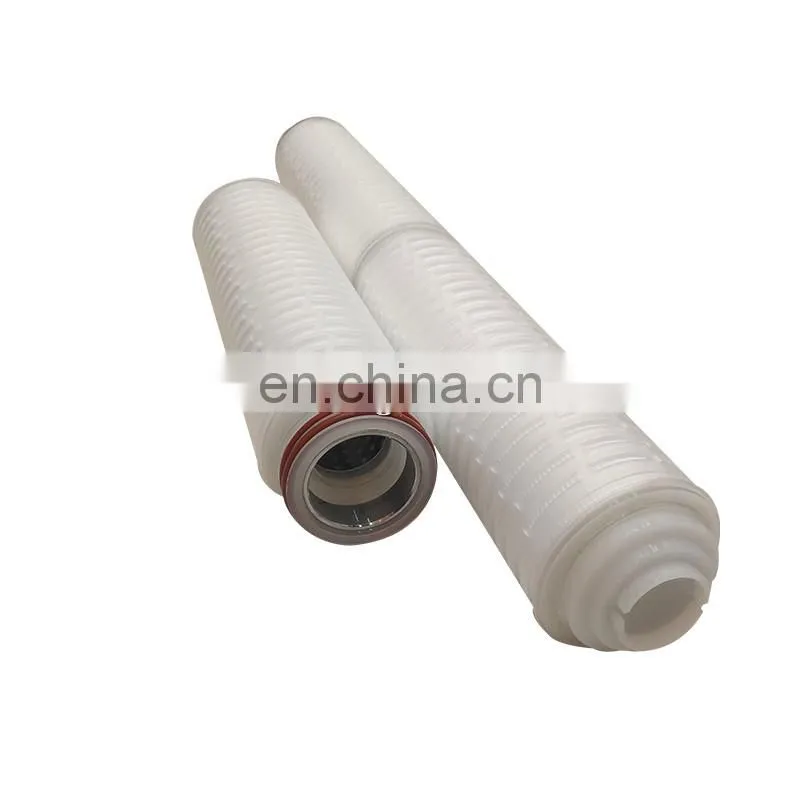

Microporous folded water filter element/Deep folded PP water filter
Polypropylene folding depth filter cartridge is a cartridge, commonly used as liquid pre-overheating, clarification and filtration, and terminal filter. Has the following characteristics: The ultra-fine polypropylene fiber membrane as filter medium, low dropout, high throughput, good filtering accuracy, lower economic costs, all polypropylene structure, cover, shell and center pole are used polypropylene material; by melt fusing process, which, after melting of PP and PP self adhesive, no adhesive; with a wide range of chemical compatibility; a series of aperture and form a variety of interfaces.
Main technical parameters
Filtration precision: 0.1, 0.2, 0.45, 0.65, 0.85, 1, 3, 5, 10, 20μ
Filter Length: 250mm (10'254mm), 500mm (20'508mm), 750mm (30'762mm), 1000mm (40'1016)
Filter area: 0.5M2 (10'), 1.0M2 (20'), 1.5M2 (30'), 2.0M2 (40')
Filter jack: There are flat pressure, insert the card into three forms of type
Special specification is available
The maximum pressure difference: 0.4Mpa (25 °c, positive)
The maximum operating temperature: 60 °cSteam Sterilization: 121 °c, 30min
Application:
Electronic industry: pre-filtration system reverse osmosis water, deionized water pre-filtration system
Pharmaceutical Industry: Pharmaceutical, biotechnology and plasma products, filtration, compressed air and gas filtration
Food and beverage industry: mineral water, drinks, fruit juice, liquor filter
Chemical industry: organic solvents, ink filter
Oil industry: oil field water filter
Others: electroplating solution, metal cutting fluids, corrosion inhibitors and sensitive magnetic media filter
Product Show:
XINXIANG HUAHANG FILTER CO., LTD
Our company specializing in all kinds of industrial filters for more than 10 years,own abundant technical force and excellent services. Our main produst are hydraulic oil filter series,air filter cartridge,water fliter cartridges. The best-selling products are substitutes for various brands of hydraulic oil filters. Our products are ISO9001, CE, SGS certified and exported to Asia, Europe, Middle East, America and other regions.
