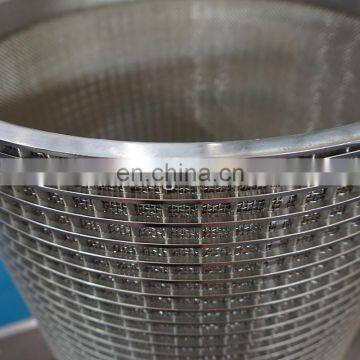

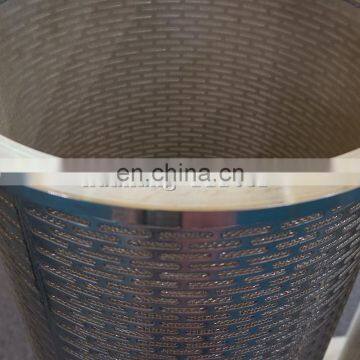

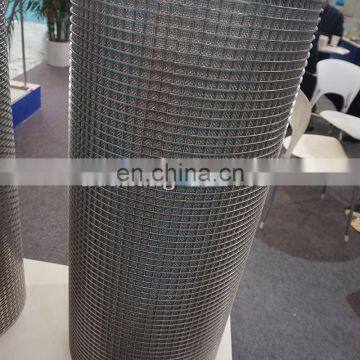

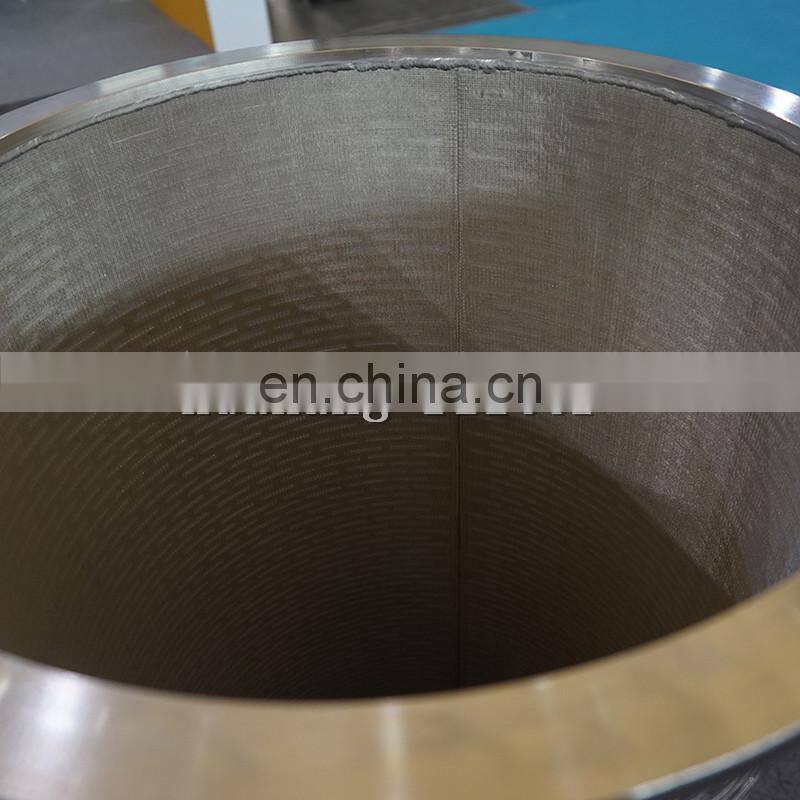

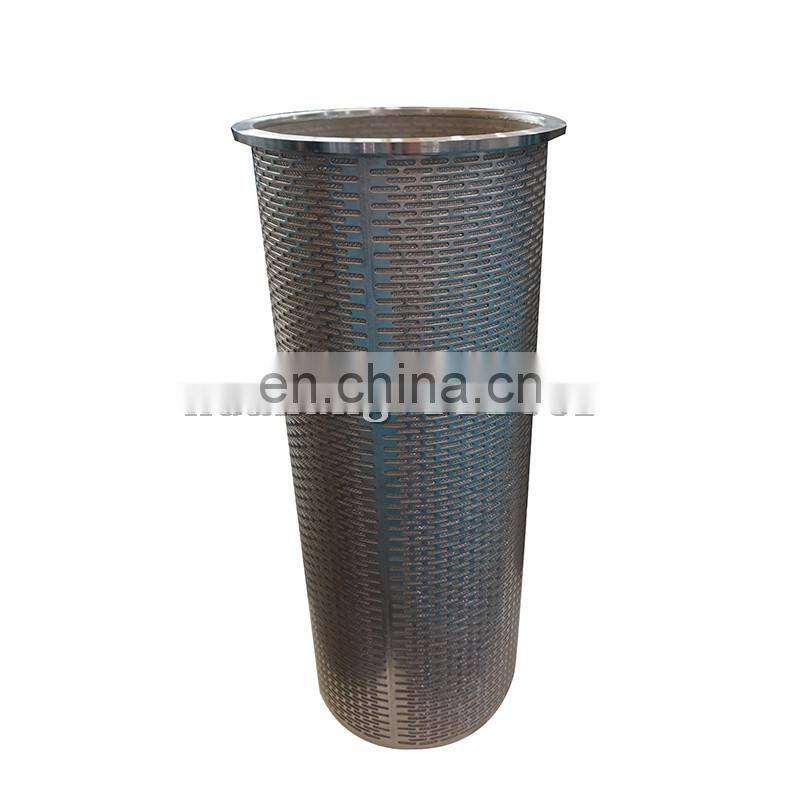

Stainless steel wire wedge wire water filter screen tube
Description:
1. product: johnson well casing screen pipe
2. place of origin: china
3. material: J55,K55,N80(N80-1,N80Q),L80,C90,P110
4. outer diameter: 114.3-508mm
5. wall thickness: 5.69-12.19mm
6. length: R1(5.49-6.71meter),R2(8.23-9.14meter),R3(11.58-13.7meter)
7. technics: hot rolled
8. casing standard: API 5CT
9. thread: LTC,STC,BTC,VAM
10. inspection: in house and SGS,BV as per third party test
11. packing: standard export package as following picture
12. usage: oil and gas industry
13. payment: 30% T/T+70% T/T or L/C at sight, 100% L/C at sight issued by top bank
14.delivery time: within 20-45 days after prepayment or L/C received
15. outer surface: black paint,anti-corrosion oil,galvanized,varnished or as you want.
Instruction:
johnson well casing screen pipe is a large diameter pipe that serves as the structural retainer for the walls of oil and gas wells,
or wellbore.It is inserted into a well bore and cemented in place to protect both subsurface formations
and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place.
Surface casing
-Protects the well from contamination in shallow water and gas layers.
-Supports the wellhead equipment and sustains the weight of the other layers of casing.
Intermediate casing
Isolates different layers of pressure to facilitate normal circulation of drilling fluid and protect the production casing.
-Intermediate casing facilitates the installation of blow-out preventers, anti-leakage devices and tailpipes in the well.
Production casing (oil string)
-It is the conduit through which oil and gas pass from a below surface reservoir.
-It protects the well and separates fluids into various layers.
First, green pipes are threaded on each end. The threading is then inspected and, if necessary, rethreaded to
ensure that the thread accurately connects to the coupling. The threading type includes STC/BTC/LTC.
The casing pipes are strengthened by surface treatment and are subject to various inspections, including
drifting and hydrostatic tests before they are coated and packaged into johnson well casing screen pipe
Casing pipes are ordinarily produced with outside diameter sizes of 114.3 mm to 508.0 mm.
Dimension List:
|
OD (in) |
OD (mm) |
Weight (kg/m) |
Weight (lb/ft) |
Grade | Thread | Length |
| 4 1/2 | 114.3 | 14.14-22.47 | 9.50-15.10 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 5 | 127 | 17.11-35.86 | 11.50-24.10 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 5 1/2 | 139.7 | 20.83-34.23 | 14.00-23.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 6 5/8 | 168.28 | 29.76-35.72 | 20.00-24.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 7 | 177.8 | 25.30-56.55 | 17.00-38.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 7 5/8 | 193.68 | 35.72-63.69 | 24.00-42.80 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 8 5/8 | 219.08 | 35.72-72.92 | 24.00-49.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 9 5/8 | 244.48 | 48.07-86.91 | 32.30-58.40 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 10 3/4 | 273.05 | 48.73-97.77 | 32.75-65.70 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 11 3/4 | 298.45 | 62.50-89.29 | 42.00-60.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
| 13 3/8 | 339.72 | 71.43-107.15 | 48.00-72.00 | J55/N80/P110/K55 | LTC/STC/BTC | R1/R2/R3 |
