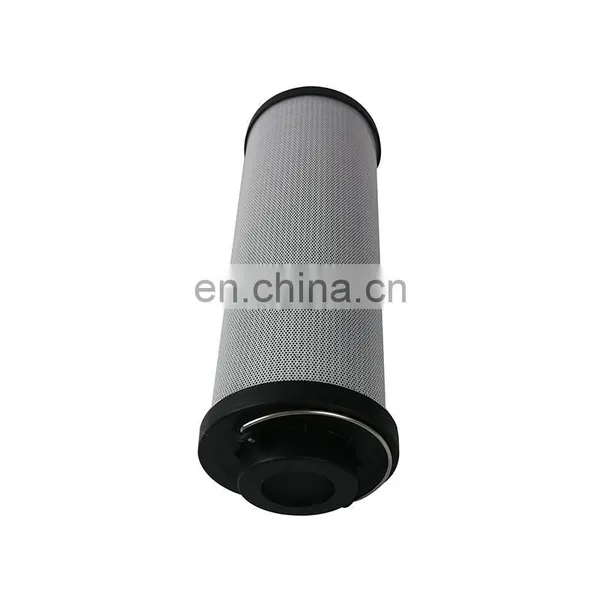

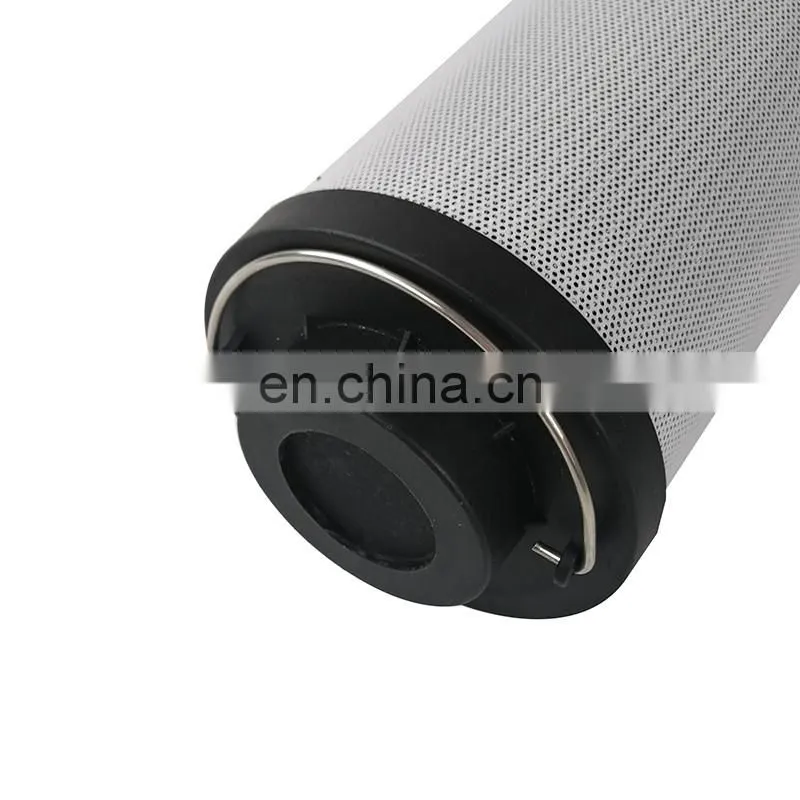

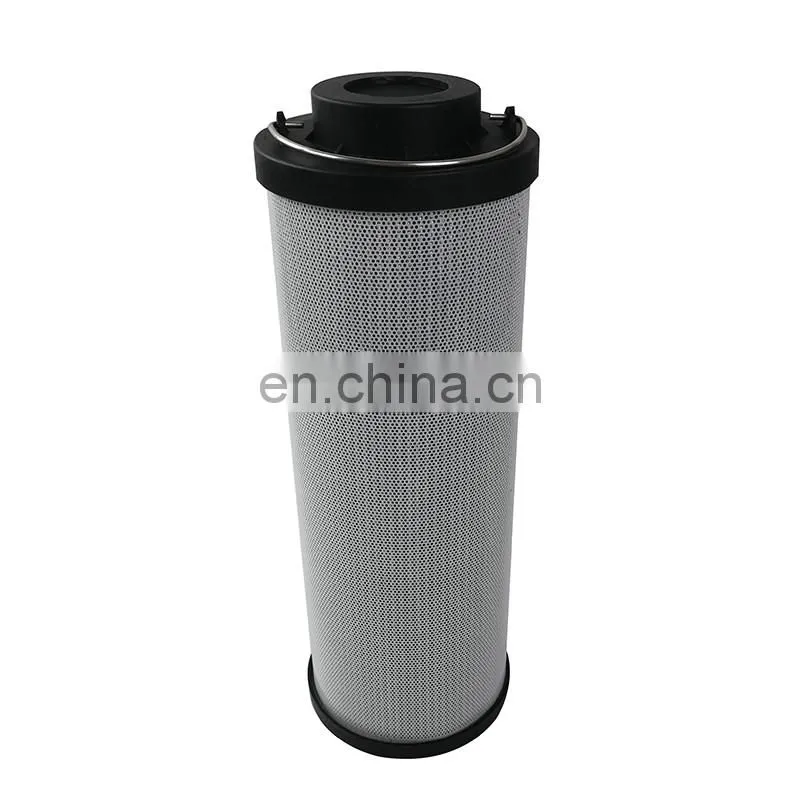

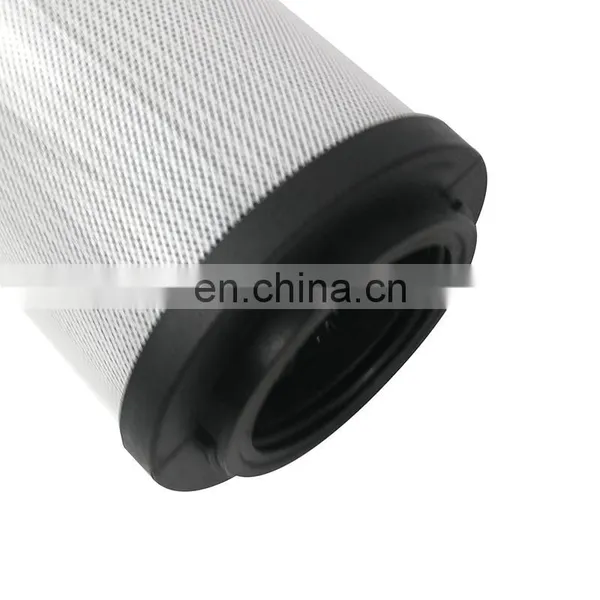

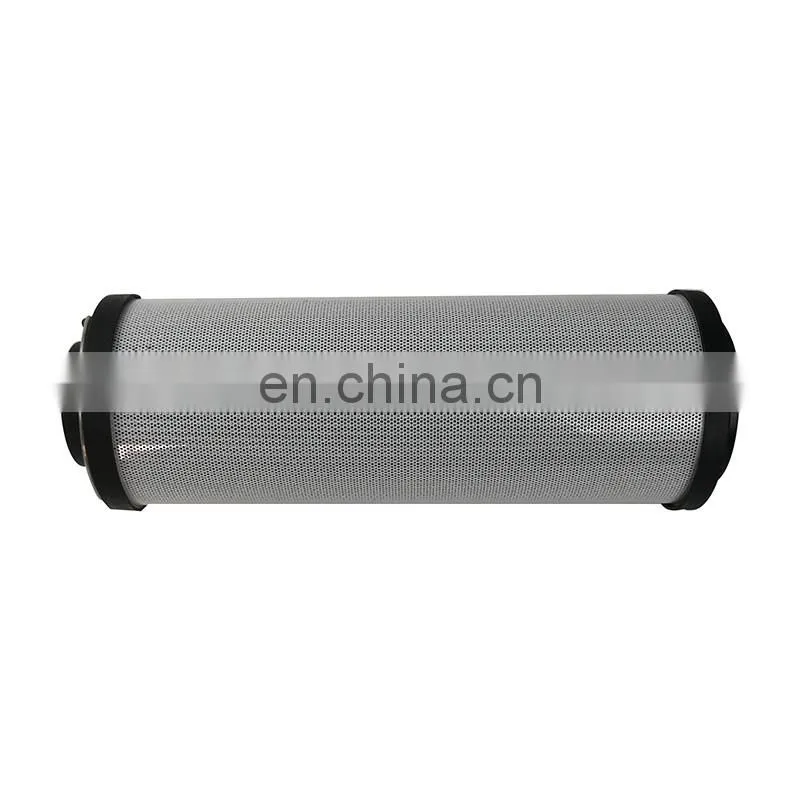

Help CenterFactory Price Hydraulic/lube Return Oil Filter Element 0850R010BNHC/-KB 0850R025W/HC 0850R010BN4HC
Related Products
-
2600R010BN4HC Return-Line Oil Filter Kits for Machine Tool IndustryUS$ 90 - 90MOQ: 5 Pieces -
25 Micorn Hydraulic Filter Element Internormen 306608/01.NR1000.25G.10.B.P Cross Reference Industrial Hydraulic Oil FilterUS$ 5 - 50MOQ: 5 Pieces
-
Hydraulic Suction Oil Filter GPP-08 Replacement for Granch Filter ElementUS$ 5 - 50MOQ: 5 Pieces
-
Marine Filter Replacement IVECO 5801445572 Hydraulic Element Filter Oil FilterUS$ 15 - 60MOQ: 2 Pieces
-
10 Micron Replacement 0100MX010BN4HC Hydraulic Filter Oil Cartridge Filter for Gear Case Coolant SystemUS$ 15 - 60MOQ: 2 Pieces
Hydraulic filter element is installed in oil tank, Simplify the system piping and save space, so that the System layout is more compact. They are design with selfclosing valve. When maintaining system, the oil in tank will not reflux. And when replacing oil filter element, they are removed together with pollution, oil will not flow out.
Oil filter element is designed with bypass valve. When the pressure difference achieves 0.35MPa,if can't change filter immediately, the bypass valve in the top of oil filter element will open automatically(pressure difference are 0.4MPa),to protect the normal operation of system.
They also design with magnetic device. Magnetic device can filter out ferromagnetic particles which more than 1 micron.
Performance parameters
Filtration material |
BN |
glass fiber |
W |
stainless steel woven mesh |
|
P |
wood pulp filter pape |
|
V |
stainless steel sintered mesh- |
|
Filtration precision |
1μ ~ 200μ |
|
Working pressure |
21bar-210bar |
|
Operating Temperature |
-30 °C ~ +110 °C |
|
Sealing material |
Buna,NBR |
|
Working Medium |
general hydraulic oil, phosphate esters hydraulic oil, emulsions |
|
Testing Standard
1 resistance to rupture of filter element as per ISO 2941
2 structural integrity of filter element as per ISO 2943
3 compatibility of filter element as per ISO 2943
4 filter filtrability as per ISO 4572
5 filter differential pressure specility as per ISO 3968
6 test of flow - differential pressure specility as per ISO 3968
7 viscosity of test oil
Details showing
Product Features
1.Greater system availability from reliable filtration
2.Long service life through highest dirt holding capacities
3.Higher operational dependability through outstanding cleanliness classes
4.Reduced maintenance costs through long replacement intervals
5.Lower price than original and the same specifications and function as original
There are some oil filter part numbers:
0030D003BN/HC 0030D005BH/HC 0030D005BN3HC 0030D025W/HC
0060D003BN3HC 0060D005BH3HC 0060D010BN3HC 0060D020W/HC
0110D005BH/HC 0110D010BN/HC 0110D003BH/HC 0110D010BN3HC
0240D003BN/HC 0240D005BN3HC 0240D010BH3HC 0240D020W/HC
0140D003BN/HC 0140D005BN3HC 0140D010BH3HC 0140D020W/HC
0160D0003BN/HC 0160D0005BN3HC 0160D0010BH3HC 0160D0020W/HC
0280D003BN/HC 0280D005BN3HC 0280D010BH3HC 0280D020W/HC
0330D003BN/HC 0330D005BN3HC 0330D010BH3HC 0330D020W/HC
0480D003BN/HC 0480D005BN3HC 0480D010BH3HC 0480D020W/HC
0500D003BN/HC 0500D005BN3HC 0500D010BH3HC 0500D020W/HC
0660D003BN/HC 0660D005BN3HC 0660D010BH3HC 0660D020W/HC
0990D003BN/HC 0990D005BN3HC 0990D010BH3HC 0990D020W/HC
0030R003BN3HC 0030R005BN/HC 0030R010P 0030R025W
0060R003BN3HC 0060R005BN/HC 0060R010P 0060R025W
0110R003BH3HC 0110R005BN/HC 0110R010P 0110R025W
0160R003BN3HC 0160R005BN/HC 0160R010P 0160R025W
0240R003BN3HC 0240R005BN/HC 0240R010P 0240R025W
0330R003BN3HC 0330R005BN/HC 0330R010P 0330R025W
0660R003BN3HC 0660R010P 0660R025W 0850R003BN3HC
0850R005BN/HC 0850R010P 0850R025W 0950R003BN3HC
0950R005BN/HC 0950R010P 0950R025W 1300R003BH3HC
1300R005BN/HC 1300R010P 1300R025W 2600R003BN3HC
2600R005BN/HC 2600R010BN3HC 2600R025W 2600R020BN3HC
1700R005BN4H
