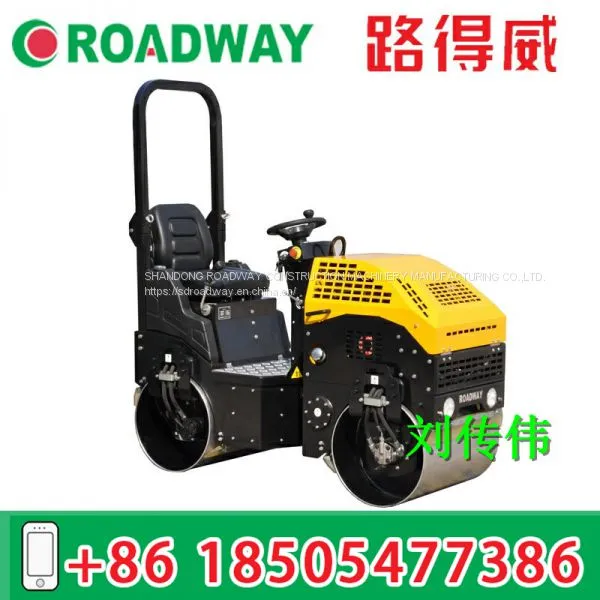

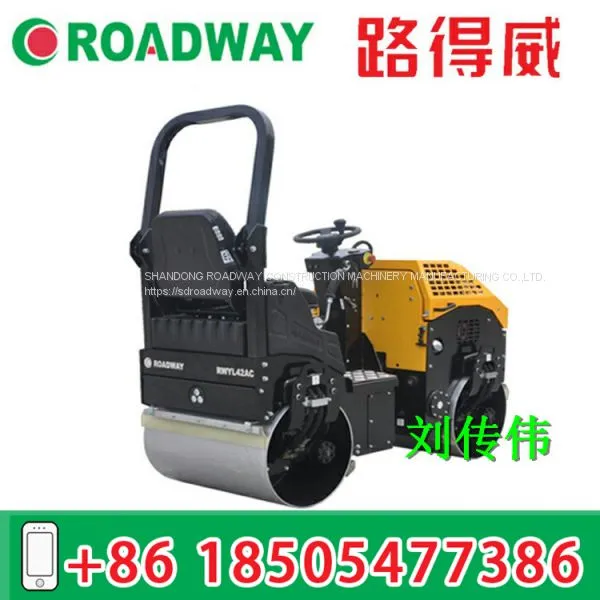

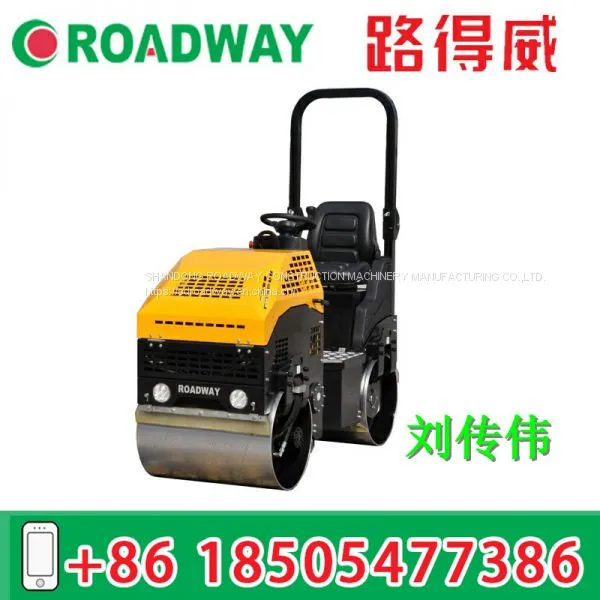

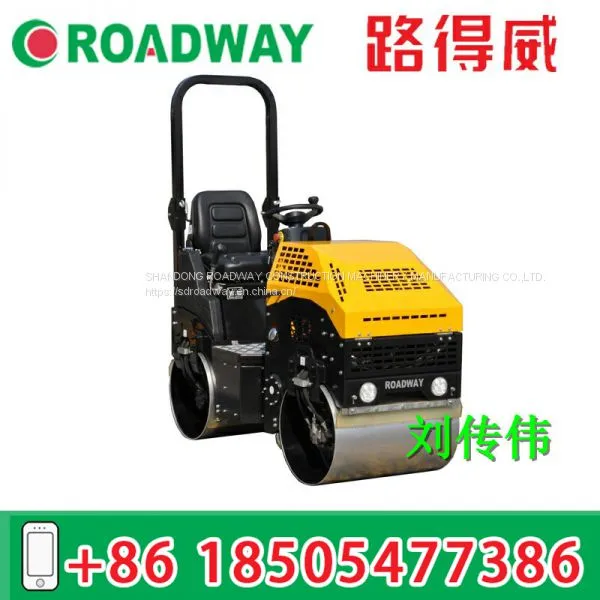

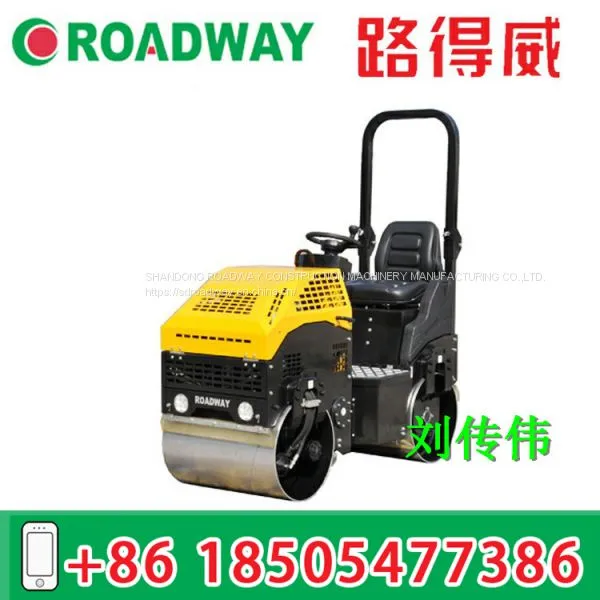

Ride-on Vibratory Roller(Fully Hydraulic)RWYL42BC

Name: Ride-on Vibratory Roller(Fully Hydraulic)RWYL42BC
Brand: ROADWAY
SKU: 166106599
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

ROADWAY

Place of Origin:

China

Model Number:

RWYL42BC

Shandong Roadway Construction Machinery Manufacturing Co.,ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao,tianjin

Delivery Detail:

7 days

Brand Name ROADWAY

Place of Origin China

Model Number RWYL42BC

Type Double Drum Roller

After-sales Service Provided Engineers available to service machinery overseas

Weight 970kg

Dimension(L*W*H) 2110 × 980 × 1610mm

Condition New

Power(W) 8.0hp / 3600rpm

Grade Ability 30%

Travel Speed 0-4km / h

Static Linear Pressure 57/77 N / cm

VIDEO:/lnBjjKmloo-iqiiKBljlmSRnikqrroijniior-b885735062994c03ac373aed152e69b7

Technical Parameters

Run		Type	Diesel engine, air-cooled, single cylinder
Speed	0-4km / h	Power	8.0hp / 3600rpm
Turning radius	2600mm	Lubricant L	1.65L
Clilmbing capacity in theory	30%	Fuel consumption	280g / kWh
Compaction		Fuel tank volume	10L
Static load forward/back	57/77 N / cm	Dimension
Nominal amplitude	0.5mm	Width of steel drum	700mm
Vibration frequency	65Hz	Diameter of steel drum	500mm
Exciting force	20kN	Tread	1230mm
Water tank volume	67L	Total length	1810mm
Working		Total width	800mm
Drive	Hydraulic drive	Total height	1990mm
Vibration	Hydraulic vibration	Packing size	2110 × 980 × 1610mm
Steering	Hydraulic steering	Weight
Engine		Working weight	970kg
Model	186F
