ET-SGM37BL-B 37mm 3.7RPM-300RPM 24V Micro Brushless DC Spur Gear Motor 0.6kg - 35kg

ET-SGM37BL-B 37mm 3.7RPM-300RPM 24V Micro Brushless DC Spur Gear Motor 0.6kg - 35kg photo-1

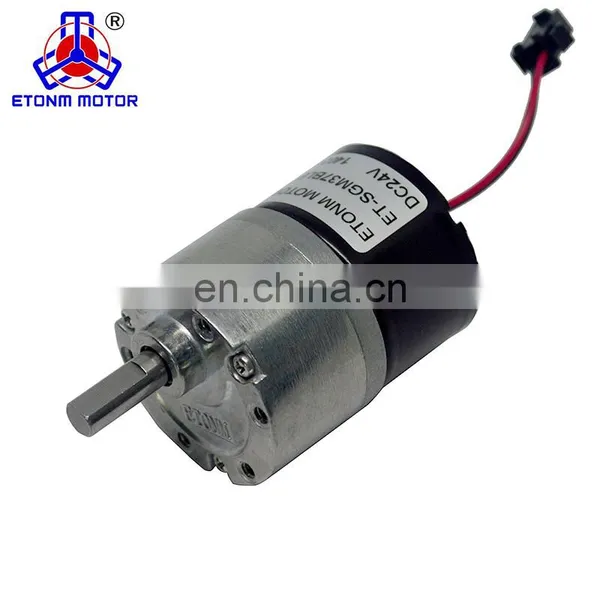

ET-SGM37BL-B 37mm 3.7RPM-300RPM 24V Micro Brushless DC Spur Gear Motor 0.6kg - 35kg photo-2
ET-SGM37BL-B 37mm 3.7RPM-300RPM 24V Micro Brushless DC Spur Gear Motor 0.6kg - 35kg photo-3

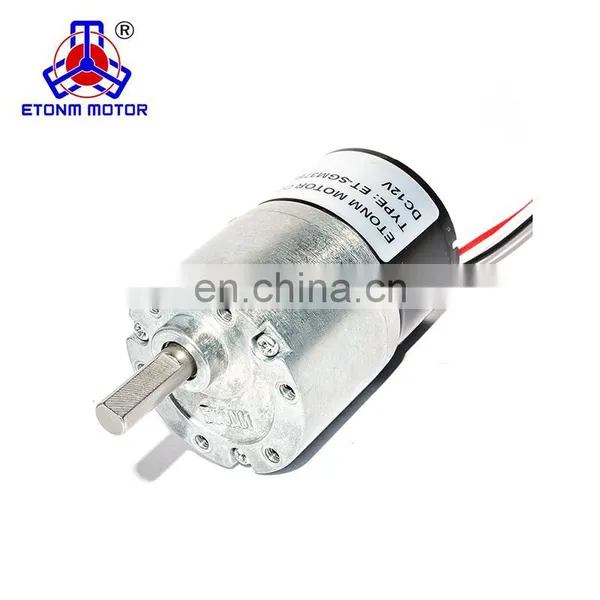

ET-SGM37BL-B 37mm 3.7RPM-300RPM 24V Micro Brushless DC Spur Gear Motor 0.6kg - 35kg photo-4

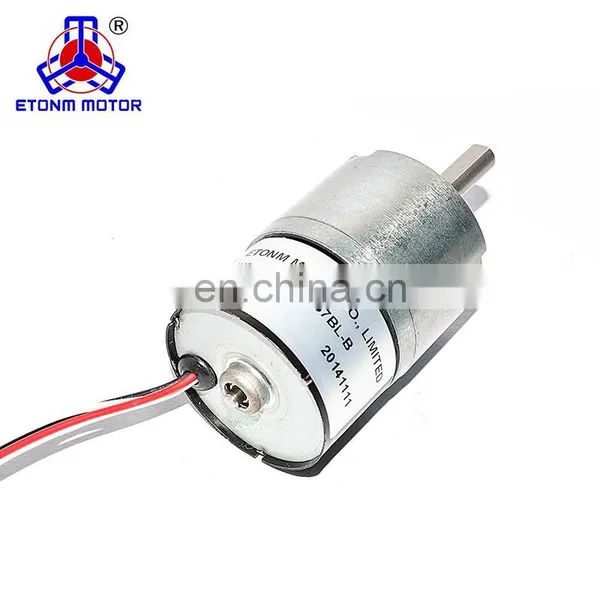

ET-SGM37BL-B 37mm 3.7RPM-300RPM 24V Micro Brushless DC Spur Gear Motor 0.6kg - 35kg photo-5
US$ 8.21 - 22.18 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-SGM37BL-B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ETONM
Place of Origin Guangdong, China
Model Number ET-SGM37BL-B
Product Description
Product Name
12V 24V BLDC Motor with gearbox 500rpm
Material
stainless steel
Voltage
12-24V
speed
10-600rpm
Torque
0.5-30kg.cm
Advantage
small dimension,low noise, low price
Certification
CE, ROHS
Application
humidifier, banking and vending automation

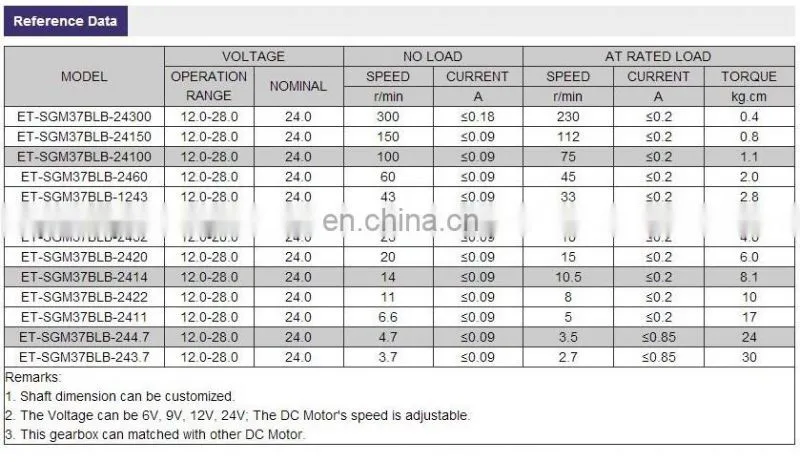

Product Parameters

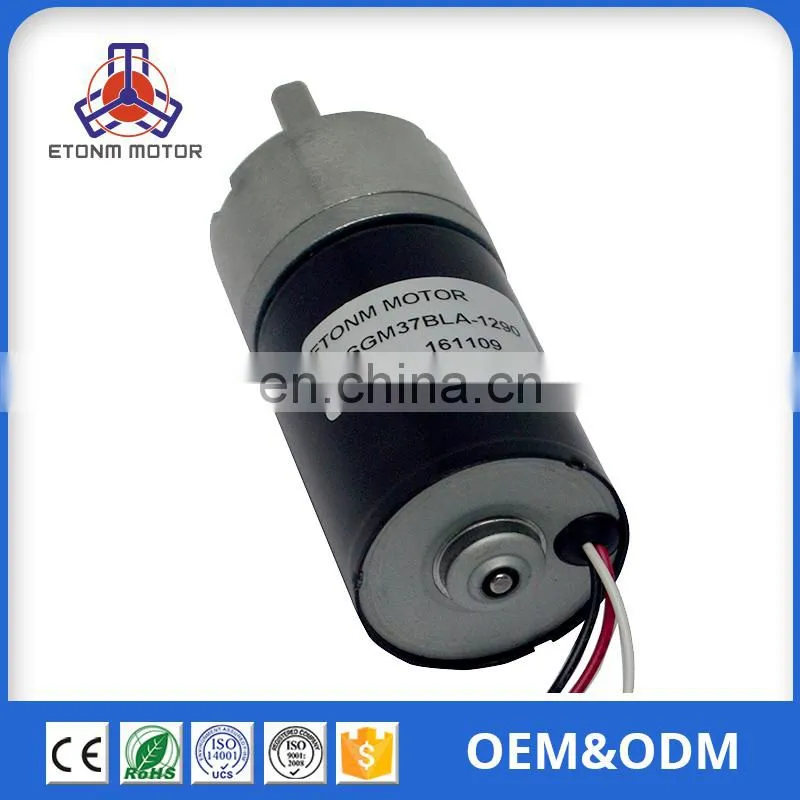

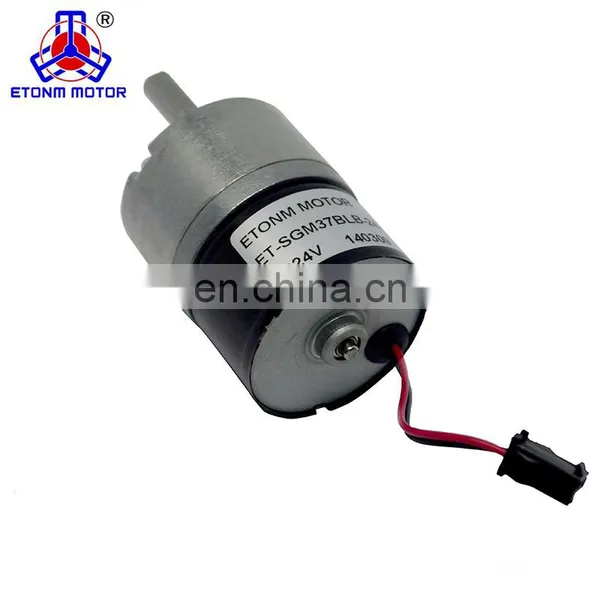

Products Show
Certifications
More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor

Our Company

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear MotorFlat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

         ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

         For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

         These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.


                Porduction Workshop

                 Production Process



Quality control
Packing & Shipping

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-30 days after payment.

1. Special protecting packaging
2. Outer Packing 1
3.  Outer Packing 2
