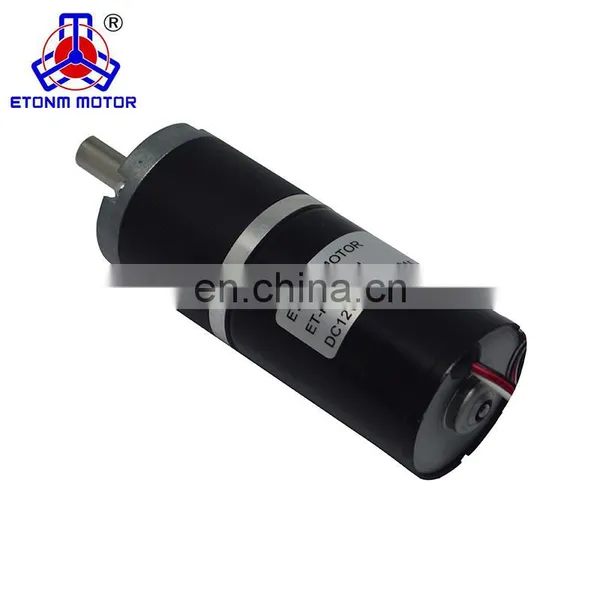

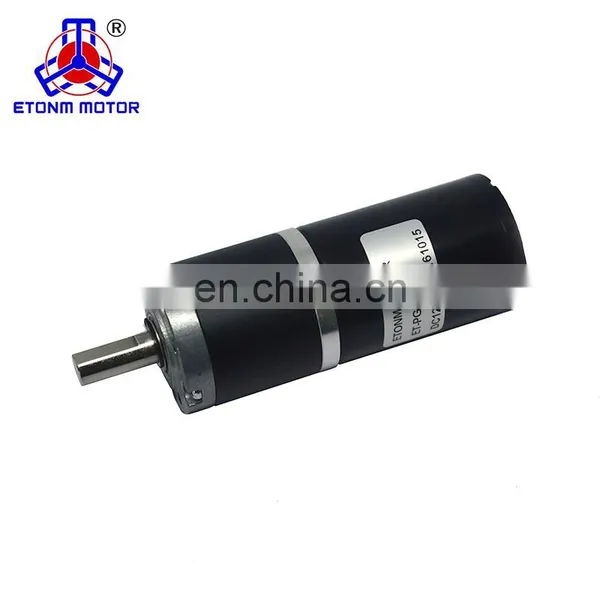

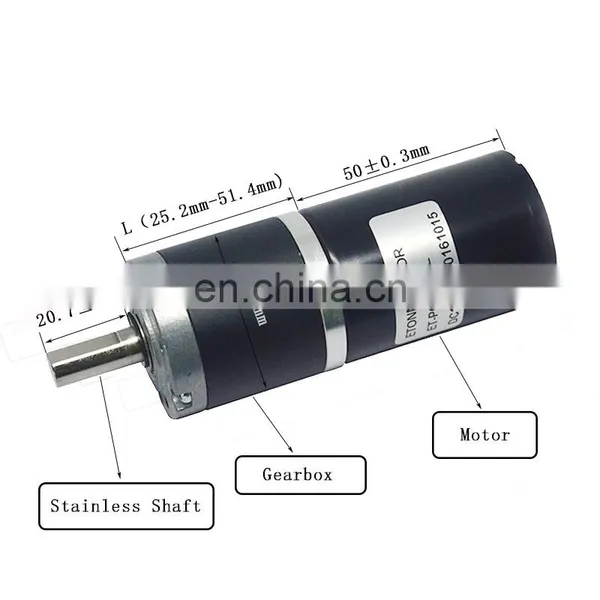

9v Electric Motor 12v dc Motor High Torque Low Rpm

9v Electric Motor 12v dc Motor High Torque Low Rpm thumbnail-1
9v Electric Motor 12v dc Motor High Torque Low Rpm thumbnail-2
9v Electric Motor 12v dc Motor High Torque Low Rpm thumbnail-3
9v Electric Motor 12v dc Motor High Torque Low Rpm thumbnail-4
9v Electric Motor 12v dc Motor High Torque Low Rpm thumbnail-5
9v Electric Motor 12v dc Motor High Torque Low Rpm photo-1
9v Electric Motor 12v dc Motor High Torque Low Rpm photo-2
9v Electric Motor 12v dc Motor High Torque Low Rpm photo-3
9v Electric Motor 12v dc Motor High Torque Low Rpm photo-4
9v Electric Motor 12v dc Motor High Torque Low Rpm photo-5
US$ 15.63 - 19.86 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-PGM36BL Brushless DC Motor Gearbox
Contact Supplier Request Quote Chat Now
Shenzhen Etonm Motor Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ETONM
Place of Origin Guangdong, China
Model Number ET-PGM36BL Brushless DC Motor Gearbox
Advantages



We know what you concern:



Our Service&Warranty:

1. Within 12 hours reply after recieve your inquiry

2. Excellect& Experience Engineer Team offer proffessional OEM&ODM Service

3. We have over 5 processes control order quality for every order

4. We have professional QA team manage any order feedback until all things solved



Our Partners:

9v electric motor 12v dc motor high torque low rpm

Credibility is our company basic principle, no matter what problems you met on our motors, just remember, we are here always.

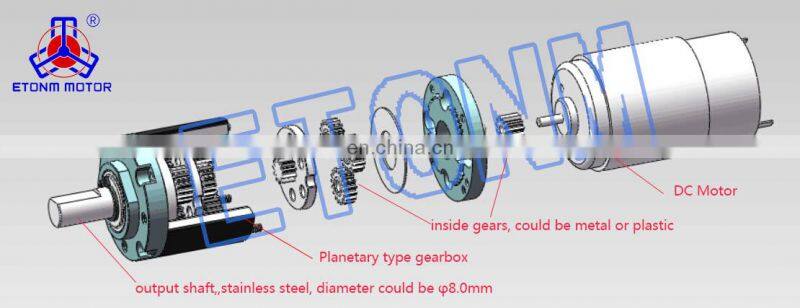

1. Why choose ET-PGM36BL?

ET-PGM36BLis a kind of High Torque 12V gear motor dc brushless , its advantages are:

Features:

a. high torque,could up to 60kg.cm

b. strong output shaft/axis, diameter 6.0mm, 8.0mm

c. all metal gears, could be plastic gears also

d. long working life time. we tested in our test room, its motor could run over 5000hours at average continously

e. good noise level. widely used in home&office applications

f. central output shaft/axis



 9v electric motor 12v dc motor high torque low rpm



Performance customizable:

a. speed could be customized, from 0.1~1500rpm

b. voltage could be 6VDC, 9VDC, 12VDC, 24VDC

c. shaft length could be changed

d. could be with or without encoder



Below performance table is for reference Only:



MODEL
VOLTAGE
NO LOAD
AT RATED LOAD
OPERATION RANGE
NOMINAL
SPEED
CURRENT
SPEED
CURRENT
TORQUE
r/min
mA
r/min
A
kg.cm
ET-PGM36BL-121150
8.0-14.0
12VDC
1150
≤350
961
≤1.7
1.5
ET-PGM36BL-12315
8.0-14.0
12VDC
315
≤350
263
≤1.7
4.0
ET-PGM36BL-12222
8.0-14.0
12VDC
222
≤350
185
≤1.7
6.5
ET-PGM36BL-1284
8.0-14.0
12VDC
84
≤350
70
≤1.7
14.5
ET-PGM36BL-1232
8.0-14.0
12VDC
32
≤350
26
≤1.7
 33
ET-PGM36BL-128.3
8.0-14.0
12VDC
8.3
≤350
7
≤1.7
60*
ET-PGM36BL-121.6
8.0-14.0
12VDC
1.6
≤350
1.3
≤1.7
60*
Remarks:
1. Shaft dimension can be customized.
2. The Voltage can be 6V, 12V, 24V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.







Lead Time

Lead time:

Samples: 10 working days normally, 1-3 working days at fast if material stock



Mass production: 30-35 working days normally

Product Uses

Typical Applications:

  • Home&Office Applications: Electric Blinds, Automative Kitchen Cabinet, 3D Printer, Shredder, TV Lift, Table Lift, Smart Heating Control System, Office Machine, Humidifier, BBQ. Pet Feeder
  • Security Industry: Safebox, Smart Lock, Intellegent CCTV System, Access System
  • Robot: Robot Arm, Robot Head, Education Robot, Floor Cleaning Robot;
  • Sanitary Applications: Tissue Dispenser, Towel Dispenser, Smart Toilet Seat, Air Freshener, Soap Dispenser
  • Other uses: Valve, CNC Machine, Vending Machine, Camera Slipping, Medical Equipment.....

9v electric motor 12v dc motor high torque low rpm



Any Interesting or Question, email us directly!





Certifications

9v electric motor 12v dc motor high torque low rpm







Company Information

Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. Even since the beginning, Etonm have been holding “Mutual-Benefit, Truthful and Innovative” as it core value. Our official website , you could know about us in detail there.



9v electric motor 12v dc motor high torque low rpm



9v electric motor 12v dc motor high torque low rpm





 Events: EXPO March Alibaba & SIA Fair, Shanghai



9v electric motor 12v dc motor high torque low rpm
