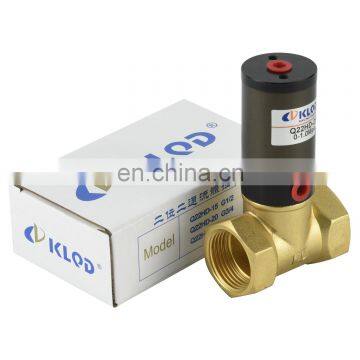

The Most Popular Zhejiang Kailing Pneumatic Piston For Neutral Liquid And Gaseous Q22HD-15 Valves
US$ 13.5 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
KLQD
Place of Origin:
Zhejiang, China
Model Number:
Q22HD-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Sanitary Pneumatic Angle Seat Valve for Food IndustryUS$ 26.5 - 26.5MOQ: 5 Pieces -
KLJZF Series 2 Inch Stainless Steel Beer Pneumatic Control ValveUS$ 62.4 - 62.4MOQ: 5 Pieces
-
2/2 Way Tri-clamp Connection Stainless Steel Pneumatic Angle Seat ValveUS$ 10 - 38MOQ: 1 Set
-
2/2 Way Piston Operated Flange Stainless Steel Pneumatic Angle Seat ValveUS$ 11.5 - 103MOQ: 1 Set
-
2/2 Way Piston Operated Stainless Steel Thread Pneumatic Angle Seat ValveUS$ 5 - 33MOQ: 1 Set
Brand Name
KLQD
Place of Origin
Zhejiang, China
Model Number
Q22HD-15
Material
Brass
Application
General
Pressure
Medium Pressure
Power
Pneumatic
Port Size
ZG1/2"
Temperature of Media
Normal Temperature
Product Description
Ordering Code |
||||||||
Q |
22 |
HD |
1 |
15 |
||||
Pneumatic Operation |
2/2way |
Pneumatic Piston Valves for Neutral Liquid and Gasesous Media |
Single Action |
Orifice Size |
||||
Specification
Model |
Q22HD-15 |
Q22HD-20 |
Q22HD-25 |
Q22HD-35 |
Q22HD-40 |
Q22HD-50 |
|||||
Ofifice Size |
15 |
20 |
25 |
35 |
40 |
50 |
|||||
Port Connection |
ZG1/2" |
ZG3/4" |
ZG1" |
ZG1-1/4" |
ZG1-1/2" |
ZG2" |
|||||
Working Medium |
Air,Water,Oil,liquefied gas,free-running viscosity liquid |
||||||||||
Fluid Pressure |
0~1.0MPa |
||||||||||
Medium Temp |
NBR for -5~80℃ and EPDM,VITON for -5~150℃ |
||||||||||
KV Valvue |
4 |
5 |
10 |
25 |
25 |
40 |
|||||
Details Images
Product packaging
Delivery
Company Profile
FAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air
C.Express Service
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C,
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q7: How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air
C.Express Service
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
