Product Series:CWX

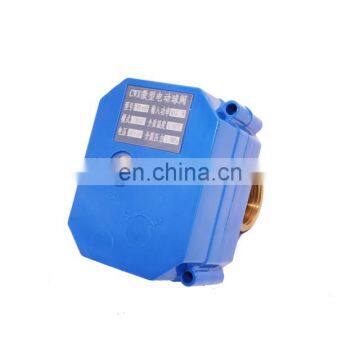

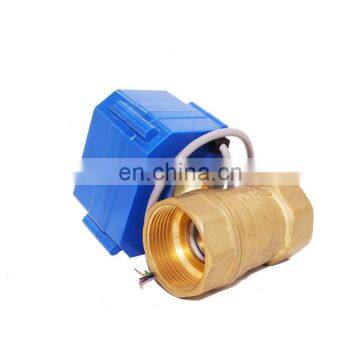

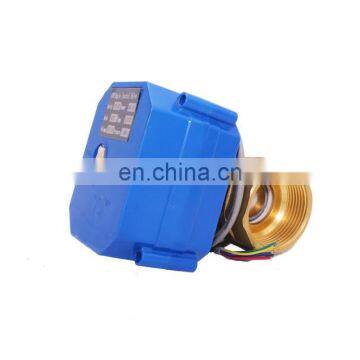

Product Name :CWX-60P Large Output Torque Electric ball valve
For specification details, please consult the sales representative.
| Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
| CWX-60P | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA(CR04 except Max150mA) | 6NM | <8s | DN8-32 Two-way DN8-25 Three-way |
| Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |
| Max1.0Mpa | 5W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 CR06 | IP65 | CRO1,CRO2, CRO3,CRO4 can with feedback signal |
Brass | Connection | Sizes | d | H | L |
Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
Vertical Three-way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 15 | 81 | 44 | ||
| DN32 | 20 | 76 | 50 | ||
| Both female thread | DN15 | 15 | 68 | 38 | |
CPVC | Both female thread | DN15 | 15 | 60 | 47 |
| DN20 | 20 | 72 | 51 | ||
SS304/316
| Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 | ||
| Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
| DN8 | 6 | 52.6 | 39 | 24.5 | |
| DN15 | 12 | 72 | 55 | 39 | |
| DN20 | 15 | 86 | 63.5 | 44 | |
| DN25 | 15 | 97 | 68.5 | 43.5 |
1. Are you manufacturer or trading company?
We are manufacturer, we have been in electric valve industry for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample orders need about 3 working days, for larger order, it denpends on the quantity.
5.Would you offer a discount if l have a large order?
A; Yes, we could offer different discounts according to the order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
