CWX - 60p mini electric valve / brass 2 or 3 way large output water valve

FOB Price

USD $10.2 - $12 / Piece

2 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port TIANJIN PORT
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	CWX	Place of Origin:	China	Model Number:	60P
Application:	General	Structure:	Ball
Port Size:	DN10,DN15,DN20,DN25,DN32	Media:	Water

Product Description

Company Information

Product Description

Product Series:CWX

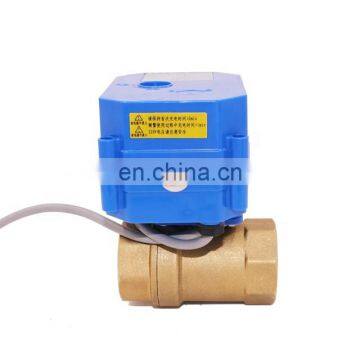

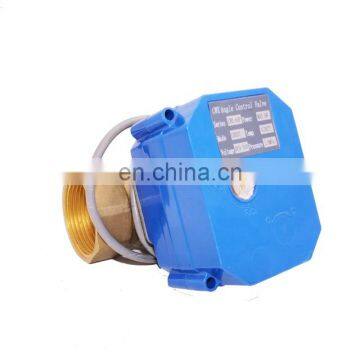

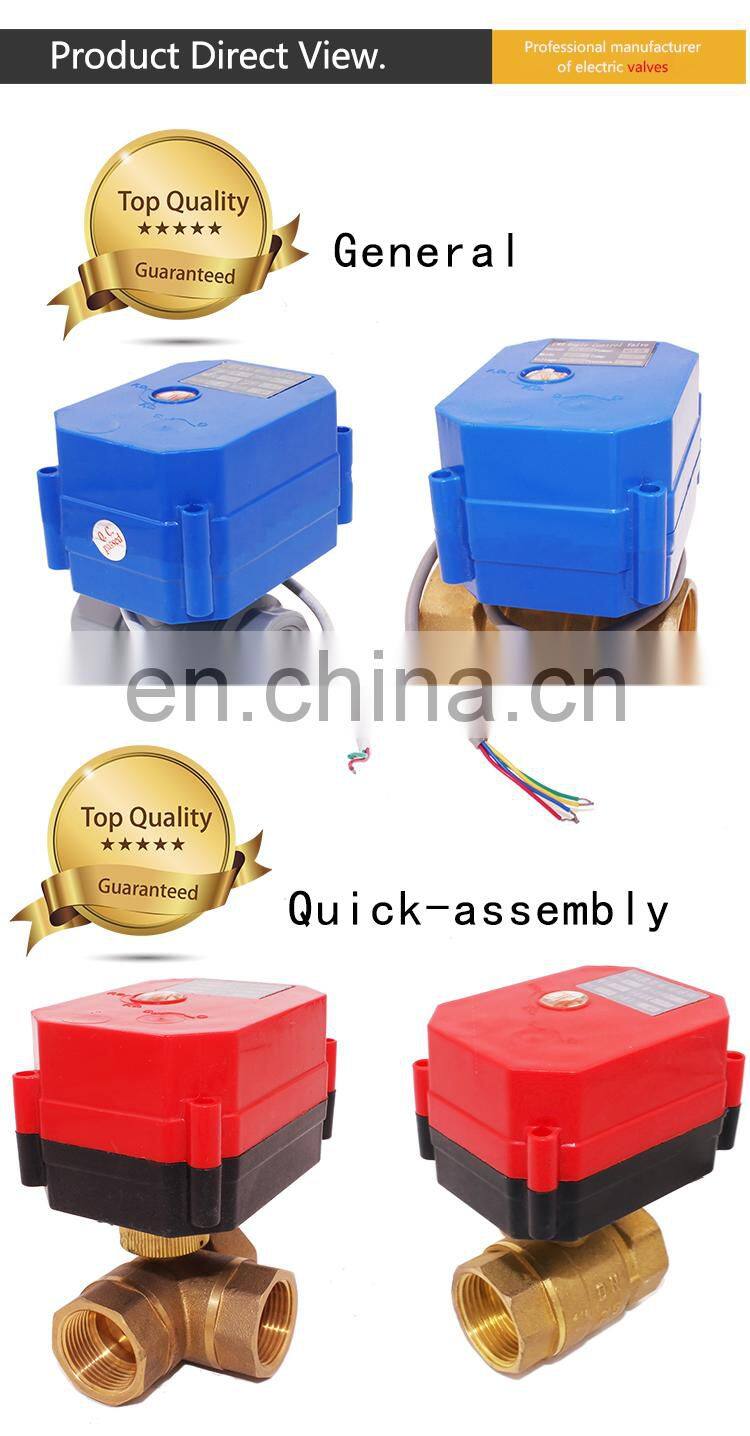

Product Name :CWX-60P Large Output Torque Electric ball valve

For specification details, please consult the sales representative.

Product Model	Rated Voltage	Working current	Output torque	Open/close time	Size
CWX-60P	DC3-6V DC12V AC/DC9-24V AC220V AC85-265V	Max100mA(CR04 except Max150mA)	6NM	<8s	DN8-32 Two-way DN8-25 Three-way
Working pressure	Power	Medium temperature	Control mode	IP Grade	Special function

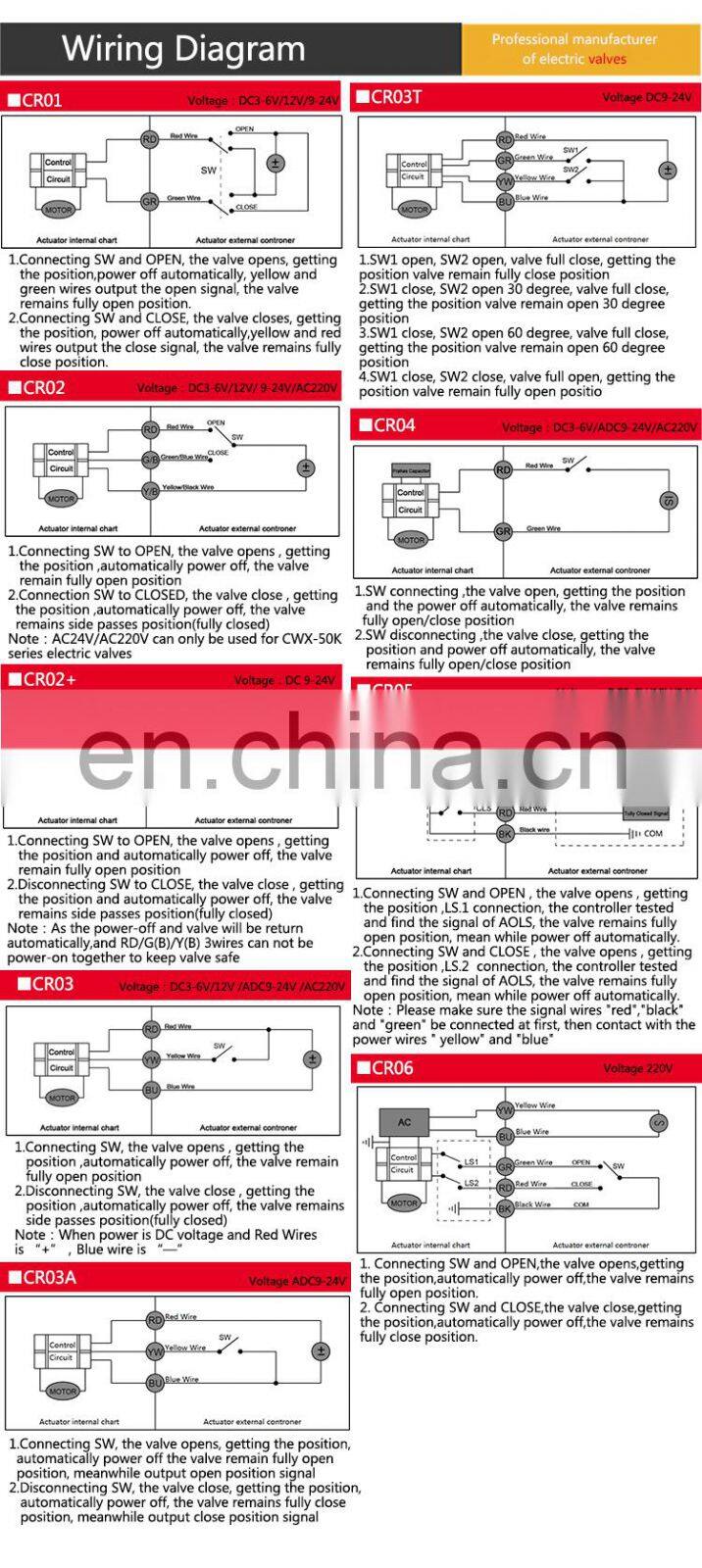

Max1.0Mpa	5W	0-90℃	CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 CR06	IP65	CRO1,CRO2, CRO3,CRO4 can with feedback signal

Brass	Connection	Sizes	d	H	L
	Both female thread Full-port	DN8	8	46	31
		DN15	15	57	38
		DN20	20	71	45
		DN25	23.5	72	49
	Both female thread Reduce-port	DN10	8	46	31
		DN20	15	66	38
		DN25	20	72	47
		DN32	25	86	60
	Vertical Three-way	DN15	12	63	49
	Vertical Three-way	DN20	15	66	53
	Female-male thread	DN15	15	63	38
		DN20	15	66	38
		DN25	15	81	44
		DN32	20	76	50
	Both female thread	DN15	15	68	38
CPVC	Both female thread	DN15	15	60	47
CPVC	Both female thread	DN20	20	72	51
SS304/316	Both female thread	DN8	8	46	31
		DN10	8	46	30.5
		DN15	15	55	38
		DN20	15	63	39
		DN20	20	71	45
		DN25	20	75	47
		DN25	25	72	49
Horizontal Three-way (Brass)	Sizes	d	L1	L2	H
	DN8	6	52.6	39	24.5
	DN15	12	72	55	39
	DN20	15	86	63.5	44
	DN25	15	97	68.5	43.5

Packaging & Shipping

FAQ

1. Are you manufacturer or trading company?
We are manufacturer, we have been in electric valve industry for more than 10 years. So we have advantage in price. We also could do OEM.

2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.

3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.

4. What about the delivery time?
Sample orders need about 3 working days, for larger order, it denpends on the quantity.

5.Would you offer a discount if l have a large order?
A; Yes, we could offer different discounts according to the order quantity.

6.Where is the factory located?
Tianjin city and welcome to visit our factory.
