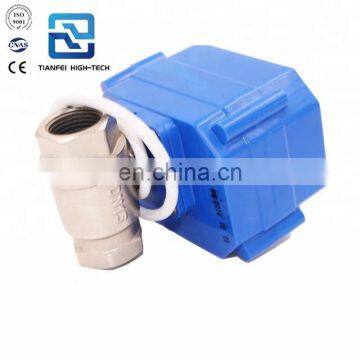

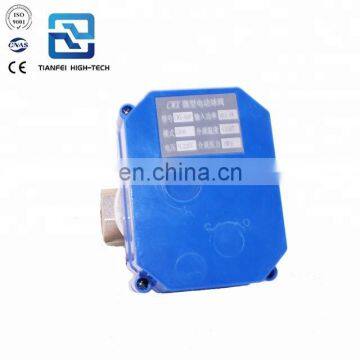

Alternative Solenoid Valve Motorized Ball Valve 12v dc Electric Actuator Motor Operated Valve
Alternative solenoid valve motorized ball valve 12v dc electric actuator motor operated valve
1,Metal gearbox and metal gear design, low noise, perform reliably
2,Long service life: more than 100000 circles
3,Electric limit and machinery limit design, located accurately, avoid gear run
continuously.
4,Multi-angle assembling, easy to install
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1. IC card smart water meter, heat meter
2. HVAC and fan coil, fire sprinkler, etc.
3. Universities water, automatic control systems, industrial automation and other small devices
4. Environmental protection, water supply and drainage, water treatment
5. Replace the solenoid valve where can not working
6. The water-saving appliances, equipment and other drinking water
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
| CWX-60P | DC3-6V DC12V | Max100mA (CR04 except Max150mA) | Max6NM | <8s | CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 CR06 |
| Working pressure | Power | Medium temperature | Size | IP Garde | Special function |
| Max1.0Mpa | <5W | 0-90℃ | DN8-32 Two-way DN8-25 Three-way | IP65 | CR01 CR02 CR02+ CR03 CR03A CR04(with singal feedback) |
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
Both feamle thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN15 | 10 | 66 | 38 | ||
| DN20 | 15 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
Vertical Three-way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 15 | 81 | 44 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| CPVC | Both female thread | DN15 | 15 | 60 | 47 |
| DN20 | 20 | 72 | 51 | ||
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 | ||
| Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
| DN8 | 6 | 52.6 | 39 | 24.5 | |
| DN10 | 12 | 72 | 55 | 39 | |
| DN20 | 15 | 86 | 63.5 | 44 | |
| DN25 | 15 | 97 | 68.5 | 43.5 |
Click here for more information
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.


1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
