Sale electric proportional valve actuator motorized proportional valve 12v to industrial automation
- 1000 Piece / Pieces per Month
- T/T Credit Card
- Mid-year Promotion Washing Machine Water Inlet 3 Way Diverter Water Flow Control Valve 15MM to Other Electrical Equipment
- 5V 12V CWX-15N brass ss304 12v dc electric water valve shut off
- CR01 CR02 CR03 CR04 CR05 CWX-15N 2 way brass ss304 mini 1 inch dn25 5vdc 12v electric ball valve
- DN8 DN10 DN15 DN20 DN25 DC5V 220v brass SS304 thread BSP NPT water leak detector 12v electric water ball valve
- Factory Supply 2 Way Motorized Stainless Steel Electric water Ball Valve
- Mini Electronic Motorized ball Valve
Product Details
Brand Name: | CWX | Place of Origin: | Tianjin, China | Model Number: | CTF-001 |
Material: | Stainless Steel | Application: | General | Structure: | Ball |
Standard or Nonstandard: | Standard | ||||
Port Size: | DN8-DN32 | Media: | Water | Temperature of Media: | Medium Temperature |
Product Description

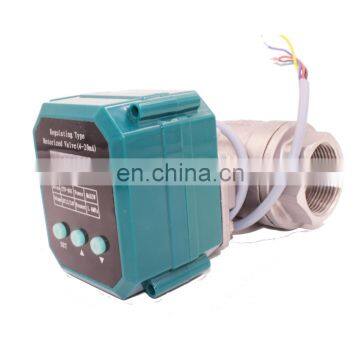

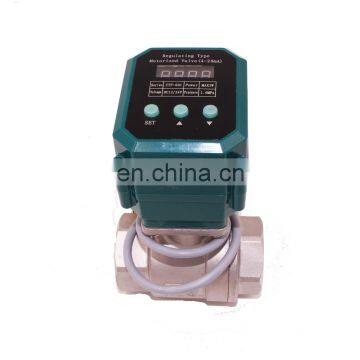

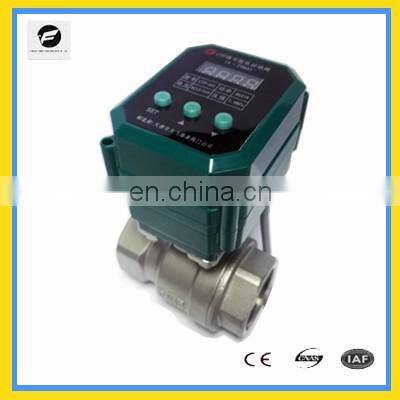

Sale electric proportional valve actuator motorized proportional valve 12v to industrial automation
1. Simple design, compact size, 4-20ma adjustment, is the intermediate product
connecting civil and industrial valves.
2. The product running state LCD screen is visible and has manual and electric control
functions.
3. Adopt all-metal gear transmission, with reliable performance output torque, up to
10NM.
4. Adopt double limit of electrical and mechanical, accurate positioning and high
consistency.
5. The connection between the actuator and the valve body is ISO5211 standard, and
the flange type is F03 and F05, which is convenient for the user to match the valve
body.
6. The ball valve adopts the floating seal structure, no drop leakage, which is suitable
for heavy dirt and long period of no action.
7. Good sealing performance, the protection grade is IP65.
1. University LABS, automotive laboratories.
2. Drug production, diesel fuel saving, etc.
3. Small equipment such as water saving, automatic control system and industrial
automatic control in colleges and universities;
4. Agricultural irrigation, environmental protection, water supply and drainage, water
treatment works;
5. Water-saving appliances, drinking water equipment, etc.
Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
CTF001 Modulating type | DC12V DC24V | <200mA | Max6NM | <30s | 4-20mA |
Working pressure | Power | Medium temperature | Size | IP Garde | Mode of regulation |
Max1.6Mpa | <5W | 0-90℃ | DN8-32 | IP65 | Manual and electric |
SS304/316 | Sizes | d | L | H |
DN15 | 15 | 62 | 55 | |
DN20 | 20 | 71 | 63 | |
DN25 | 25 | 81 | 78 | |
DN32 | 32 | 93 | 84 | |
UPVC | DN15 | 15 | 121 | 50 |
DN20 | 20 | 135 | 62 | |
DN25 | 25 | 150 | 69 | |
DN32 | 32 | 165 | 82 |
Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
DN15 | 15 | 61 | 48 | 46 | |
DN20 | 20 | 67 | 48 | 54 | |
DN25 | 25 | 96 | 74 | 68 | |
Horizontal Three-way (SS304/316) | DN15 | 15 | 80 | 52 | 54 |
DN20 | 20 | 82 | 62 | 59 | |
DN25 | 25 | 87 | 67 | 71 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
Quick Details
Standard or Nonstandard | Standard | Structure | Ball | Pressure | 1.0Mpa/10bar/150psi |
Power | DC12v DC24v | Material | Stainless steel (304, 316), brass, | Temperature of Media | 0-90°C |
Media | water,air,acid,gas. | Port Size | 1/4",1/2",3/4",1",1 1/4" ,8mm,10mm,15mm,20mm,25mm,32mm | Place of Origin | Tianjin China (Mainland) |
Model Number | CTF-001 | Brand Name | CWX | Special function | Position indicator;quick open |
Actuator rotation | 90 degree | Actuator | heat-resistant ABS | Sealing | PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings |
Torque output | 10NM | Control mode | 2,3,5 wires(CR01-CR06) | Approve | Solar thermal,under-floor,rain water,irrigation |
Low Working Current | <200mA | Rotation direction | double acting | Product life | 100,000 times |
Packaging & Delivery
Packaging Detail | Paper Carton:48x40x28(CM)/100pcs/0.054Cubic Meter 27x24x19(CM)/50pcs/0.012Cubic Meter 13x10x8.5(CM)/2pcs/0.011Cubic Meter |
Delivery Detail | Within 3-5 working days(samples and order<1000USD)via Express |
Specifications
2 way ball solenoid water valve
Open/close:3 seconds.
Fail safe(auto-return) function,
The best alternative to the solenoid
2-Way Ball Solenoid Water Valve
Special
Size:1/4",1/2",3/4",1",1 1/4" ,8mm,10mm,15mm,20mm,25mm,32mm
Voltage:DC3-6V,,AC/DC9-24V,AC110V,AC120V,AC220V
Valve body Material:Stainless steel (304, 316), Brass,Ni plated Barss
Open/close time:3-5sec
Working pressure:1.0Mpa/10bar/150psi
Torque output:1.5NM-6NM
Control mode:2,3,5 wires(CR01-CR06)
Valve End:BSP(British Standard)&NPT(ASSI) Thread
Ball Type:T or L flow
Power:maximum 5W
Medium temperature:0-90°C
Actuator rotation:90 degree
Rotation direction:double acting
Low Working Current:<200mA
Working Medium:water,air,gas.
Product life:100,000 times
Enclosure:IP65
Main export areas:Europe,Asia,North America, South America,Mid East,Oceania,Africa
Features
1. Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.
2. Electrical limit and machinery limit design,accurate position,avoid gear with switch.
3. Multi-angle assembling,easy to install.
4. Float ball structure,no leakage,especially suitable for heavy pollution conditions.
5. Good substitution for solenoid or pneumatic valve.
6. High protection class,can be worked in moist conditions. IP65.
Material of main parts:
Actuator:heat-resistant ABS
Sealing:PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Body:brass or stainless steel
Ball:brass or stainless steel
Stem:brass or stainless steel
Situable for
1.IC card meters,heat energy meters
2.Air-warm valve.HVAC and fire works.
3.Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
Domestic water,Irrigation system,cooling/heating system,Low voltage plumbing system
6.Multiple voltage and control mode, applicable to a variety of occasions.
