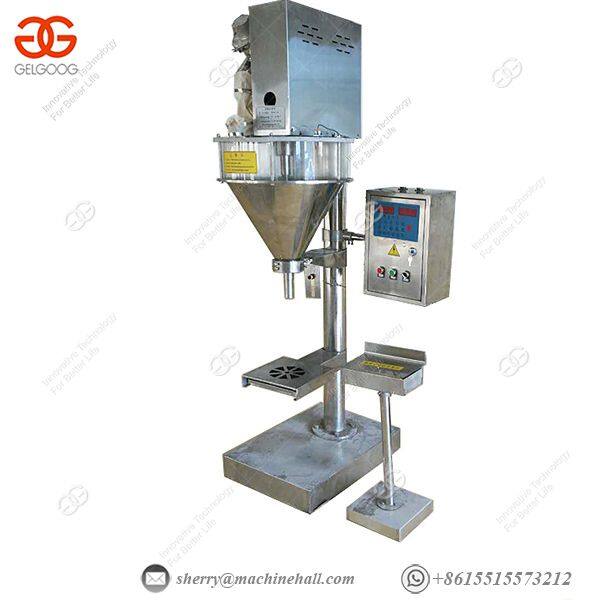

Maize Flour Packaging Machine Flour Packing Machine Stainless Steel
- 100 Set / Sets per Month
- Qingdao
- T/T L/C Other
- 15 days
- Salt Fruit Powder Filling Machine Stainless Steel Cocoa Powder Bottle Filling And Packing Machine
- Stainless Steel Starch Packing Machine Detergent Powder Filling Packing Machine
- Detergent Powder Filling Packing Machine Stainless Steel Flour Packing Machine
- Salt Fruit Powder Filling Machine Flour Bags Packaging Machine Semi-automatic
- Stainless Steel Milk Powder Packaging Machine Flour Bags Packaging Machine
- Maize Flour Packaging Machine Salt Fruit Powder Filling Machine Ce
Product Details
Brand Name: | GELGOOG | Place of Origin: | China | Model Number: | GG-F01S |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Dimension(L*W*H): | 3000 * 1060 * 2000mm |
Voltage: | 220v | Condition: | New | Automatic Grade: | Semi-Automatic |
Packaging Details
Wooden Packing As Export Standard
Product Description
Features:
1. The whole wheat flour packaging machine is processed with high-quality stainless steel, which effectively prevents the material from being contaminated, and conforms to the food QS and pharmaceutical GMP hygiene and safety.
2. The equipment has stable performance, convenient operation and maintenance, low failure and high efficiency.
3. It adopts stepping motor control, photoelectric switch to control the feeding, and the packaging container is not limited (bags, cans, bottles are acceptable).
4. It can be equipped with a feeding machine to automatically control the material level, which is more convenient to use, while reducing labor costs and improving production efficiency.
5. Fully sealed glass stainless steel combined semi-open material box, which can be easily removed and washed without tools.
6. Using Taiwan-made touch screen and PLC control, it has the advantages of stable work, anti-interference, convenient operation, intuitive, long life and so on.
7. The filling adopts servo motor to drive the screw, which has the advantages of accurate positioning, high precision, fast speed, large torque, settable speed, and good stability.
8. The mixing adopts Taiwan-made maintenance-free geared motor, with low noise, long life, and lifetime maintenance-free.
9. The working parameter formula of product adjustment can be stored for later use, and up to 10 sets of working parameters can be stored.
10. The screw attachment adopts quick-clamp connection, which can be replaced quickly, and can adapt to the packaging needs of various materials from ultra-fine powder to small particles.
11. The chain conveyor belt conveys the packaging container, the turntable distributes and locates, etc., and the product qualification rate is high.
12. Weighing feedback and defective product rejection functions can be added according to requirements.
This packaging machine is suitable for quantitative filling, filling and packaging of general powder (powder, powder, powder), micropowder, superfine powder, and small particles that are not afraid of breaking. Applicable industries: powder packaging for pesticides, veterinary drugs, chemicals, feed, additives, building materials, food, condiments and other industries; such as flour, milk powder, cocoa powder, solid beverages, white sugar, monosodium glutamate, glucose, solid medicine, powdered additives, Powder or small particle materials such as carbon powder, talcum powder, pesticide, fuel, flavor, etc.
Model | GG-F01S |
Packaging materials | powder, flour |
Weighing range | 1-5000g |
Filling accuracy | 1% (different materials vary) |
Filling speed | 30-45 bags / min |
Power supply | 220v /50-60HZ |
Machine size | 3000 * 1060 * 2000mm |
The working principle of this machine is constant volume blanking and static weighing feedback. The machine adopts a special motor and is set according to the set packaging specifications. The mainboard computer calculates according to the set weight. After the blanking signal is obtained, the filling is completed at a high speed at one time Put the bag with the material on the weighing feedback table, let the computer read the corresponding weighing value and compare it with the theoretical value and then perform feedback adjustment. The next time the material is unloaded will be based on the feedback correction value. And so on. This measurement mode is suitable for 5g-500g material packaging specifications up to 1/100 error accuracy.
