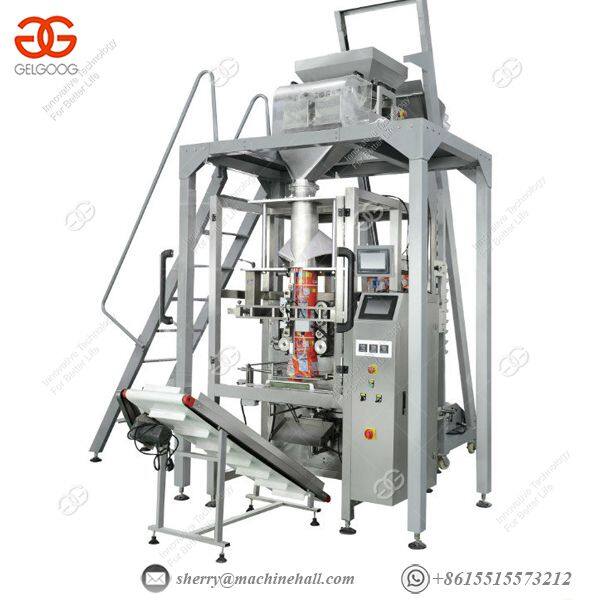

Snack Packaging Machine 10 Head Combination Weigher Packing Machine Vertical

Wooden Packing As Export Standard

Machine features:

1. The supporting machines of this machine are all stainless steel except the materials indicated, and all the machine structures are selected and designed in accordance with food hygiene standards;

2. The material of the container in contact with the material is food grade SUS304;

3. The structures that are frequently dismantled and washed are connected by easy dismantling parts to ensure convenient handling and sanitation when shifting or changing products.

4. The machine can automatically complete the following tasks: material lifting-combination scale measurement-coding-bag making-filling-inflation / exhaust (optional)-sealing-counting-finished product output- Finished product finishing.

5. Adopt PLC servo and pneumatic control system, super large touch screen constitutes the core of drive control; high reliability and intelligence, and equipped with safety protection.

6. The touch screen can store the packaging process parameters of a variety of different products, which can be used at any time when changing products without resetting.

7. Equipped with a fault display system, faults can be clear at a glance for timely troubleshooting.

8. The punch holder can be customized according to customer needs.

Main components:

1. Z-type vibrating material conveyor: the exterior of the equipment is made of stainless steel, the material is in contact with food and PP, conveying capacity: 3-5 cubic meters per hour, lifting height: 3100m

2. Automatic weighing and packaging equipment: the exterior of the equipment is made of stainless steel, weighing range: 10-1000g, maximum weighing speed: 30-60 times/min, power supply: 220V-50HZ

3. Self-made bag packaging equipment: KL-420 automatic packaging equipment, the exterior of the equipment is made of stainless steel, bag size: length 100-300m, width 80-200mm

4. Stainless steel finished product belt conveyor, equipment appearance is made of stainless steel

The packaging machine is configured according to the conventional tinning process, the whole production process is highly automated, in line with China's GMP health standards.

The nuts packing machine is mainly used for packaging granular products: such as chips, chips, frozen chips, snacks, dates, nuts, beans, grains, etc.
