Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Slocable Customized 16mm2 Panel Inverter Battery Solar Wire Cable
Slocable Customized 16mm2 Panel Inverter Battery Solar Wire Cable
US$ 1.9 - 1.93
MOQ: 10 Meters
Key Specifications
Get Latest Price
Brand Name:
Slocable
Place of Origin:
Guangdong, China
Model Number:
CA102B--PE PV Cable 1x16mm2
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Slocable Twin Cores 2.5sqmm 4sqmm 6sqmm 10sqmm Pure Copper PV CableUS$ 0.55 - 1.49MOQ: 10 Meters -
Slocable Photovoltaic Double Core 14awg 2.5mm2 Copper PV Solar CableUS$ 0.64 - 0.8MOQ: 100 Meters
-
Slocable High Quality 2x4mm2 12awg Tin Plated Copper PV1 f Wire Made in ChinaUS$ 1.02 - 1.1MOQ: 100 Meters
-
Slocable No Halogen XLPO XLPE PV Dual Core 6mm2 Copper Solar WireUS$ 1.46 - 1.5MOQ: 10 Meters
-
Slocable Crimped With Connector 1x10mm2 XLPE PV Copper CableUS$ 0.93 - 1.03MOQ: 10 Meters
Brand Name
Slocable
Place of Origin
Guangdong, China
Model Number
CA102B--PE PV Cable 1x16mm2
Type
High Voltage
Insulation Material
XLPE
Conductor Material
Copper
Slocable Photovoltaic DC 132A 1000V 1500V Single Core Solar Cable 16mm2
Detail Information for 16sqmm Cable
|
Technical Data of 16mm2 Cable
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x16mm2 | 16.0mm2 | 224xφ0.3mm | 5.5mm | ≤1.24 Ω/km | 10.5mm | 1500V/1000V | 132A |
Wire: Copper (Class 5, tinned) |
UV resistant |
Insulation material: XLPE |
High wear and abrasion resistance |
Double insulated |
Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free |
Smallest permissible bending radius : 5 x D |
High resistance against oil, greases, oxygen and ozone |
Temperature range: -40℃ ~ +90℃ |
Microbe-resistant |
Colours: Black, Red |

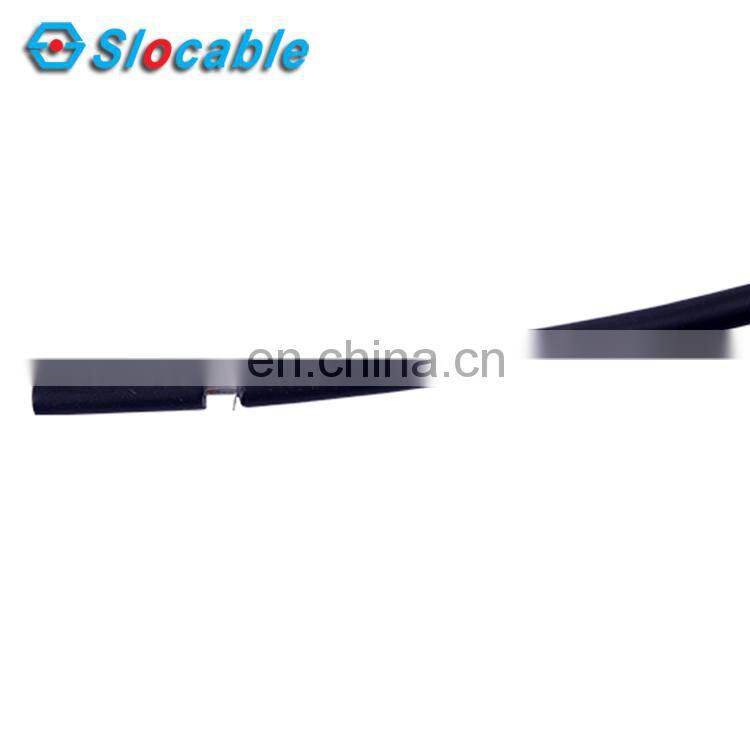

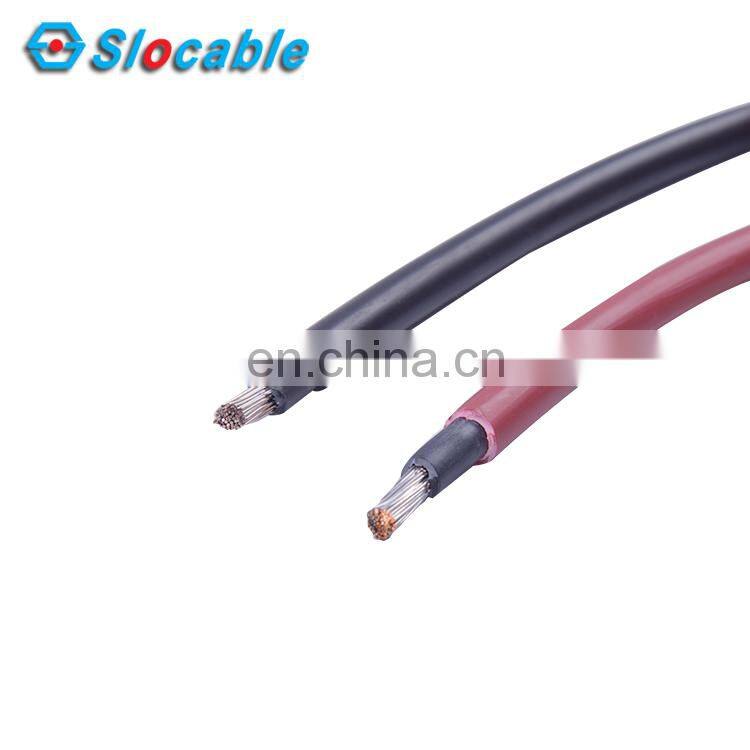

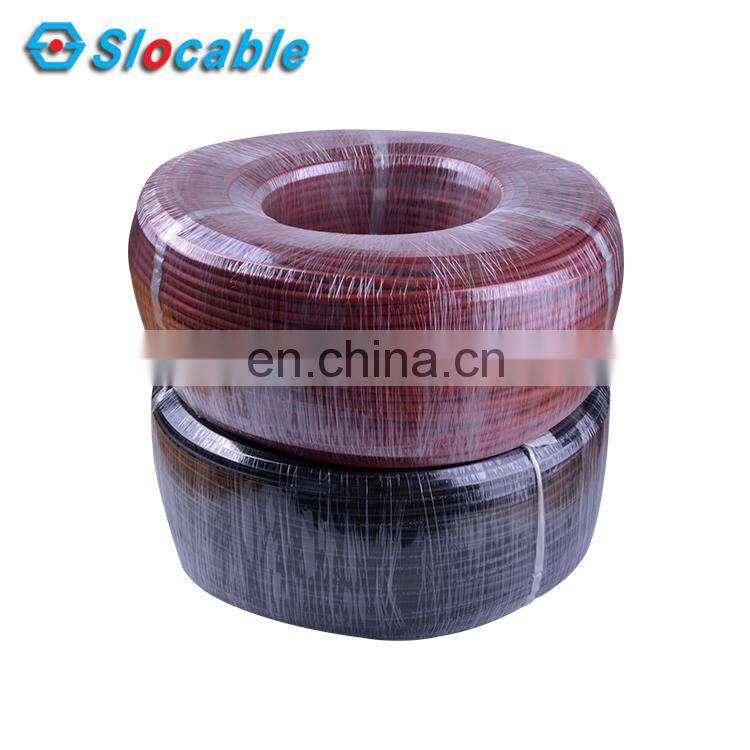

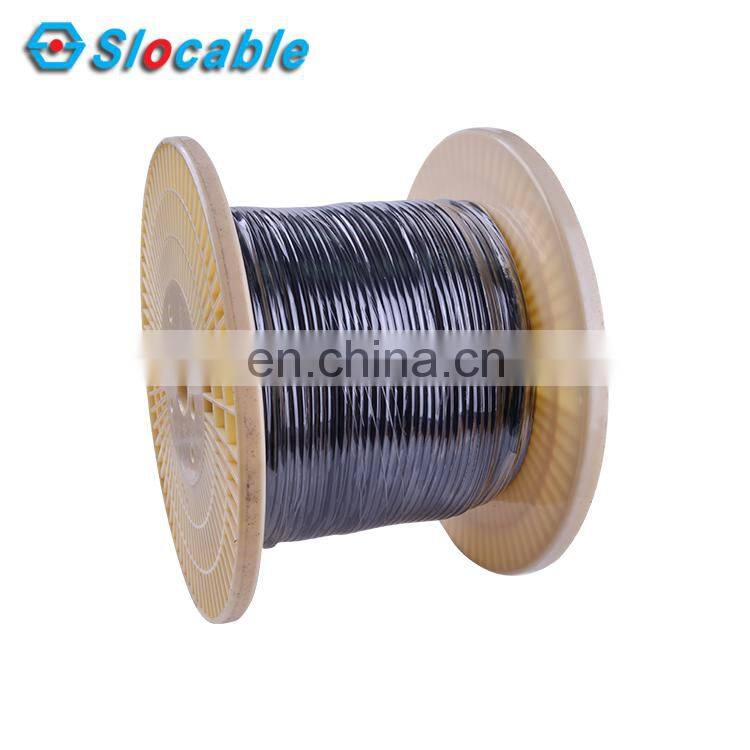

Pictures of 16sqmm Cable
Click the following picture to get more Slcoable products
Certificates
Our Company and Factory
Packing and Shipping
Our Exhibition
Successful Cases
IF any inquiry, please contact me!
