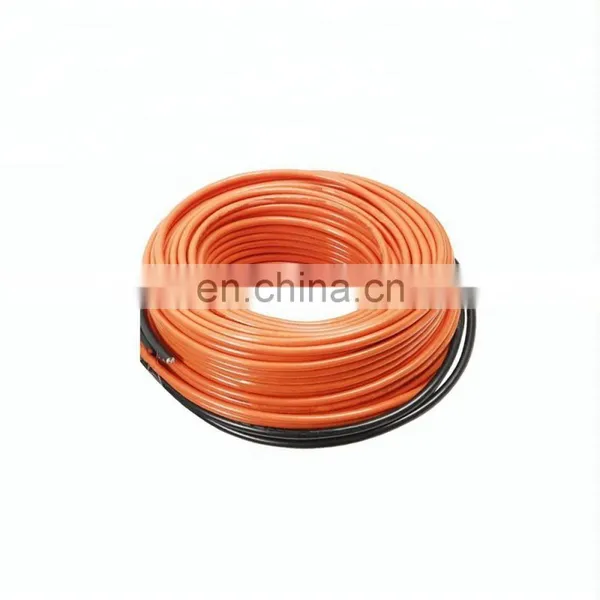

Cheap price Best Selling Driveway Heating Systems Floor Heating Cable
Product Dispaly
Single conductor heating cable |

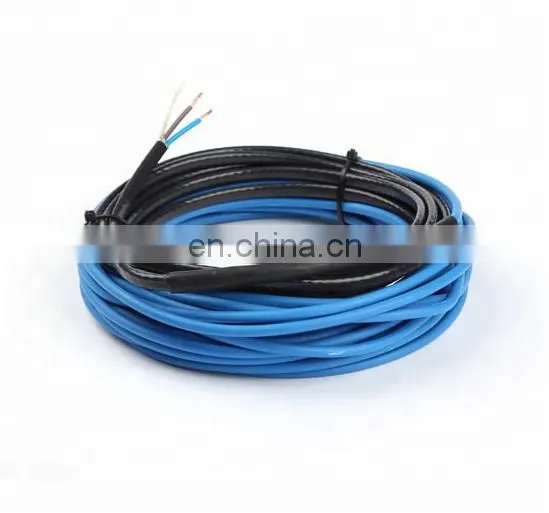

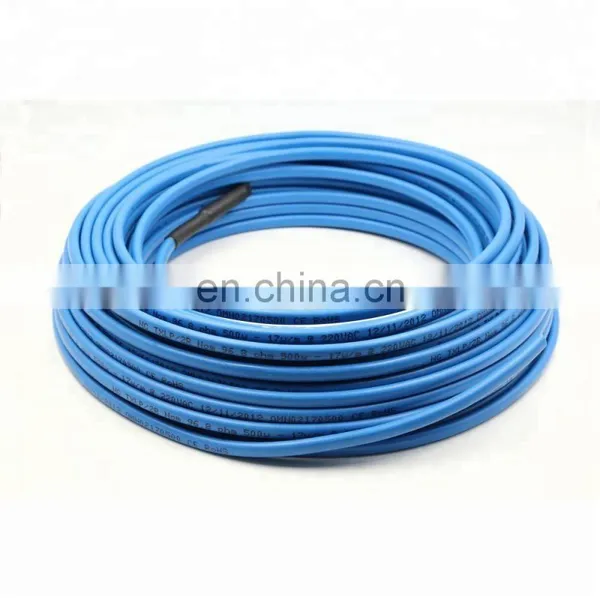

Twin conductor heating cable |
| 1.Nickel alloy wire | 1.Nickel alloy wire |
| 2.8 tinned copper wire | 2.8 tinned copper wire |
| 3.Cross-linked PE insulation | 3.Cross-linked PE insulation |
| 4.Armored shield | 4.Armored shield |
5.PVC jacket |
5.PVC jacket |
Product Application
The single-conductor industrial heating system assembly use an implicit connector, the core of the industrial heating system is composed of a hot-cold wire, and the outside is made up of an insulating layer, a earth wire, a shielding layer and a sheath layer.After the industrial heating system is energized, the heating wire generates heat, running between the temperature 40-60 ℃, buried in the filler layer of industrial heating system, through the way of heat conduction and far-infrared radiation to the heated body.Twin conductor industrial heating system with implicit connector, industrial heating system core by the cold and hot cable, the outside by the insulation layer, earth wire, shielding and outer sheath composition. After the industrial heating system is energized, the heating wire generates heat and runs at a temperature between 40 and 60 degrees. The industrial heating system embedded in the filling layer will be transmitted to the heating body through heat conduction and far-infrared radiation. Twin conductor industrial heating system is mainly used for floor heating, soil heating, snow melting , livestock breeding.
Installation Steps
Technical Parameter
|
TXLP/1single conductor industrial heating system 220V 18.5W/M
|
Power(W) |
Type |
Voltage(V) |
Standard Length(m) |
Power /Per Meter(W/M) |
Resistance(Ω) |
3150 |
TXLP/1/18.5 |
220 |
170.3 |
18.5 |
15.4 |
|
3000 |
TXLP/1/18.5 |
220 |
162 |
18.5 |
16.1 |
|
2800 |
TXLP/1/18.5 |
220 |
151.4 |
18.5 |
17.3 |
|
2600 |
TXLP/1/18.5 |
220 |
140.5 |
18.5 |
18.6 |
|
2400 |
TXLP/1/18.5 |
220 |
129.7 |
18.5 |
20.2 |
|
2200 |
TXLP/1/18.5 |
220 |
118.9 |
18.5 |
22.0 |
|
2000 |
TXLP/1/18.5 |
220 |
108.1 |
18.5 |
24.2 |
|
1760 |
TXLP/1/18.5 |
220 |
95.1 |
18.5 |
27.5 |
|
1600 |
TXLP/1/18.5 |
220 |
86.5 |
18.5 |
30.3 |
|
1400 |
TXLP/1/18.5 |
220 |
75.7 |
18.5 |
34.6 |
|
1200 |
TXLP/1/18.5 |
220 |
64.9 |
18.5 |
40.3 |
|
1000 |
TXLP/1/18.5 |
220 |
54.1 |
18.5 |
48.4 |
|
850 |
TXLP/1/18.5 |
220 |
45.9 |
18.5 |
56.9 |
|
700 |
TXLP/1/18.5 |
220 |
37.8 |
18.5 |
69.1 |
|
600 |
TXLP/1/18.5 |
220 |
32.4 |
18.5 |
80.7 |
|
500 |
TXLP/1/18.5 |
220 |
27.0 |
18.5 |
96.8 |
|
400 |
TXLP/1/18.5 |
220 |
21.8 |
18.5 |
121.0 |
|
300 |
TXLP/1/18.5 |
220 |
16.2 |
18.5 |
161.3 |
|
TXLP/2twin conductor industrial heating system 220V 17W/M
|
Power(W) |
Type | Voltage(V) |
Standard Length(M) |
Power /Per Meter(W/M) |
Resistance(Ω) |
3300 |
TXLP/2/17 |
220 |
194.1 |
17 |
14.7 |
|
2800 |
TXLP/2/17 |
220 |
164.7 |
17 |
17.3 |
|
2600 |
TXLP/2/17 |
220 |
152.9 |
17 |
18.6 |
|
2400 |
TXLP/2/17 |
220 |
141 |
17 |
20.2 |
|
2100 |
TXLP/2/17 |
220 |
123.5 |
17 |
23.0 |
|
1700 |
TXLP/2/17 |
220 |
100.0 |
17 |
28.6 |
|
1370 |
TXLP/2/17 |
220 |
80.6 |
17 |
35.3 |
|
1250 |
TXLP/2/17 |
220 |
73.5 |
17 |
38.7 |
|
1000 |
TXLP/2/17 |
220 |
58.8 |
17 |
48.4 |
|
840 |
TXLP/2/17 |
220 |
49.4 |
17 |
57.6 |
|
700 |
TXLP/2/17 |
220 |
41.2 |
17 |
68.1 |
|
600 |
TXLP/2/17 |
220 |
35.3 |
17 |
80.7 |
|
500 |
TXLP/2/17 |
220 |
29.4 |
17 |
96.8 |
|
400 |
TXLP/2/17 |
220 |
23.5 |
17 |
121.0 |
|
300 |
TXLP/2/17 |
220 |
17.6 |
17 |
161.3 |
Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
What's the Minimum Order Quantity?
MOQ for heating mat is 500sq. m.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.
Can I place a sample order first?
Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.
What is your delivery time?
Normally within 7~15 days, big order should be negotiated.
What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
What is warranty of your product?
25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.
Can you do OEM and ODM for us?
Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.
How to control quality?
1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.
