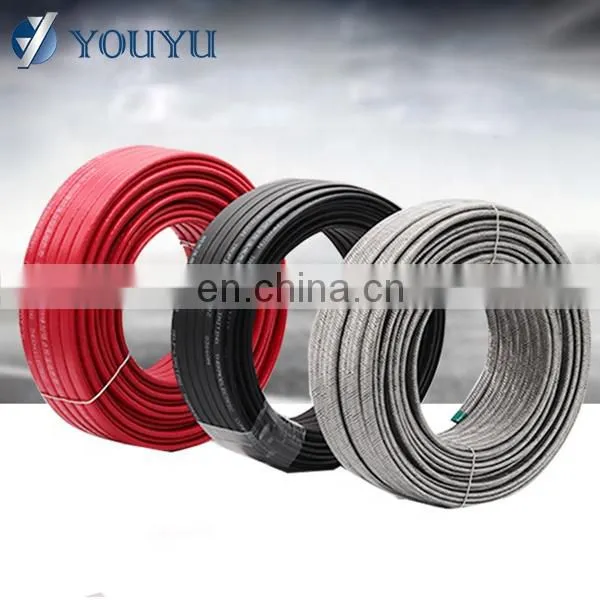

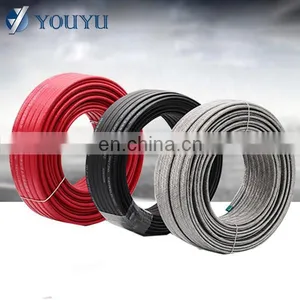

The Cheapest model electric heater pipe heat tracing cable
Product Introduction
Electric self-regulating temperature heating cable is the only one of electric thermostatic product of new generation, constructed of a semiconductor heater and two parallel bus wires with the addition of insulation layer. The heating elements are parallel to each other and its resistivity has a high Positive Temperature Coefficient” PTC”.
In each heating tracing band, circuits between the bus wires change with the ambient temperature. As temperature decreases, the heater’s resistance decreases which produces more output wattage; conversely, as temperature increases, resistance increases which lower the output wattage, loop back and forth.
The advantage of electric self-regulating temperature heating cable with other heating tracing products is that the temperature can be regulated automatically in a proper range.
Product Dispaly
1.Tinned copper wires
2.Self-regulating conductive core
3.Thermoplastic insulation
4.Metal braid
5.Thermoplastic jacket
Product Application
self-regulating heating cable
self-regulating heating cable widely used in petroleum, chemical, steel, electricity and other fields.For industrial
pipelines, storage tanks and equipment with temperature control, heating, antifreezing.It’s applies to common areas,
dangerous areas, corrosive areas, explosion-proof areas and other complex environment.
Technical Parameter
Type |
Power (W/M 10℃) |
Max maintain temp(℃) |
Max. exposure temp(℃) |
Min. installation temp(℃) |
Max. length of single power supply
|
Low temperature series |
10,15,25,35 |
70℃±5℃ |
105℃ |
-60℃ |
7*0.5 100meters; 19*0.32 120meters. |
Medium temperature series |
35,45,50,60 |
105 ℃ ± 5 ℃ |
135℃ |
-40℃ |
7*0.5 100meters; 19*0.32 120meters |
High temperature series |
35,50,60 |
135 ℃ ± 5 ℃ |
155℃ |
-30℃ |
7*0.5 100meters; 19*0.32 120meters |
| 1. How much electricity is consumed per hour? |
| Consider an average room size of 100m2 . The heated area is approximately 80%, or 80m2 . |
| In the case of the 150W mats, when the heater is ON, the hourly consumption is 1500W times 80m2. |
| When the recommended thermostat is turned on, take 100m2 as an example. The room is filled with heat about 20min~30min, which is between 450W and 750W. Of course, the specific cost depends on your electricity consumption and electricity unit price. |
| 2. Do I use insulation materials? |
| We recommend that you use insulation materials. On the one hand, it is for your safety considerations, on the other hand, because it can lock the heat, the preheating will be faster, and the power consumption will be reduced. |
| 3. Is it safe to use in a humid place? |
| Yes, our products are of high quality and have a grounding wire. |
| 4. How long is the warranty time? |
| 25 years for heating cable & heating mat. |
| 2 years for for constant wattage/self-regulating heating cable and thermostats. |
| 5. Can I crop it? |
| Yes, you can crop the grid. |
| 6. What is the thickness of the cable? |
| The cable is 3.5mm thick. |
