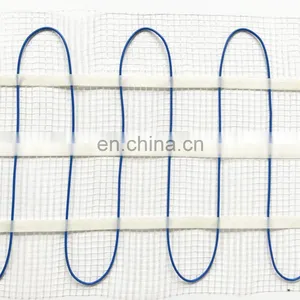

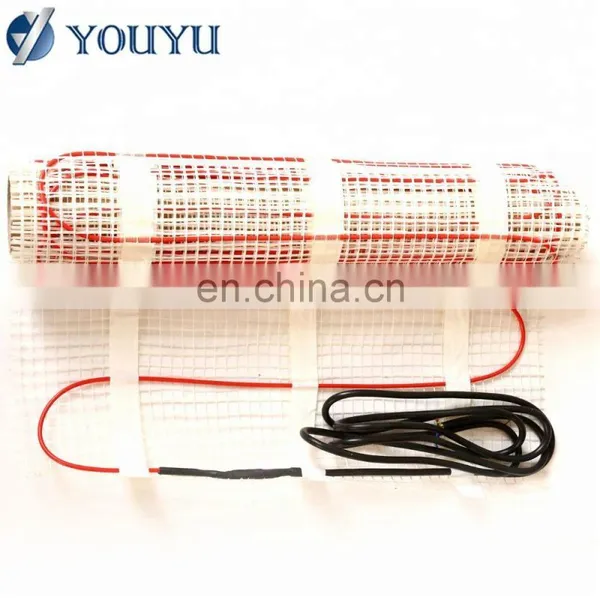

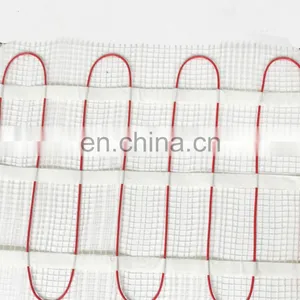

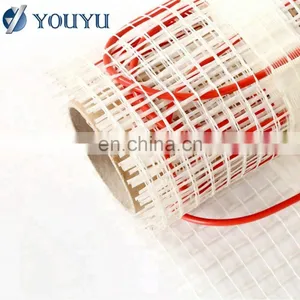

Underfloor Heating Electric Heating Mat
| Voltage | 220V |
| Power | 150w/m2 |
| Heating Conductor | Alloy Wire |
| Insulation | FEP |
| Shield | Aluminum foil + Copper wire |
| Outer Sheath | PVC |
| Max. Surface Temperature | 70℃ |
| Max. Withstand Temperature | 120℃ |
Indoor Underfloor Heating Mat
Heating mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo. It is installed with tile adhesive and has almost no effect on the ground elevation. Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground. In addition, the thin, pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fast heating system is the best choice for home. Heating mat used for overall heating, comfortable heating, wall heating, Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor bathroom floor electric warm feet mat and twin conductor bathroom floor electric warm feet mat.
Structure |
Single conductor heating mat |
Twin conductor heating mat |
Glass net |
10*10mm 300 g/square meter Back double-sided tape |
10*10mm 300 g/square meter Back double-sided tape |
Thickness |
4-4.5mm |
3-5.5mm |
Power output |
100w/square meter,150 w/square meter |
150 w/square meter |
Rated voltage |
220v(Customized) |
220v(Customized ) |
Length |
2*2m |
1*2m |
Cable construction |
single conductor |
twin conductor |
Outside diameter |
2.5mm |
3mm |
Insulation |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
Conductor |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
Shield |
Aluminum foil + copper wire |
Aluminum foil + copper wire |
Max. Ambient Temp |
120 ℃ |
120 ℃ |
Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
What's the Minimum Order Quantity?
MOQ for heating mat is 500sq. m.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.
Can I place a sample order first?
Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.
What is your delivery time?
Normally within 7~15 days, big order should be negotiated.
What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
What is warranty of your product?
25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.
Can you do OEM and ODM for us?
Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.
How to control quality?
1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.
